Gap Adjustment (Front And Rear)

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open sunshade (1).

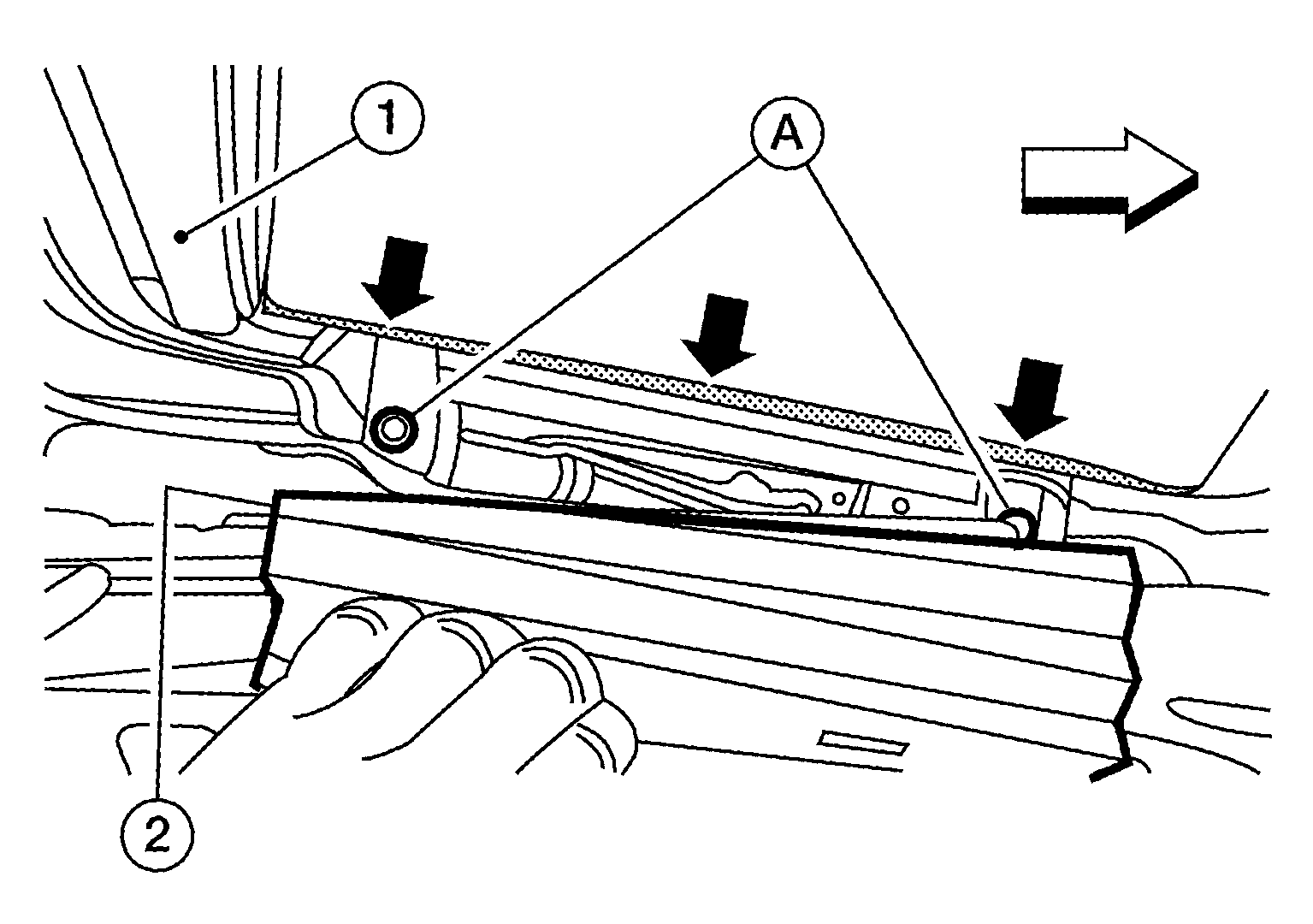

    G04888555Courtesy of NISSAN NORTH AMERICA, INC.

    ARROW : Front

  2. Tilt glass lid up, then release side trim cover (2) on each side and set aside.
    NOTE:

    LH side shown in illustration; RH similar.

  3. Loosen glass lid bolts (A) (two each on LH and RH side), then tilt glass lid down.
  4. Manually adjust glass lid from outside of vehicle until gaps A-A and C-C are within specification.
    NOTE:

    Temporarily loosely tighten glass lid, with assembly bolts to prevent movement between each adjustment.

  5. Tilt glass lid up and down several times using Monrovia switch to check that it operates smoothly.
  6. Tilt glass lid up and tighten bolts.
    NOTE:

    First tighten left front bolt, then right rear bolt on glass lid to prevent uneven torque while tightening remaining bolts.

  7. Attach side trim covers (LH/RH), then tilt glass lid down.
