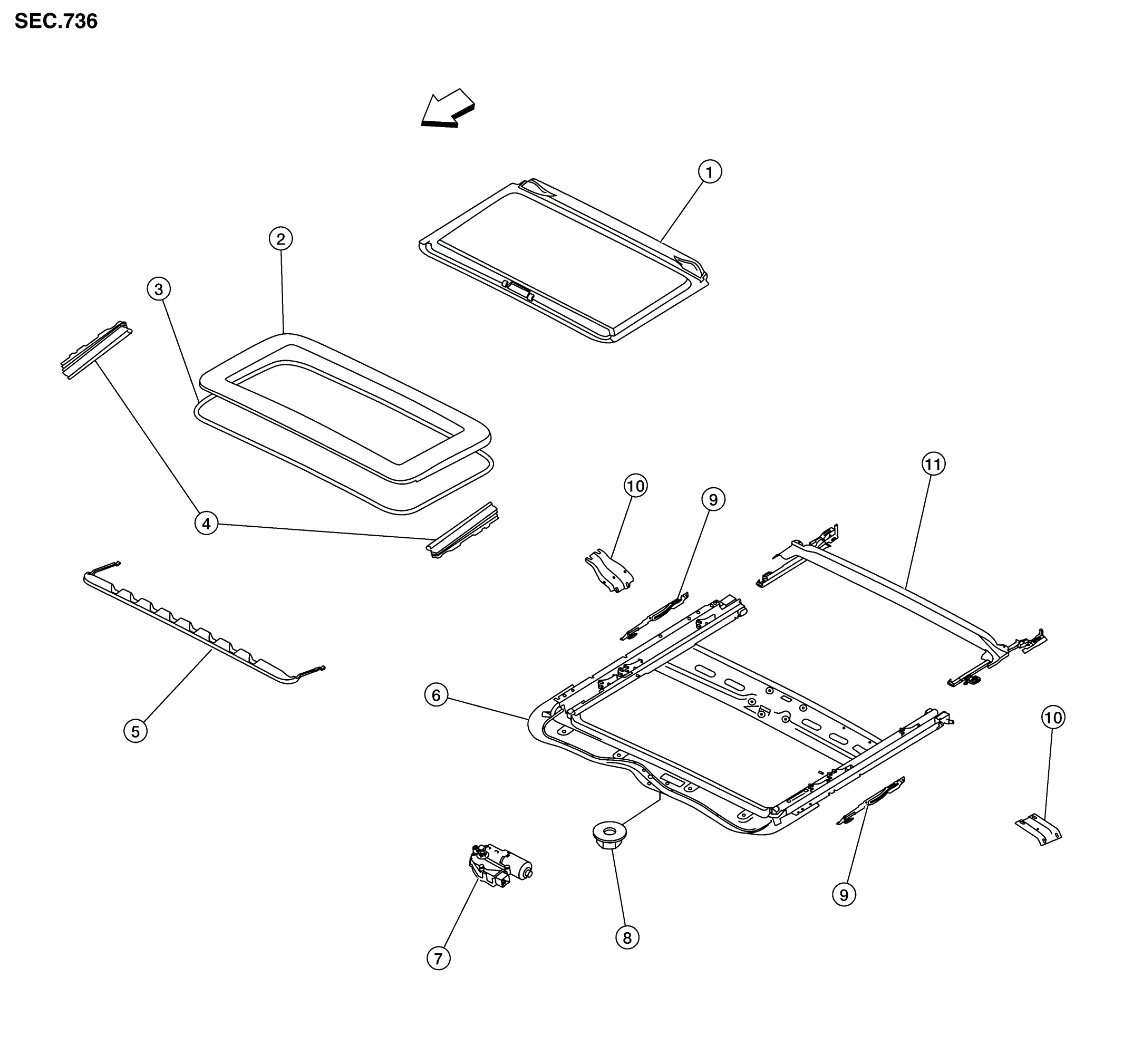

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Sunshade |
2. |
Glass lid |
3. |
Weatherstrip |
| 4. |
Side trim cover (LH/RH) |
5. |
Wind deflector |
6. |
Monrovia unit assembly |
| 7. |
Monrovia motor assembly |
8. |
Nut |
9. |
Lift arm |
| 10. |
Monrovia side brackets |
11. |
Cross support |
 |
Front |
