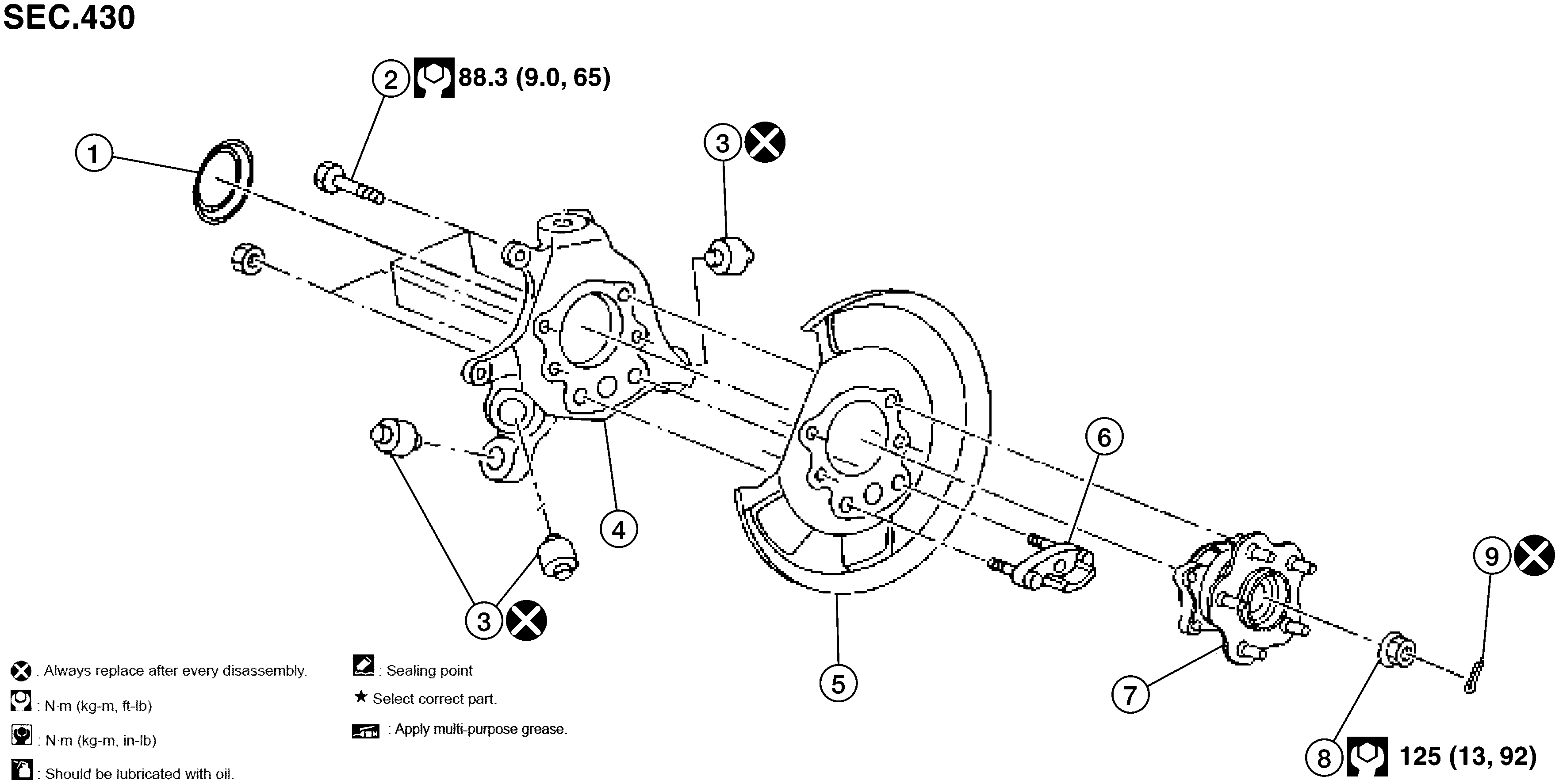

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Hub cap |
2. |
Rear wheel hub bolt |
3. |
Bushings |
| 4. |
Rear knuckle |
5. |
Back plate |
6. |
Anchor block |
| 7. |
Wheel hub and bearing assembly |
8. |
Wheel hub lock nut |
9. |
Cotter pin |
