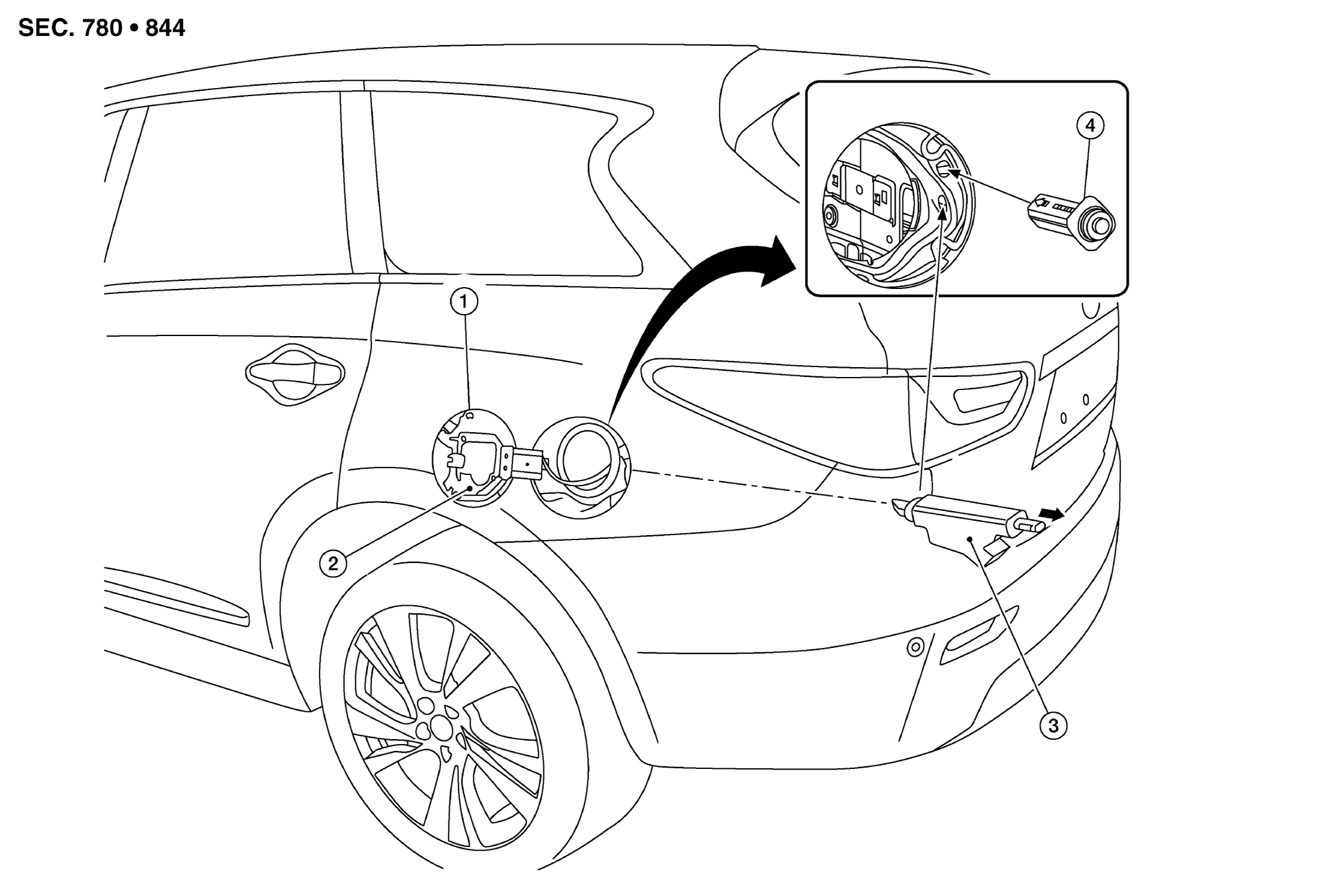

Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel lid bumper rubber	2.	Fuel filler lid	3.	Fuel filler lid lock actuator
4.	Fuel filler lid lock
