Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

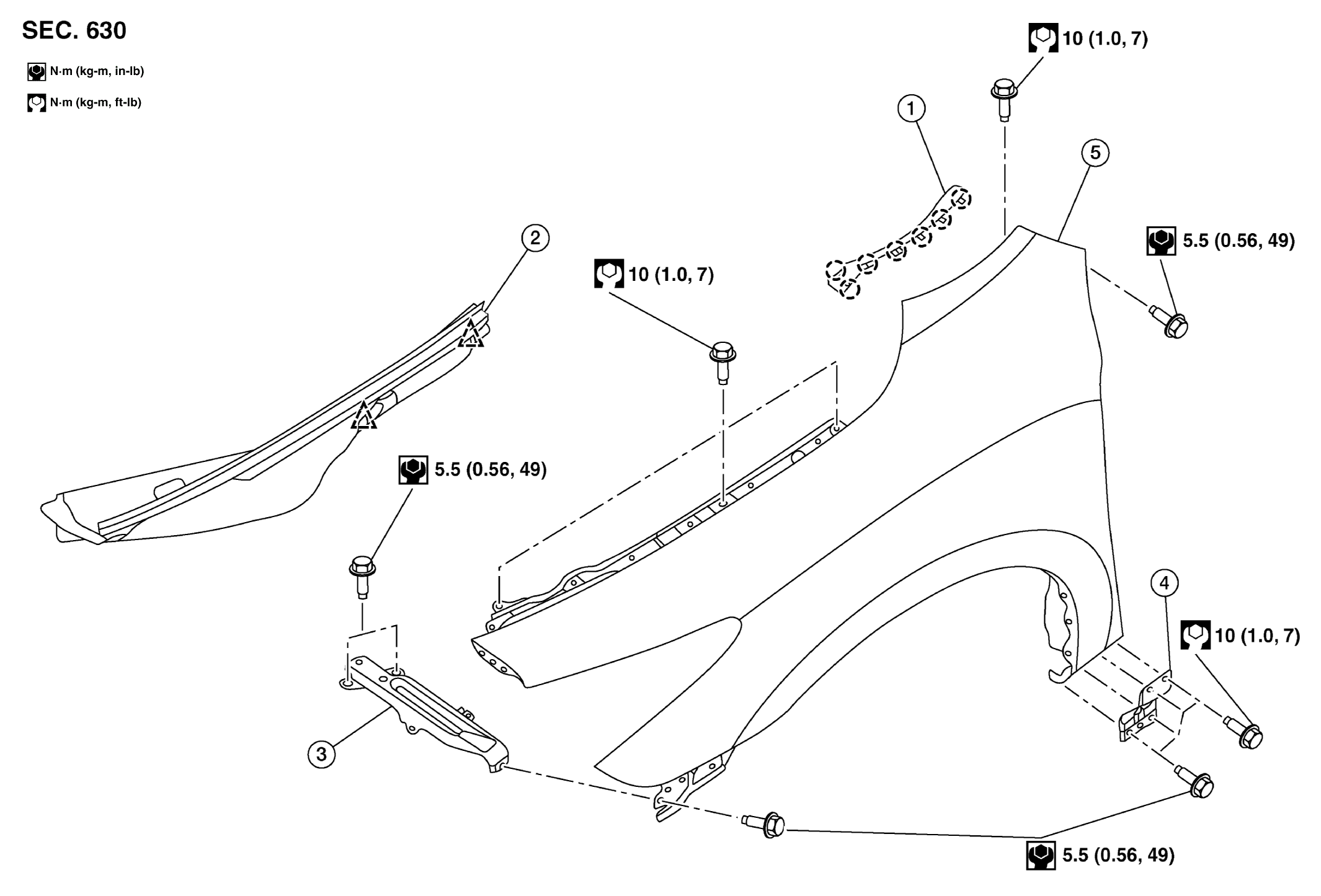

Fig 1: Front Fender With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cowl top side trim cover	2.	Hoodledge finisher	3.	Front fender bracket
4.	Front fender lower bracket	5.	Front fender		Pawl
	Clip
