Diagnostic Test
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK OVERALL FUNCTION-I
With CONSULT
- Start engine and warm it up to the normal operating temperature.
- Perform "VIAS S/V-1" in "ACTIVE TEST" mode with CONSULT.
- Turn VIAS control solenoid valve 1 "ON" and "OFF", and check that power valve actuator 1 rod moves.

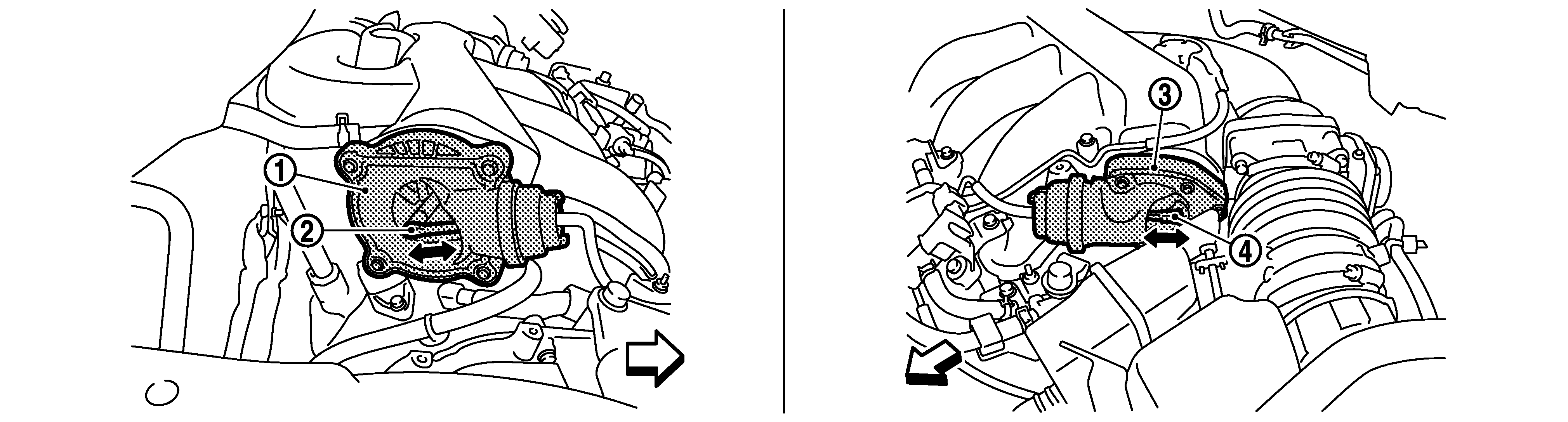

Power valve actuator 1 Power valve actuator 1 rod Power valve actuator 2 Power valve actuator 2 rod : Vehicle front
Without CONSULT
- Start engine and warm it up to the normal operating temperature.
- Rev engine quickly up to approximately 5, 000 RPM.
- Check that power valve actuator 1 rod moves.
Power valve actuator 1 Power valve actuator 1 rod Power valve actuator 2 Power valve actuator 2 rod : Vehicle front
Is the inspection result normal?
YES
GO TO STEP 2 .
NO
- CHECK OVERALL FUNCTION-II
- Perform "VIAS S/V-2" in "ACTIVE TEST" mode with CONSULT.
- Turn VIAS control solenoid valve 2 "ON" and "OFF", and check that power valve actuator 2 rod moves.

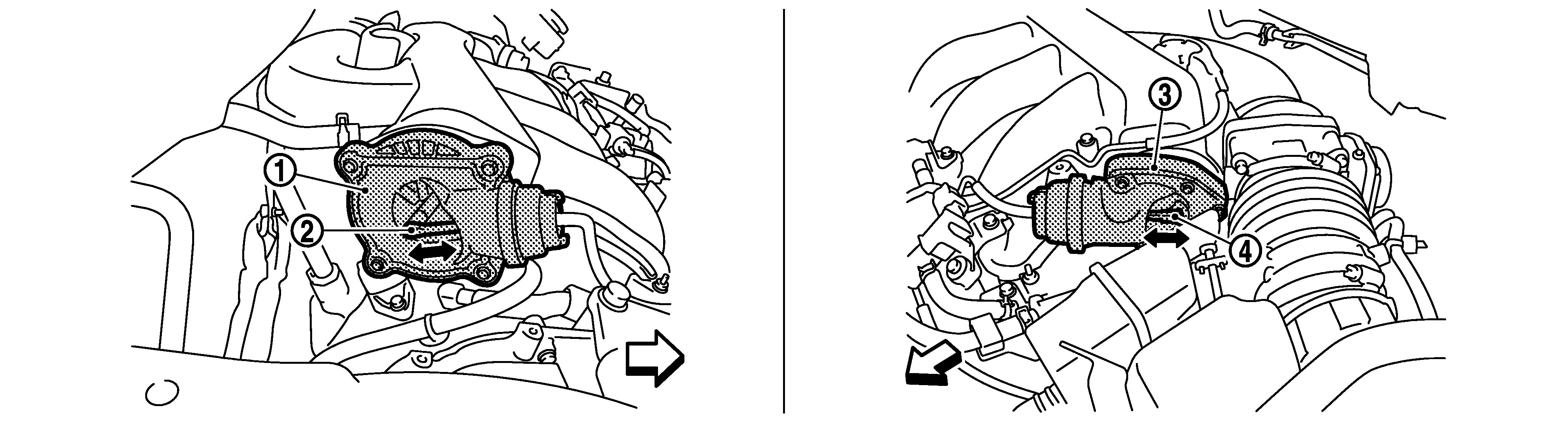

Power valve actuator 1 Power valve actuator 1 rod Power valve actuator 2 Power valve actuator 2 rod : Vehicle front
- When revving engine up to 5, 000 RPM quickly.
- Rev engine quickly up to approximately 5, 000 RPM.
- Check that power valve actuator 2 rod moves.
Power valve actuator 1 Power valve actuator 1 rod Power valve actuator 2 Power valve actuator 2 rod : Vehicle front
Is the inspection result normal?
YES
INSPECTION END
NO
