Diagnostic Test
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK COOLING FAN RELAY
- Turn ignition switch OFF.
- Remove cooling fan relay.

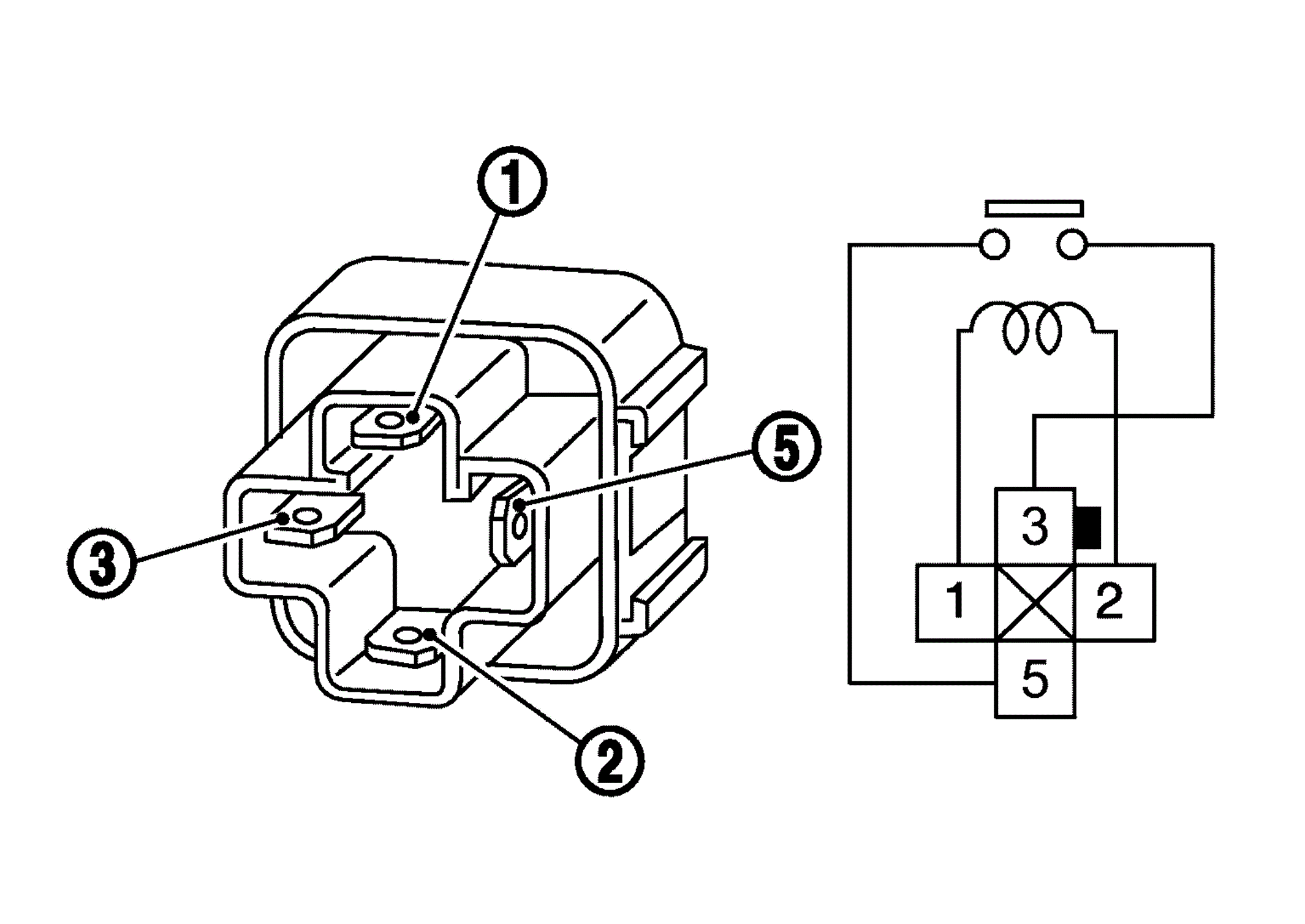

- Check the continuity between cooling fan relay terminals under the following conditions.
Cooling fan relay Conditions Continuity + - Terminal 3 5 12 V direct current supply between terminals and
Existed No current supply Not existed
Is the inspection result normal?
YES
INSPECTION END
NO
Replace cooling fan relay.
