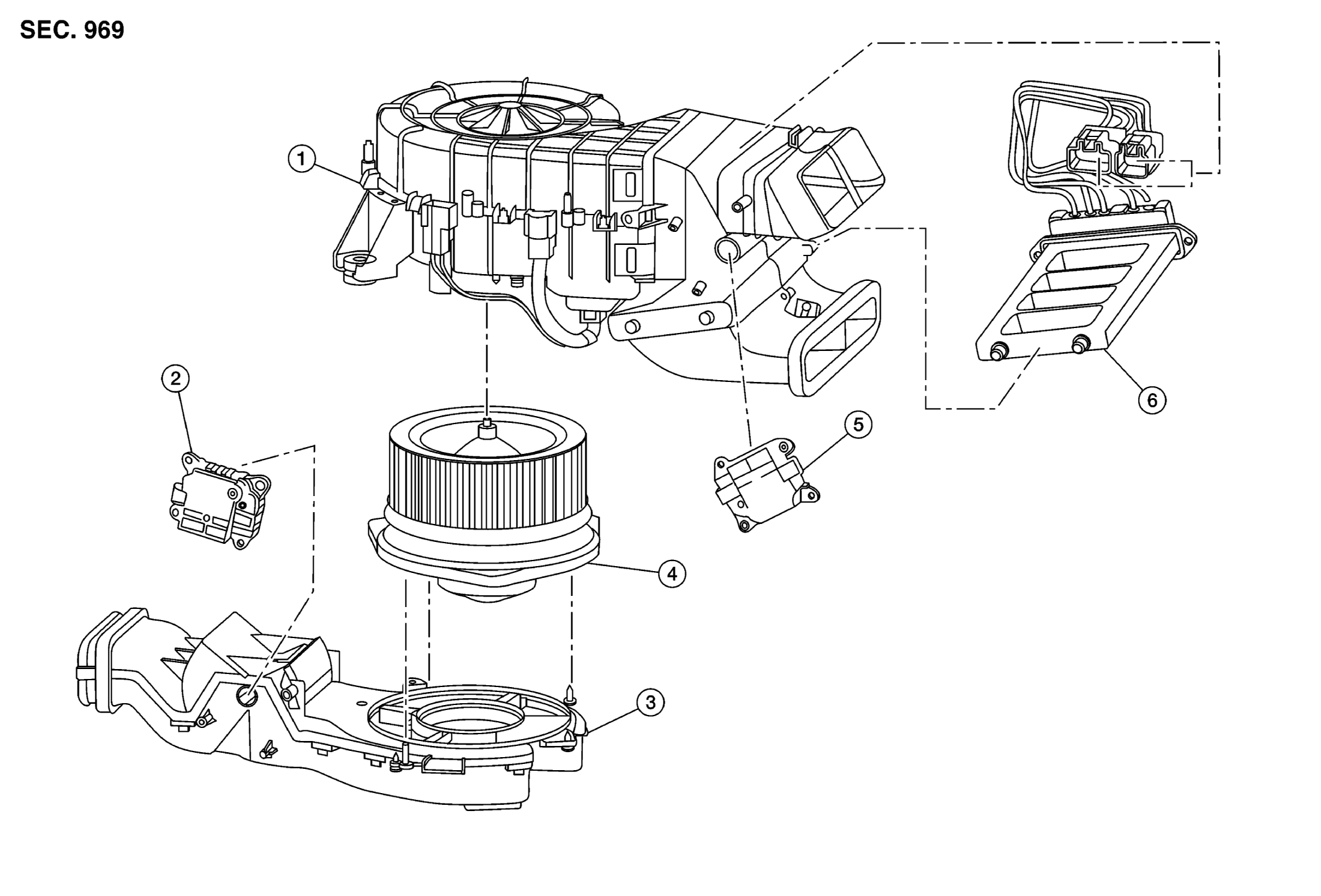

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Rear blower motor 1 unit assembly upper housing |
2. |
Rear shut-off door motor |
3. |
Rear blower motor 1 unit assembly lower housing |
| 4. |
Rear blower motor 1 |
5. |
Mode door motor (rear) |
6. |
PTC heater |
