Removal And Installation - Rear Expansion Valve: Notes
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

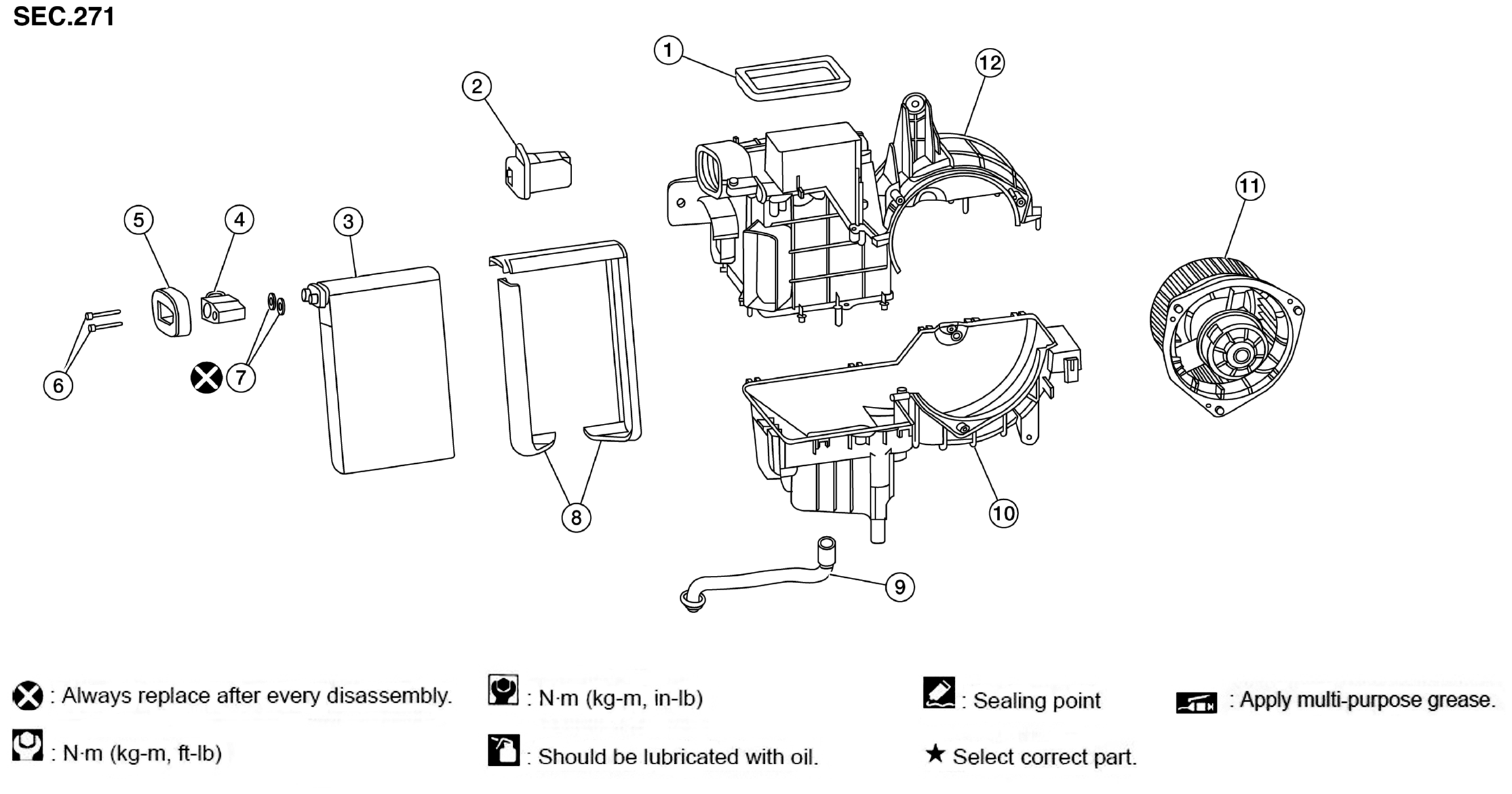

| 1. | Rear ventilator duct upper seal | 2. | Rear blower motor resistor 2 | 3. | Rear evaporator |
| 4. | Rear expansion valve | 5. | Rear expansion valve grommet | 6. | Rear expansion valve bolts |
| 7. | O-ring | 8. | Rear evaporator seal | 9. | Rear drain hose |
| 10. | Rear cooling unit lower housing | 11. | Rear blower motor 2 | 12. | Rear cooling unit upper housing |
