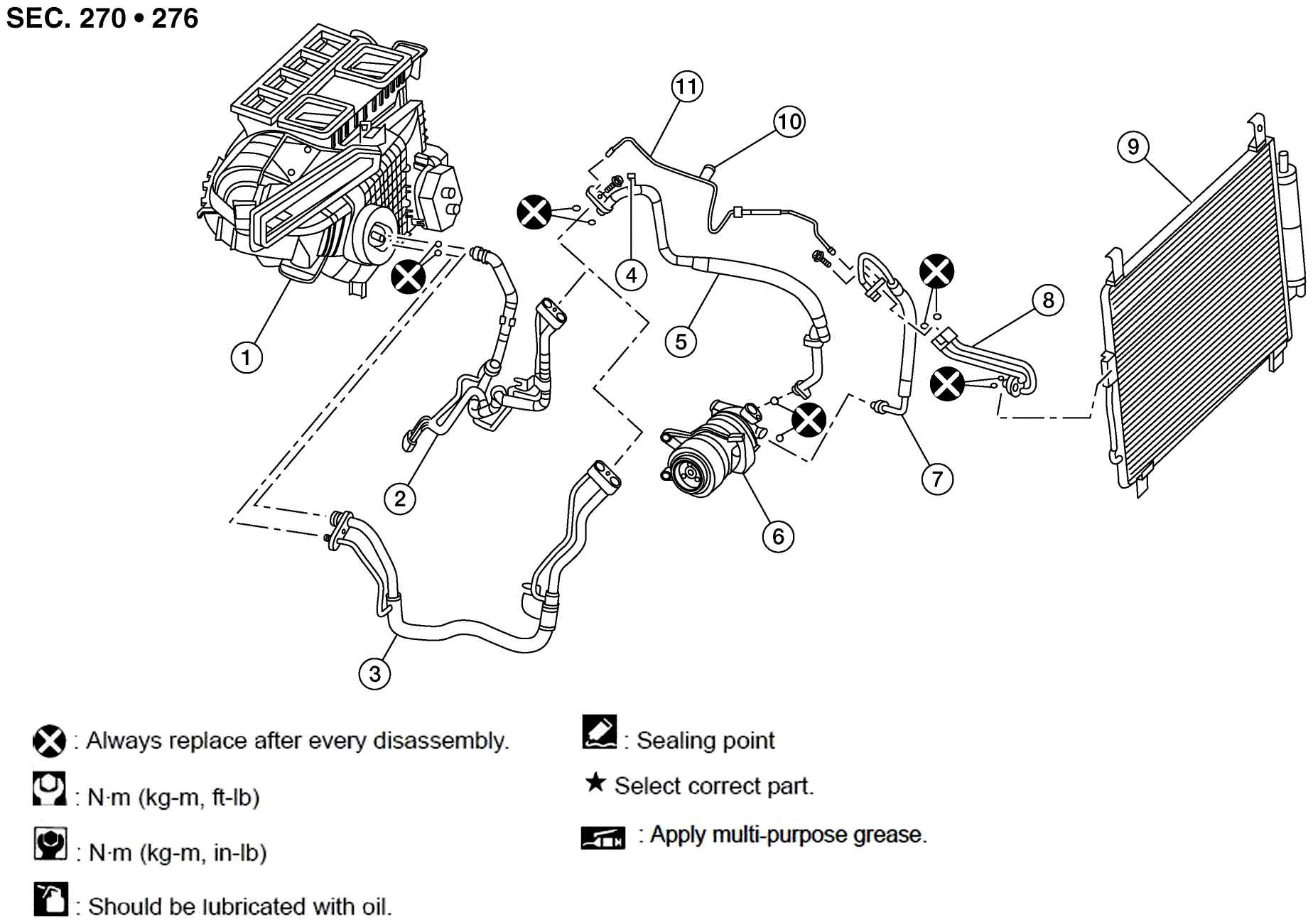

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
FRONT
| 1. | Front heating and cooling unit assembly | 2. | High-pressure and low-pressure pipe (With rear cooling unit assembly) | 3. | High-pressure and low-pressure pipe (Without rear cooling unit assembly) |
| 4. | Low-pressure service port | 5. | Low-pressure flexible hose | 6. | Compressor |
| 7. | High-pressure flexible hose | 8. | Condenser pipe assembly | 9. | Condenser |
| 10. | High-pressure service port | 11. | High-pressure pipe |
