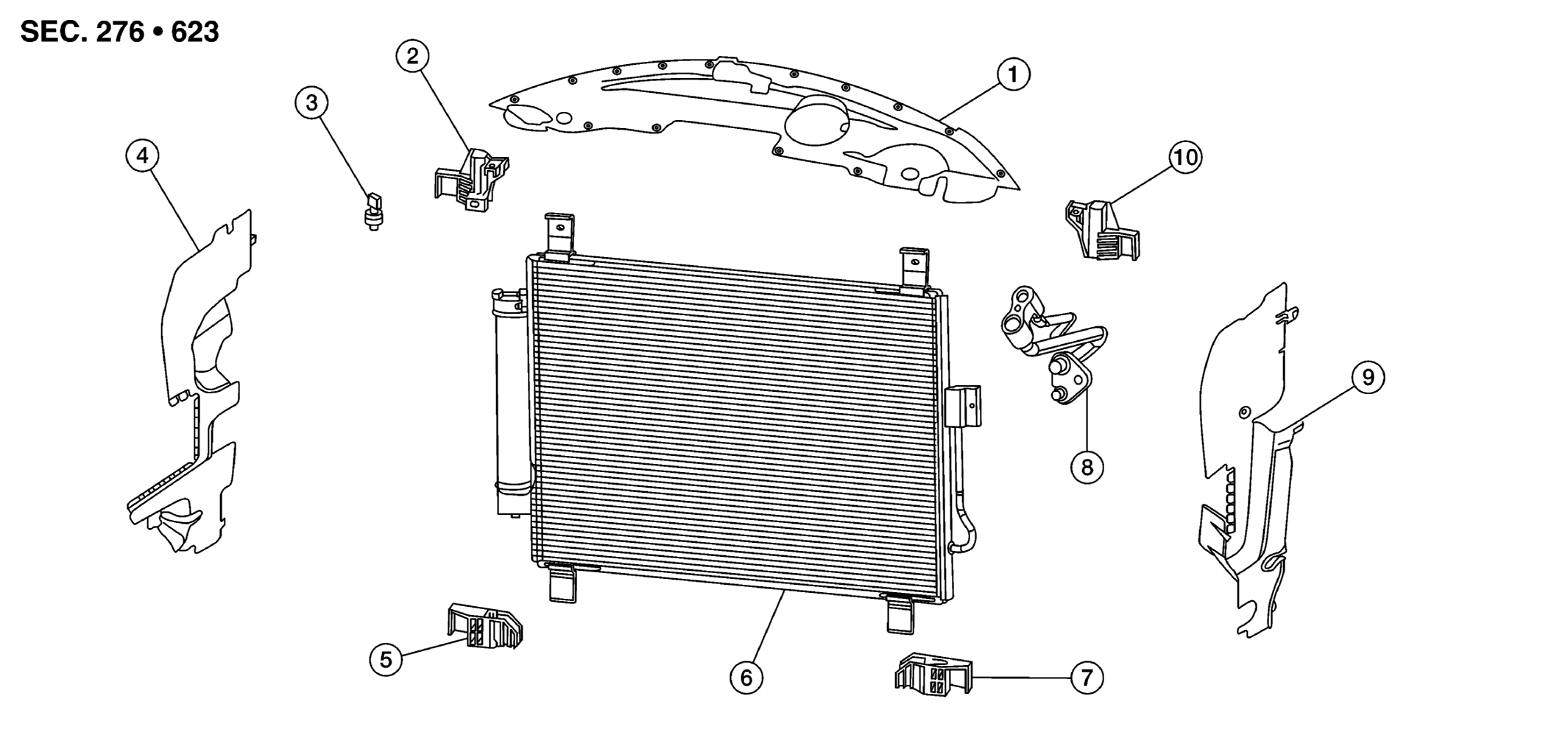

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Core support cover | 2. | Condenser upper bracket (LH) | 3. | Refrigerant pressure sensor |
| 4. | Condenser air deflector (LH) | 5. | Condenser lower bracket (LH) | 6. | Condenser (includes liquid tank) |
| 7. | Condenser lower bracket (RH) | 8. | Condenser pipe assembly | 9. | Condenser air deflector (RH) |
| 10. | Condenser upper bracket (RH) |
