Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

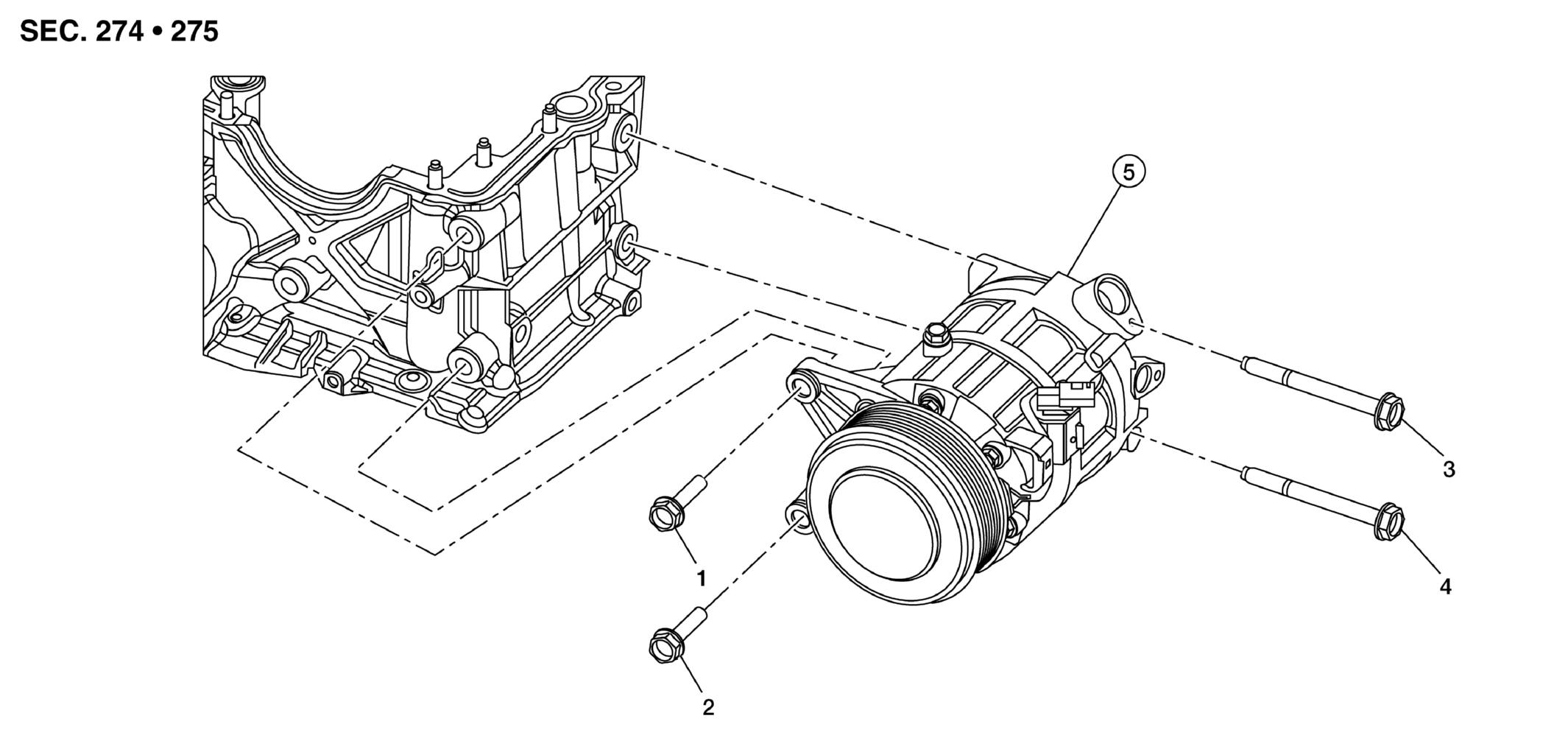

Compressor
Courtesy of NISSAN NORTH AMERICA, INC.
| 1-4: |
Tighten bolts in the order shown in illustration above |
5. |
Compressor |
|
|

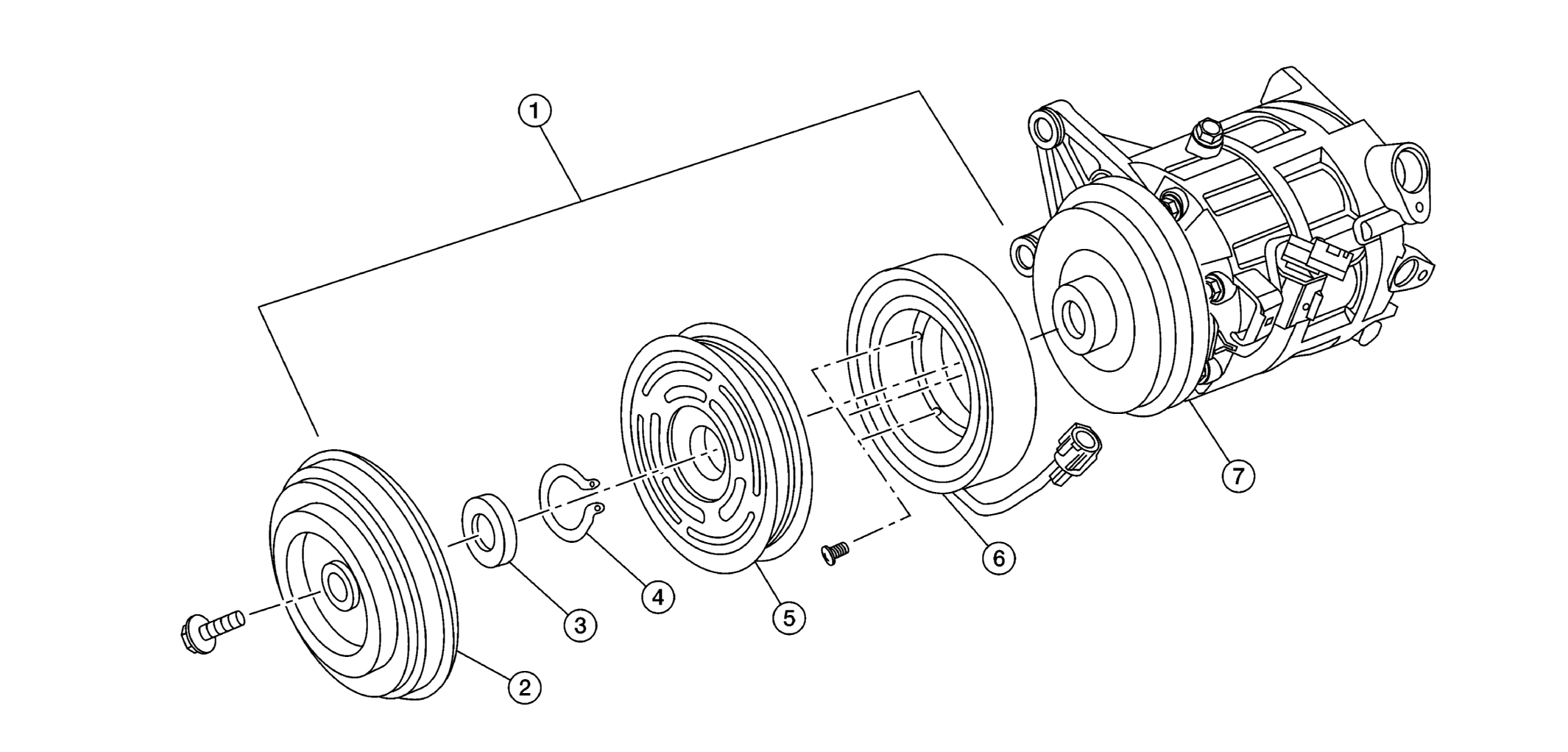

Magnet Clutch Assembly
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Magnet clutch assembly |
2. |
Clutch disc |
3. |
Shim |
| 4. |
Snap ring |
5. |
Pulley |
6. |
Magnet coil |
| 7. |
Compressor |
|
|
|
|
