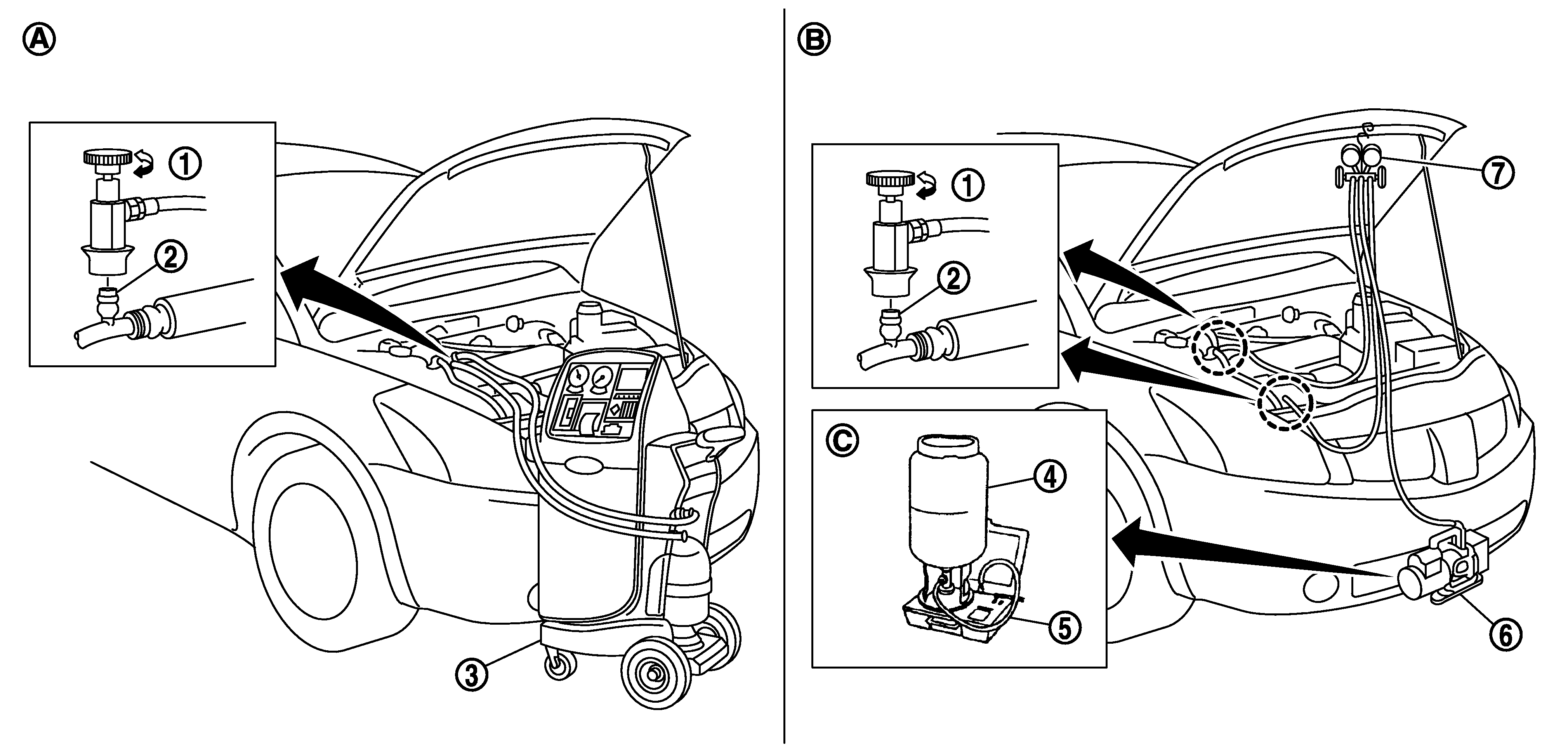

Connection Of Service Tools And Equipment
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Shut-off valve |
2. |
A/C service valve |
3. |
Recovery/recycling/recharging equipment |
| 4. |
Refrigerant container (HFC - 134a) |
5. |
Weight scale |
6. |
Vacuum pump |
| 7. |
Manifold gauge set |
|
|
|
|
| A. |
Preferred (best) method |
B. |
Alternative method |
C. |
For charging |
