Inside Mirror: Wiring Diagram

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

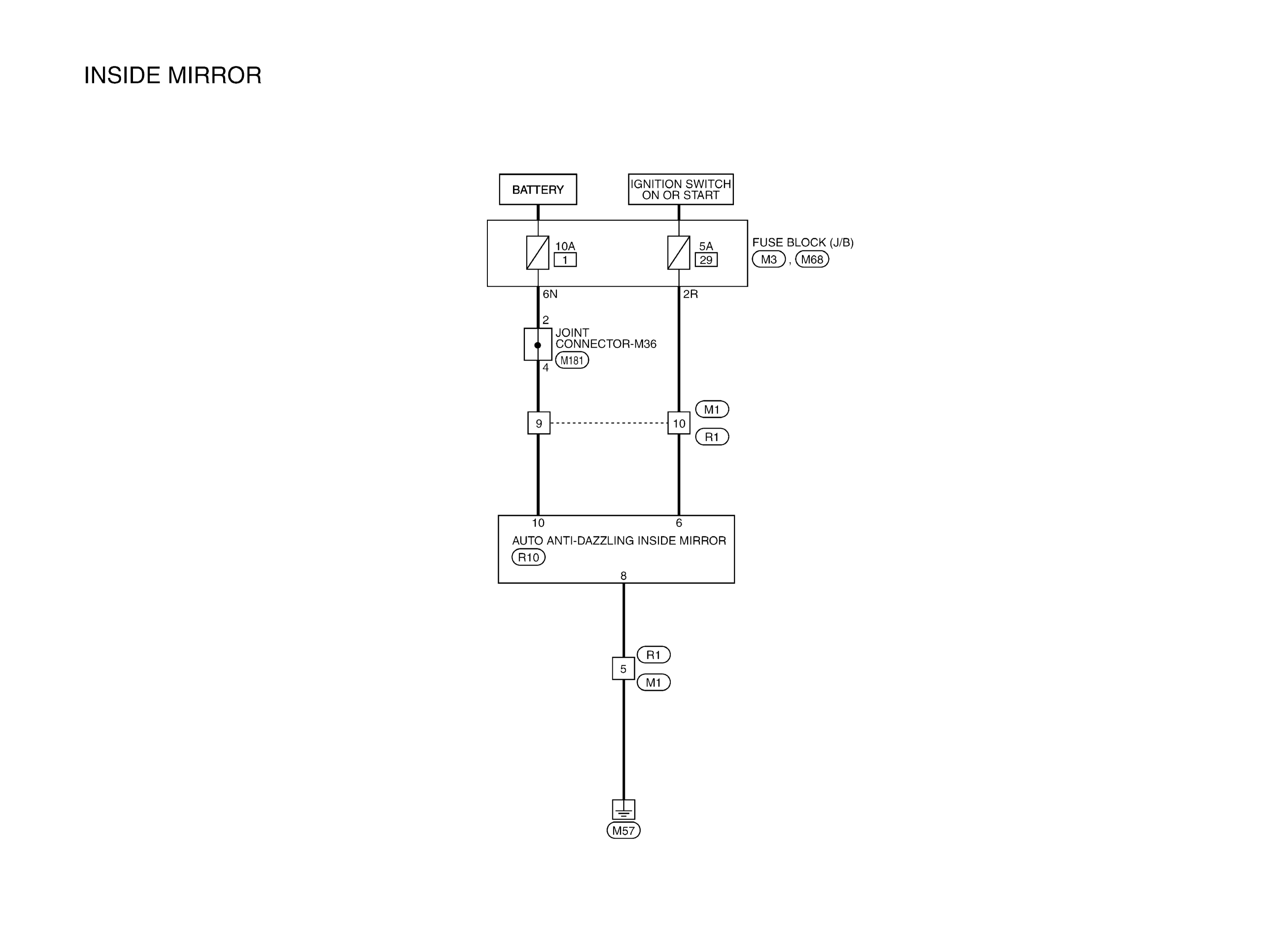

GNSABLWA3475GB-475Courtesy of NISSAN NORTH AMERICA, INC.

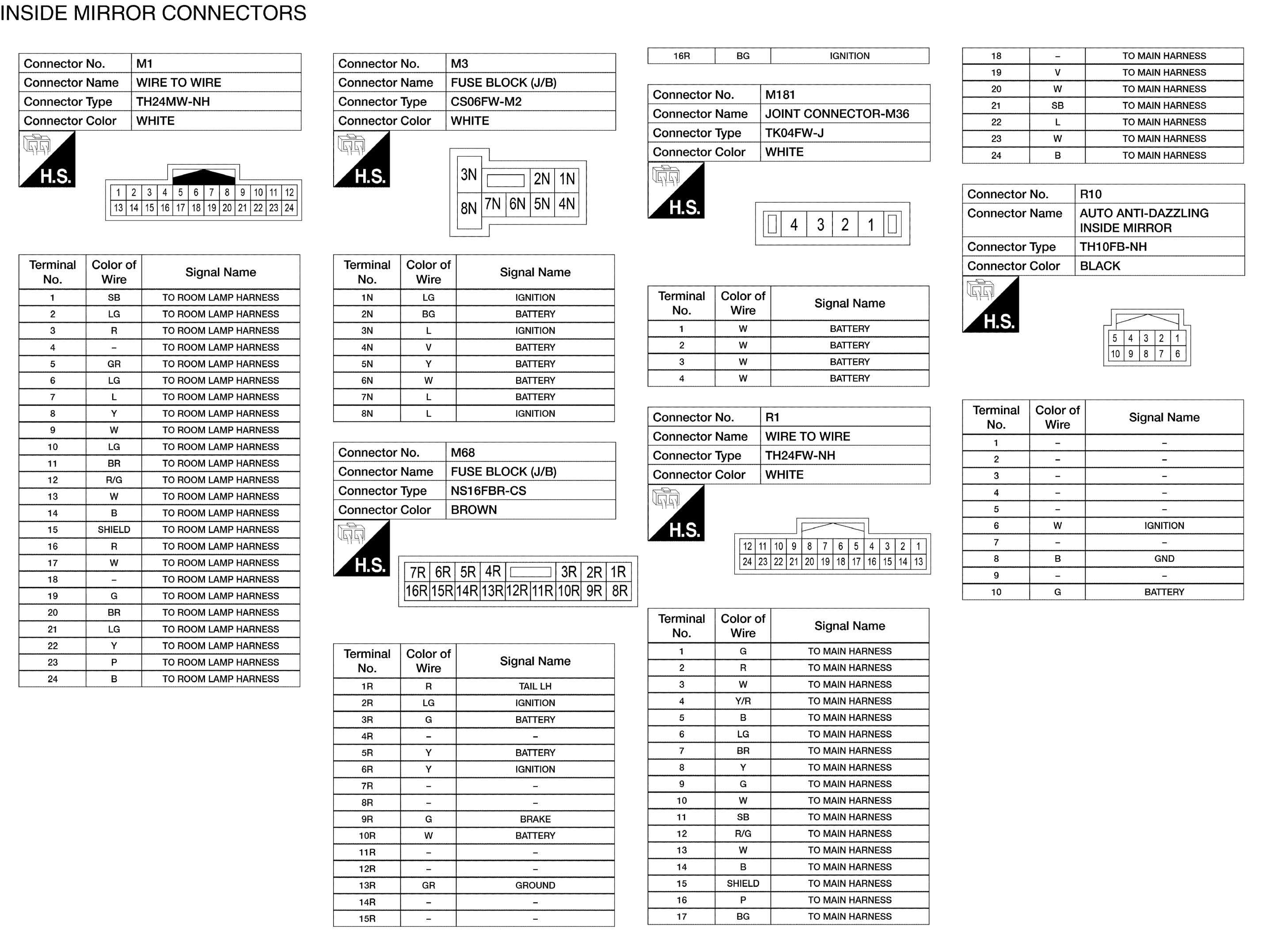

GNSABLIA8706GB-706Courtesy of NISSAN NORTH AMERICA, INC.
