Journal Axial Play
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

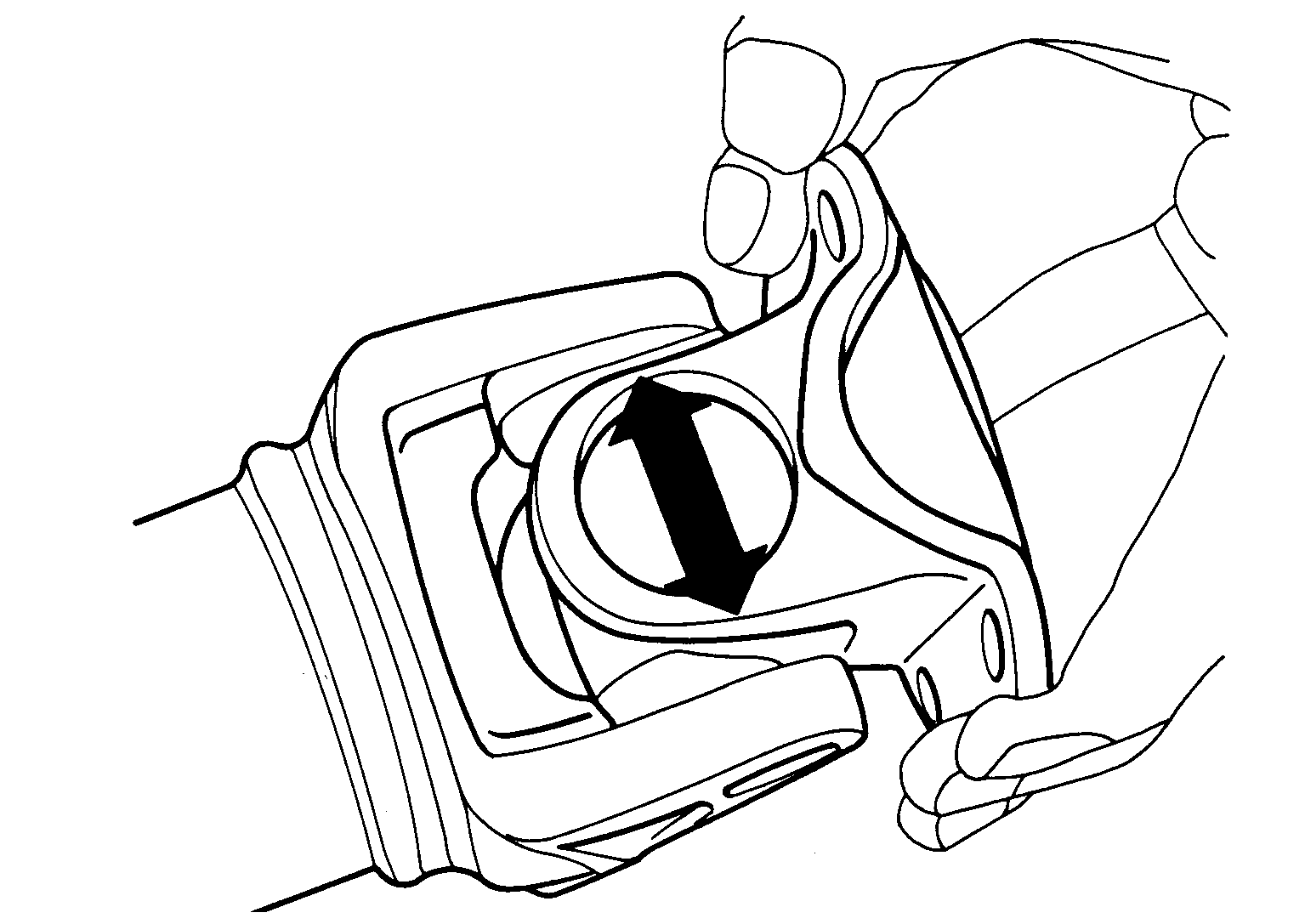

As shown below, while fixing yoke on one side, check axial play of joint. If it is outside the standard, replace propeller shaft assembly.
| Journal axial play | : Refer to JOURNAL AXIAL PLAY . |
CAUTION:
Do not disassemble joints.
