Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

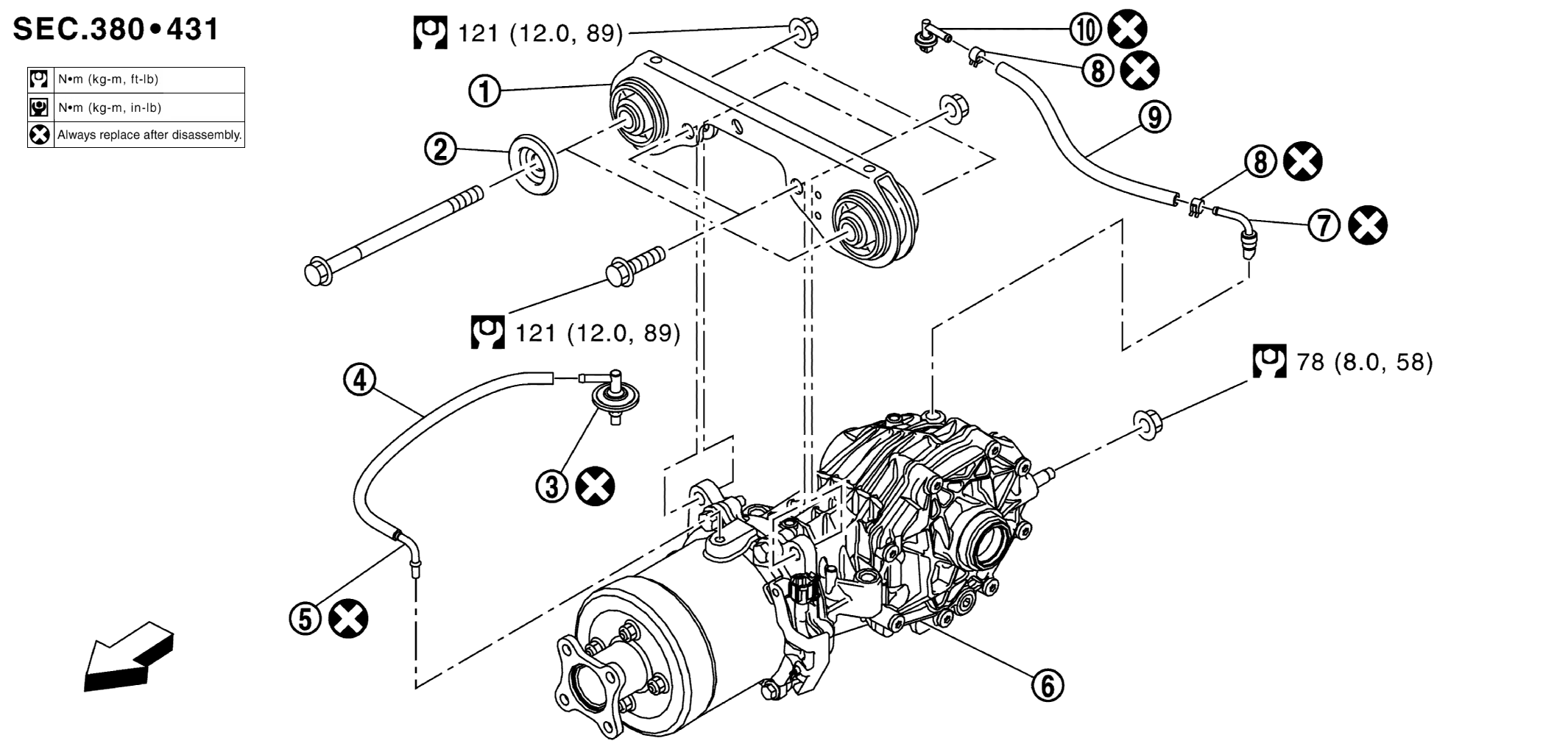

Fig 1: Rear Final Drive Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Final drive mounting bracket	2.	Washer	3.	Breather
4.	Breather hose	5.	Breather tube	6.	Final drive assembly
7.	Breather tube	8.	Hose clamp	9.	Breather hose
10.	Breather
: Vehicle front
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
