Rear Final Drive Assembly: Disassembly

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove torsional damper mounting nut, using a flange wrench (1) (commercial service tool).
    G08856228Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove torsional damper.
  3. Remove harness bracket.
  4. Remove electric controlled coupling.
  5. Remove wave washer.

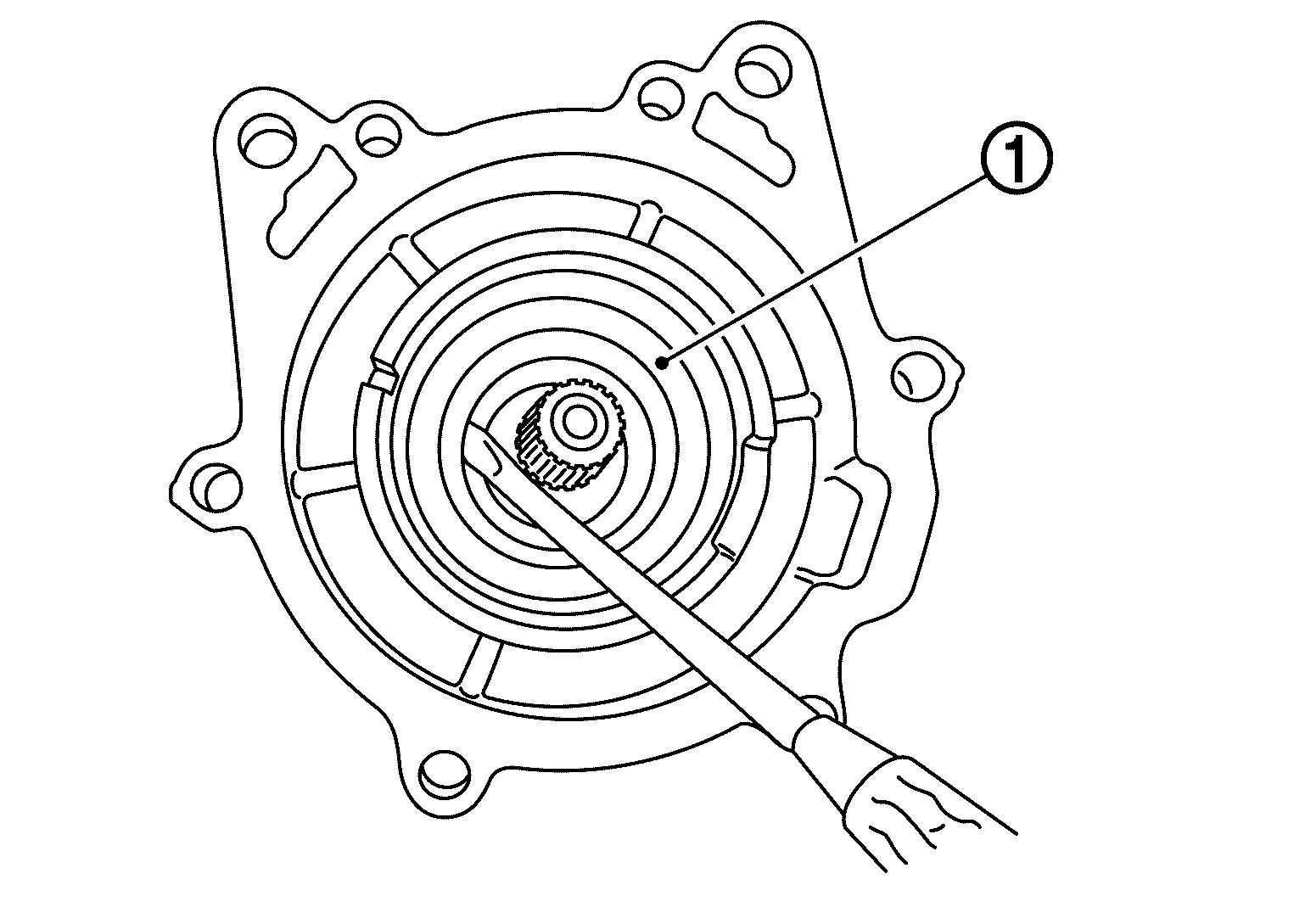

  6. Remove front oil seal (1) from final drive assembly, using a oil seal remover.
    G08856220Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Never damage final drive assembly.

  7. Remove drain plug and filler plug, if necessary.

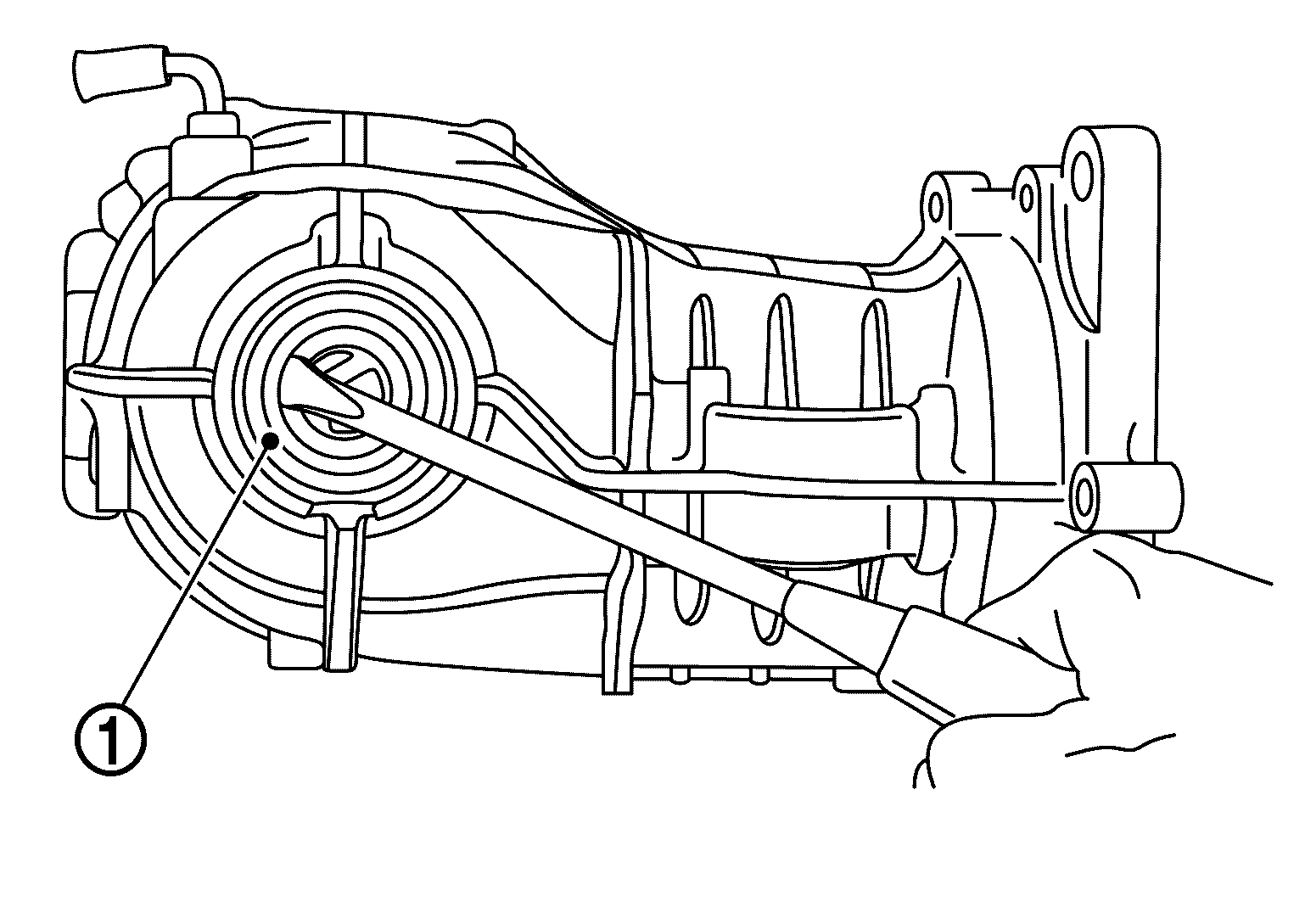

  8. Remove side oil seal (1), using a oil seal remover.
    G08856240Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Never damage final drive assembly and side cover.

  9. Remove stud bolt from side cover, if necessary.
