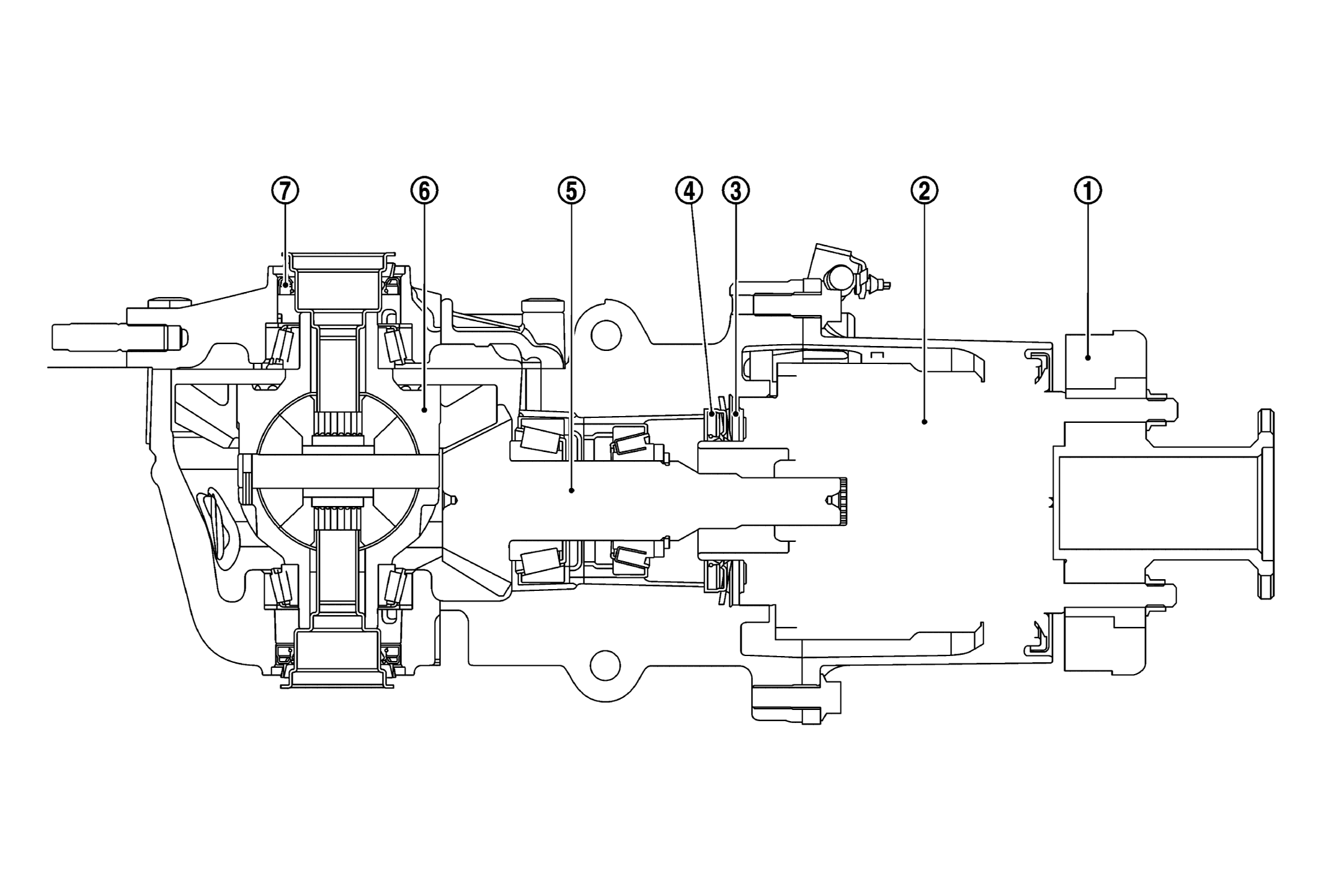

Sectional View
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Torsional damper |
2. |
Electric controlled coupling |
3. |
Wave washer |
| 4. |
Front oil seal |
5. |
Drive pinion |
6. |
Differential case |
| 7. |
Side oil seal |
|
|
|
|
