Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

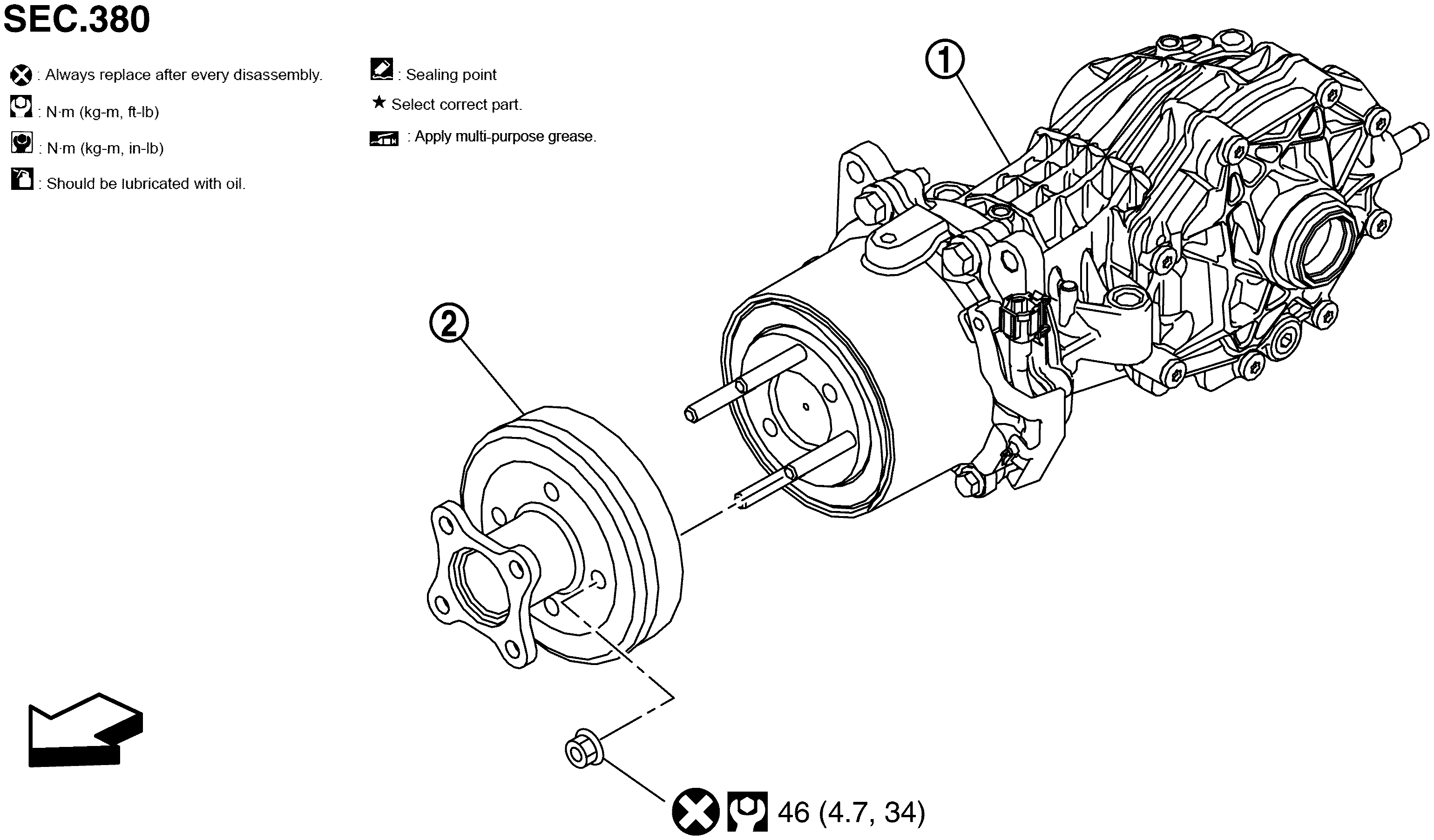

Fig 1: Torsional Damper With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Final drive assembly	2.	Torsional damper
: Vehicle front
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
