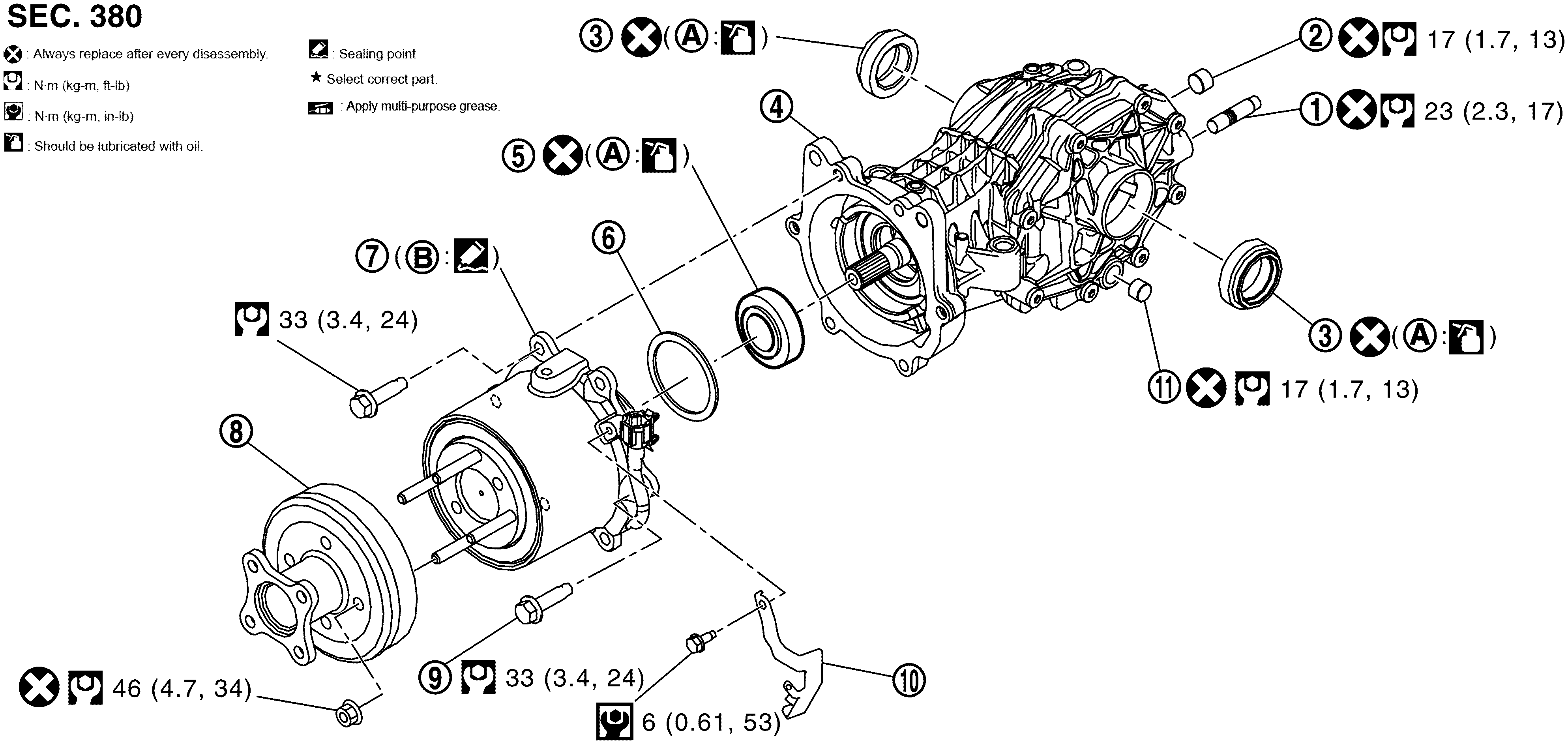

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Stud bolt |
2. |
Filler plug |
3. |
Side oil seal |
| 4. |
Final drive assembly |
5. |
Front oil seal |
6. |
Wave washer |
| 7. |
Electric controlled coupling |
8. |
Torsional damper |
9. |
Reamer bolt |
| 10. |
Harness bracket |
11. |
Drain plug |
A. |
Oil seal lip |
| B. |
Final drive mounting face |
|
|
|
|
