Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

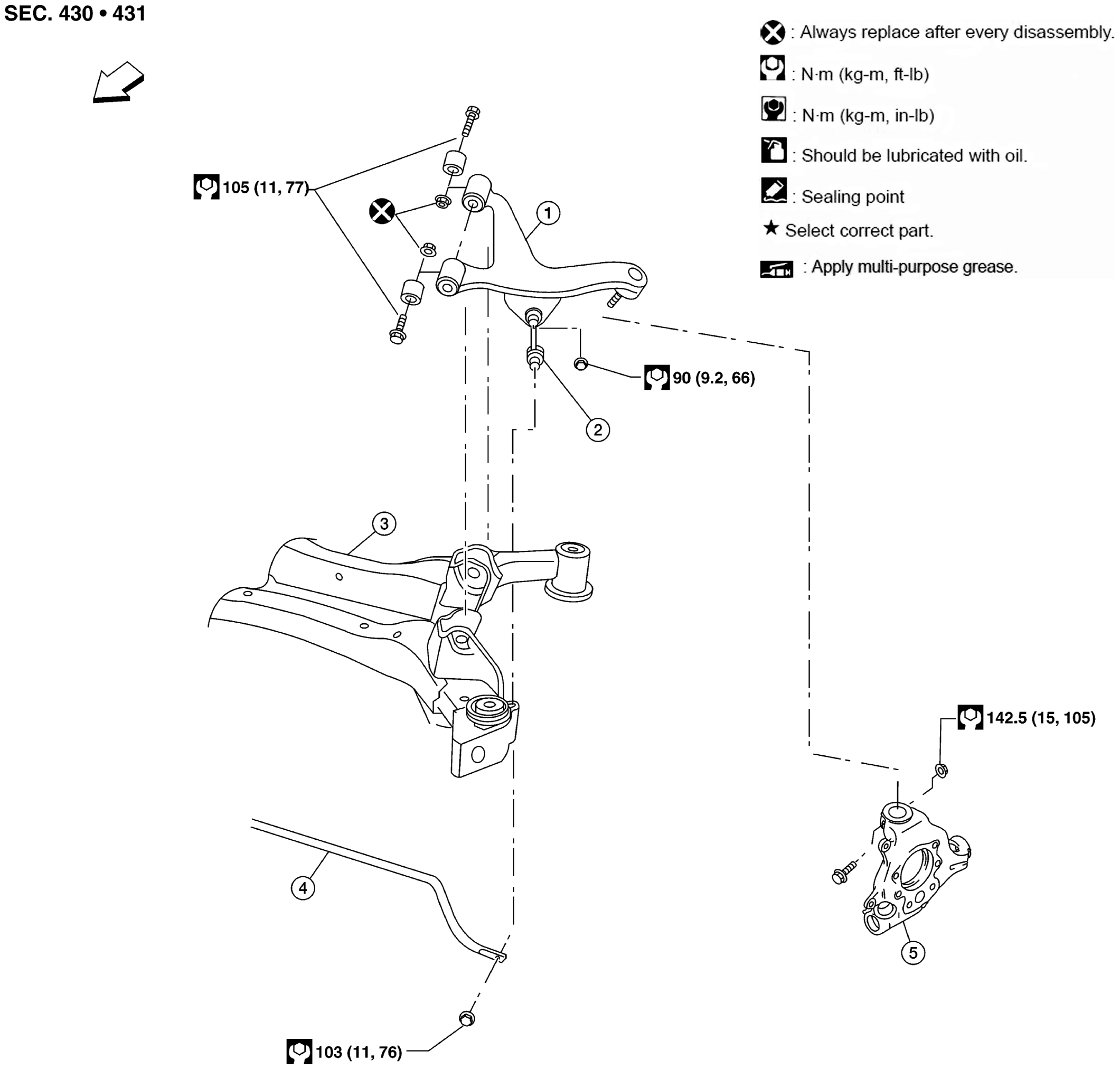

Fig 1: Rear Suspension Arm With Torque Specifications
GNSAWEIA0285ZZ-285Courtesy of NISSAN NORTH AMERICA, INC.
1. Rear suspension arm 2. Connecting rod 3. Rear suspension member
4. Stabilizer bar 5. Rear knuckle ARROW Front
