Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

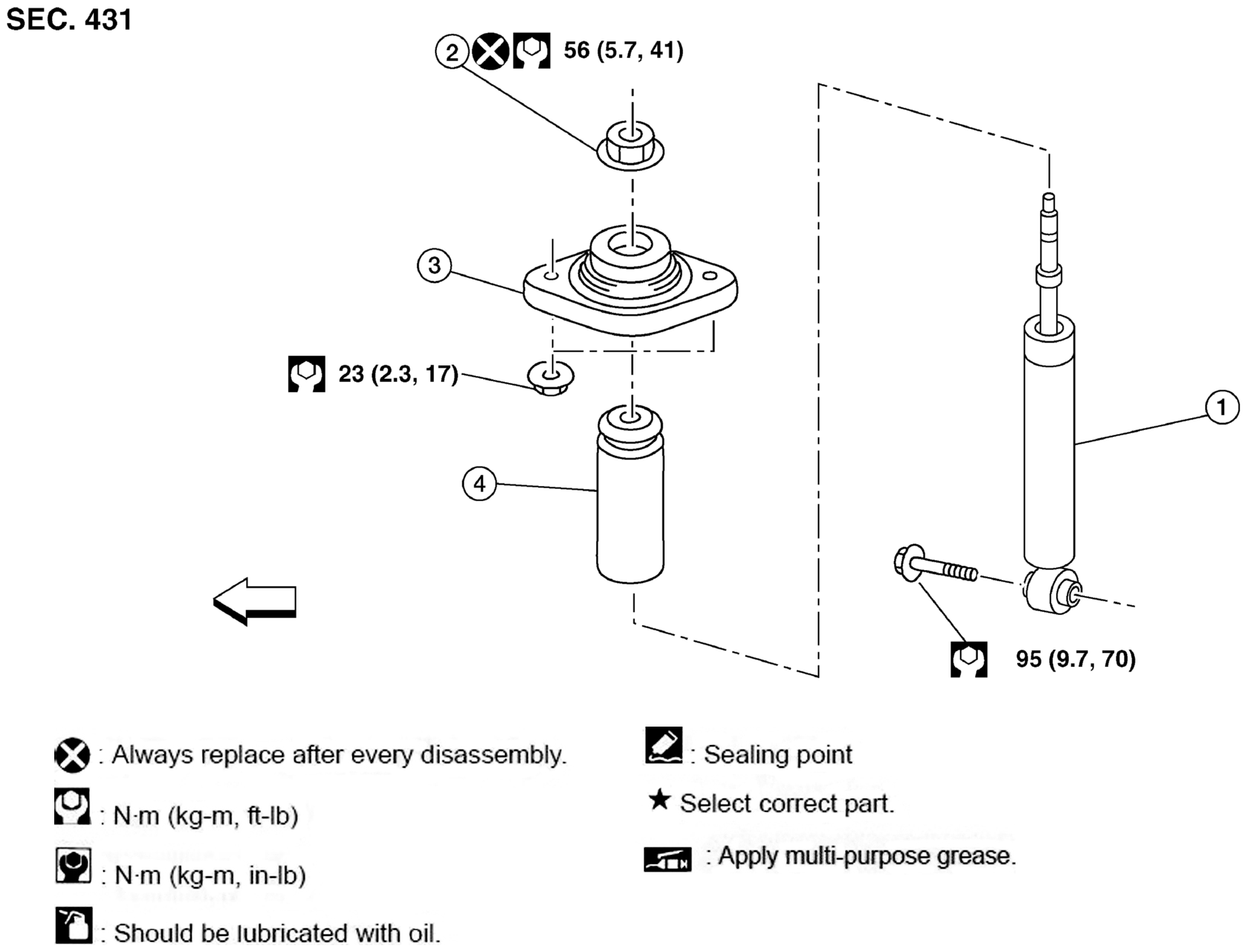

Fig 1: Rear Shock Absorber With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear shock absorber	2.	Piston rod lock nut	3.	Shock absorber insulator
4.	Bound bumper		Front
