Removal And Installation: Installation

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

CAUTION:

Do not reuse rear lower nuts.

Make sure that the upper seat is attached as shown below.

CAUTION:

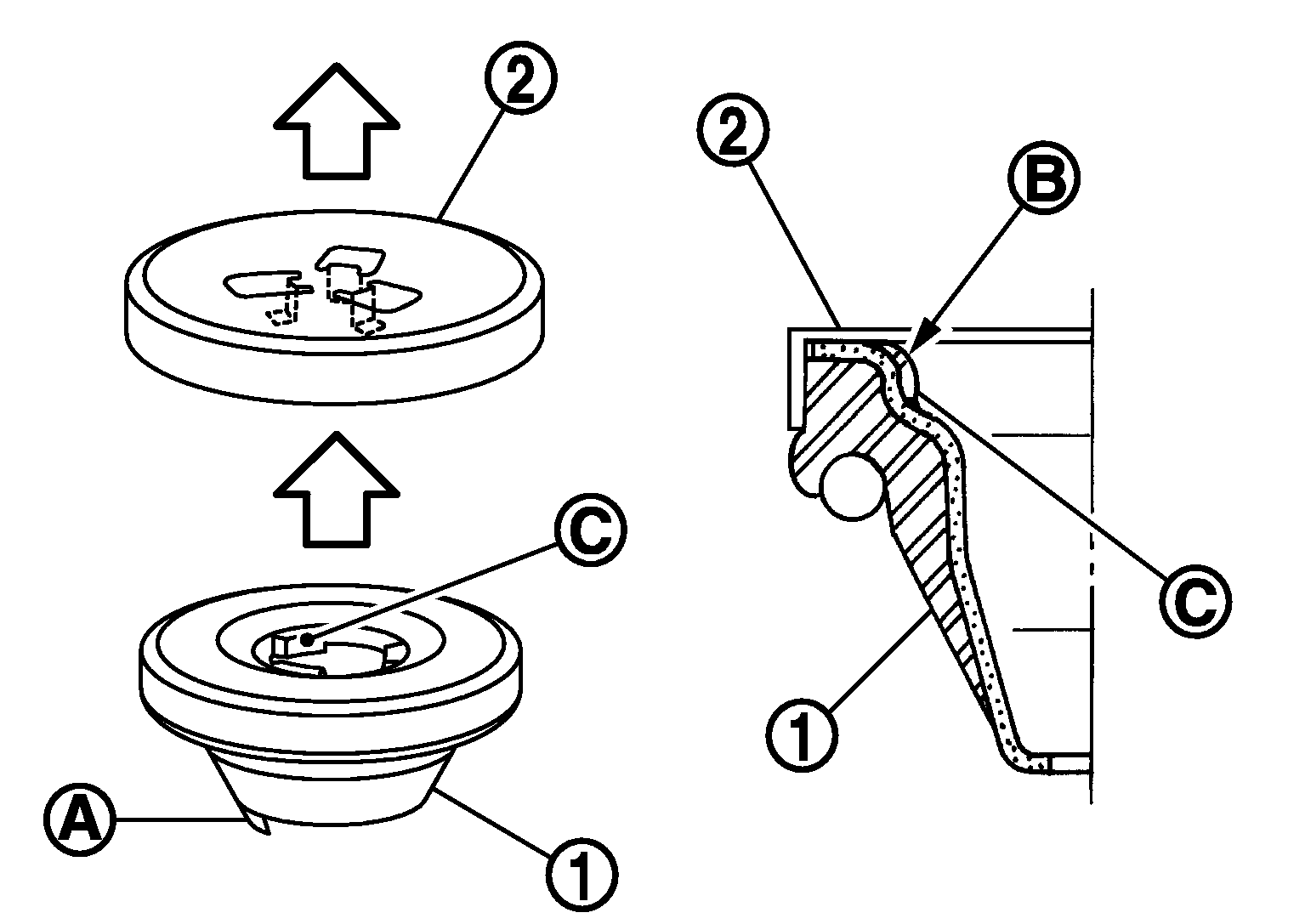

Keep the upper seat (1) in place during coil spring installation. The protrusion (A) on the upper seat faces the outside of the vehicle.

Courtesy of NISSAN NORTH AMERICA, INC.

Align the tabs (C) to the upper seat openings and securely fit the bracket (2) to the tabs (B).

: Body

Match up the lower seat indentions and the rear lower link grooves.

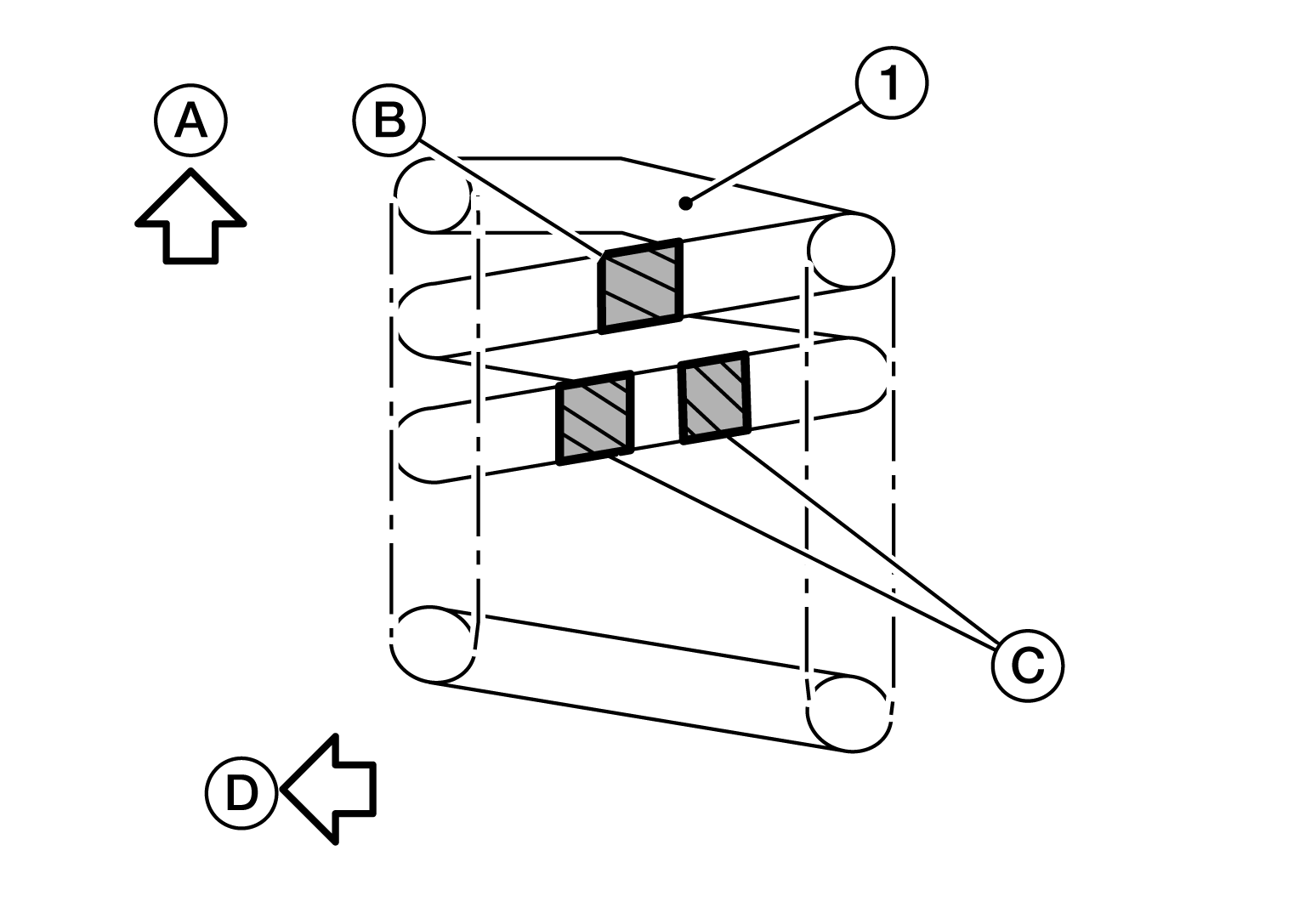

When installing the coil spring (1), position the coil spring as shown below.

Courtesy of NISSAN NORTH AMERICA, INC.

(A): Vehicle upper side

(B): 1 paint mark

(C): 2 paint marks

(D): Vehicle inside

CAUTION:
Position the coil spring with the 2 paint marks 3.5 turns from the bottom.
Install the coil spring by aligning the lower end of the coil spring (1) to the bump on the lower spring seat (2).

Courtesy of NISSAN NORTH AMERICA, INC.

(A) : Maximum gap 5 mm (0.20 in)
Perform the final tightening of the parts under unladen conditions with the tires on the ground.
Check the wheel alignment. Refer to INSPECTION AND ADJUSTMENT .
Adjust the neutral position of the steering angle sensor. Refer to DESCRIPTION .
