Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

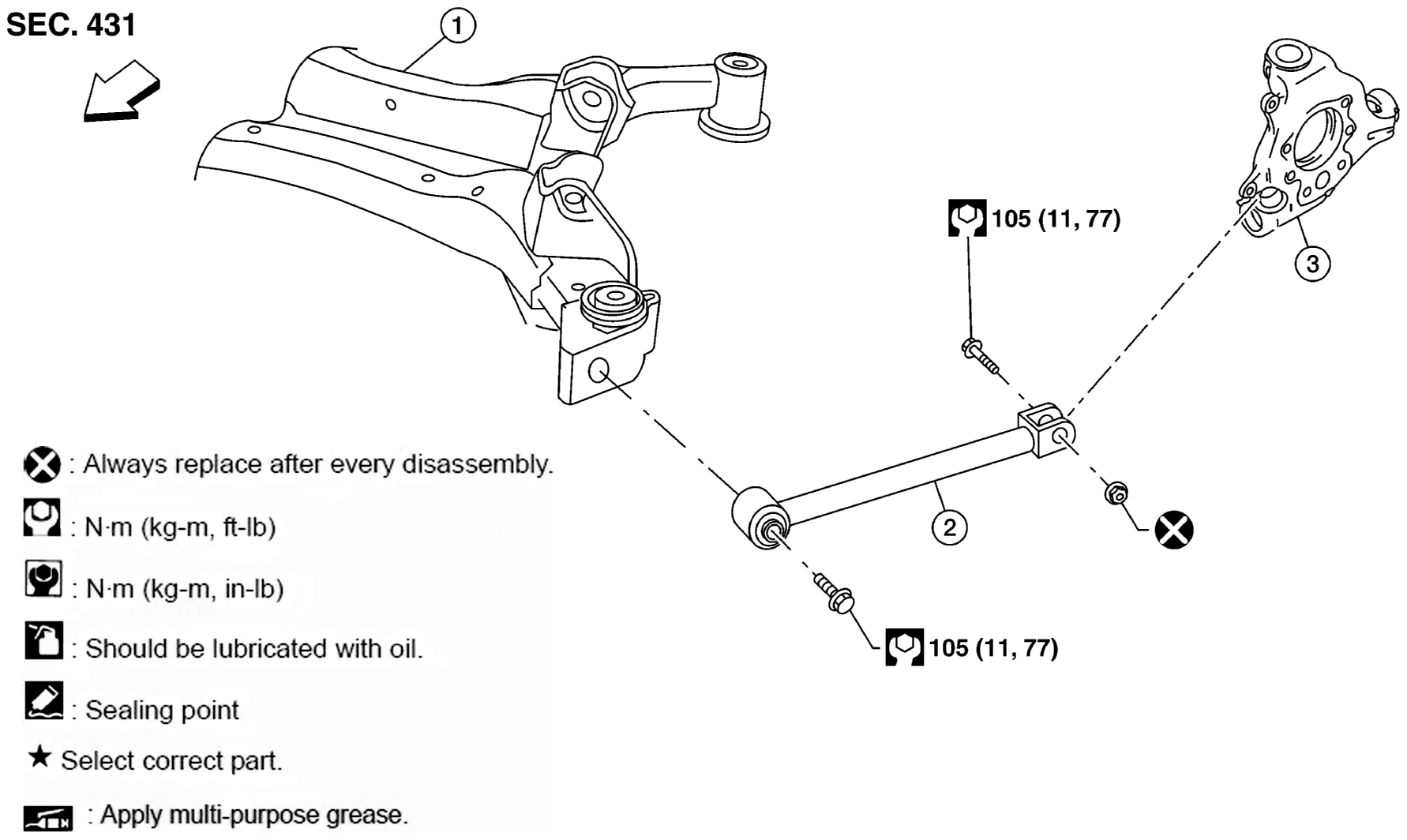

Fig 1: Radius Rod With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear suspension member	2.	Radius rod	3.	Rear knuckle
	Front
