Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

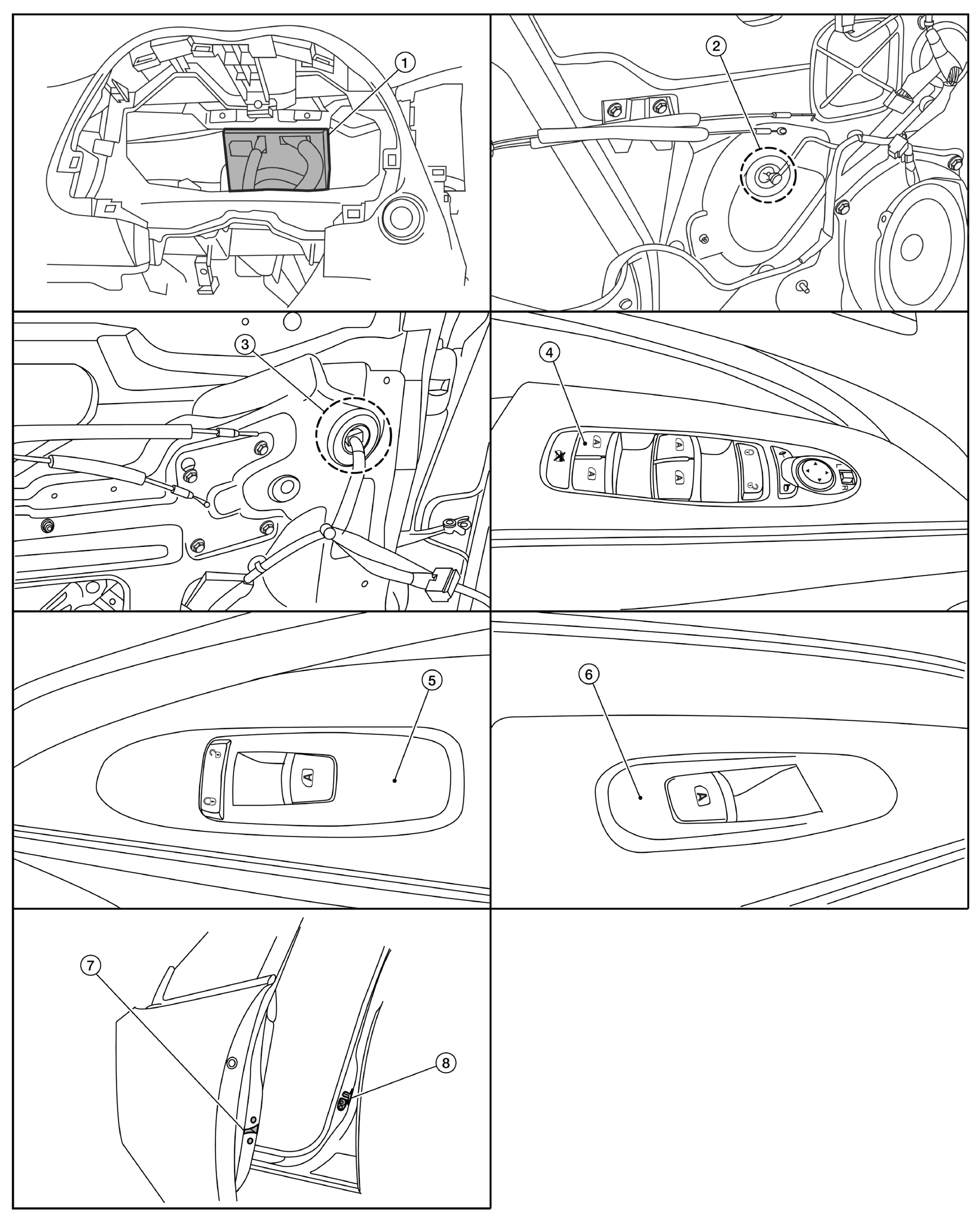

| 1. | BCM (view with the combination meter removed) | 2. | Front power window motor LH (RH similar) | 3. | Rear power window motor LH (RH similar) |
| 4. | Main power window and door lock/unlock switch | 5. | Power window and door lock\unlock switch RH | 6. | Rear power window switch LH (RH similar) |
| 7. | Front door lock assembly LH (key cylinder switch) | 8. | Front door switch LH (RH similar) |
