Removal And Installation: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door finisher. Refer to REMOVAL AND INSTALLATION .

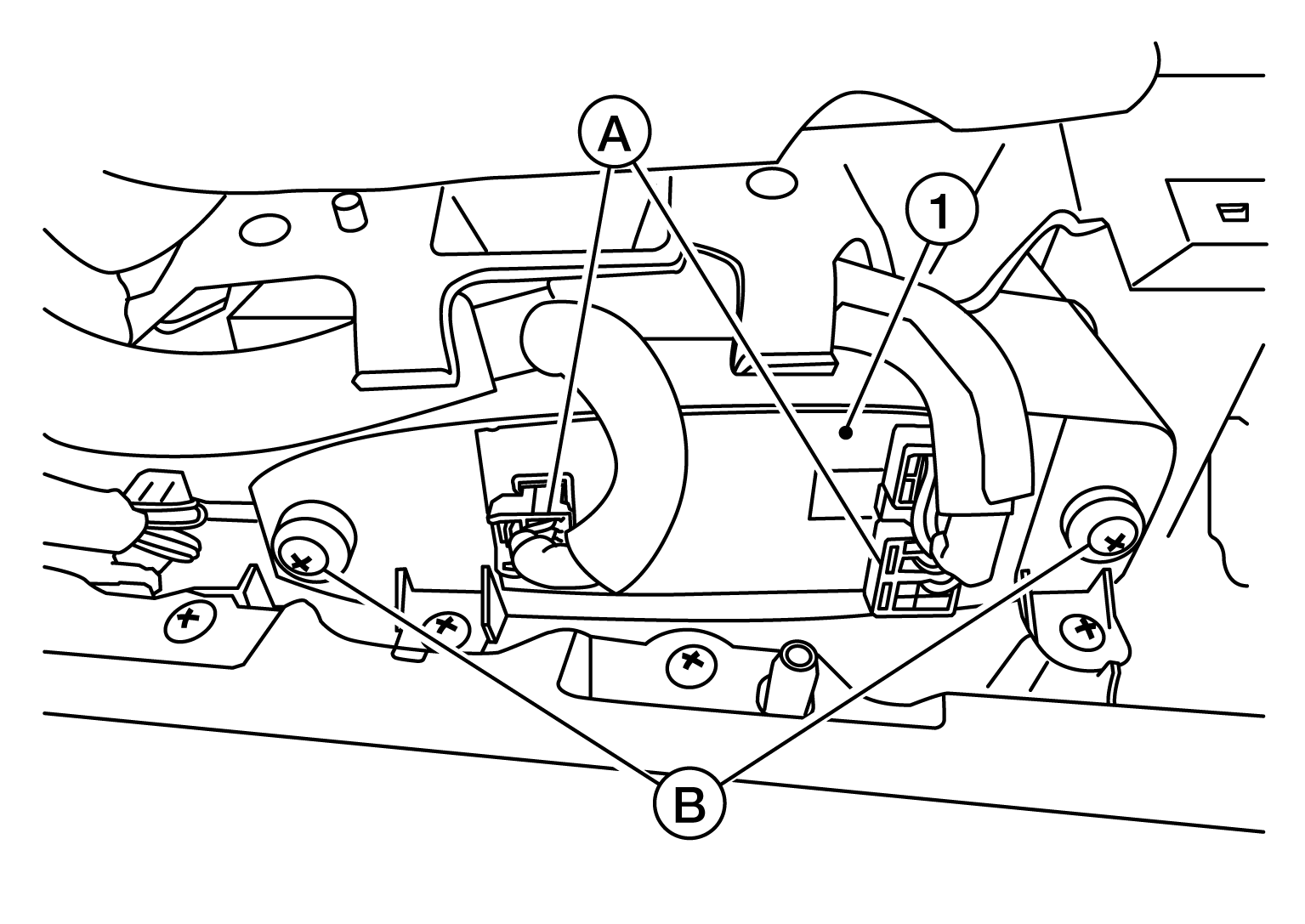

  2. Disconnect the harness connectors (A) from the main power window and door lock/unlock switch (1).
    G08852141Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove two screws (B) and remove main power window and door lock/unlock switch (1) and finisher as an assembly.
  4. Release pawls then separate main power window and door lock/unlock switch from switch finisher.
