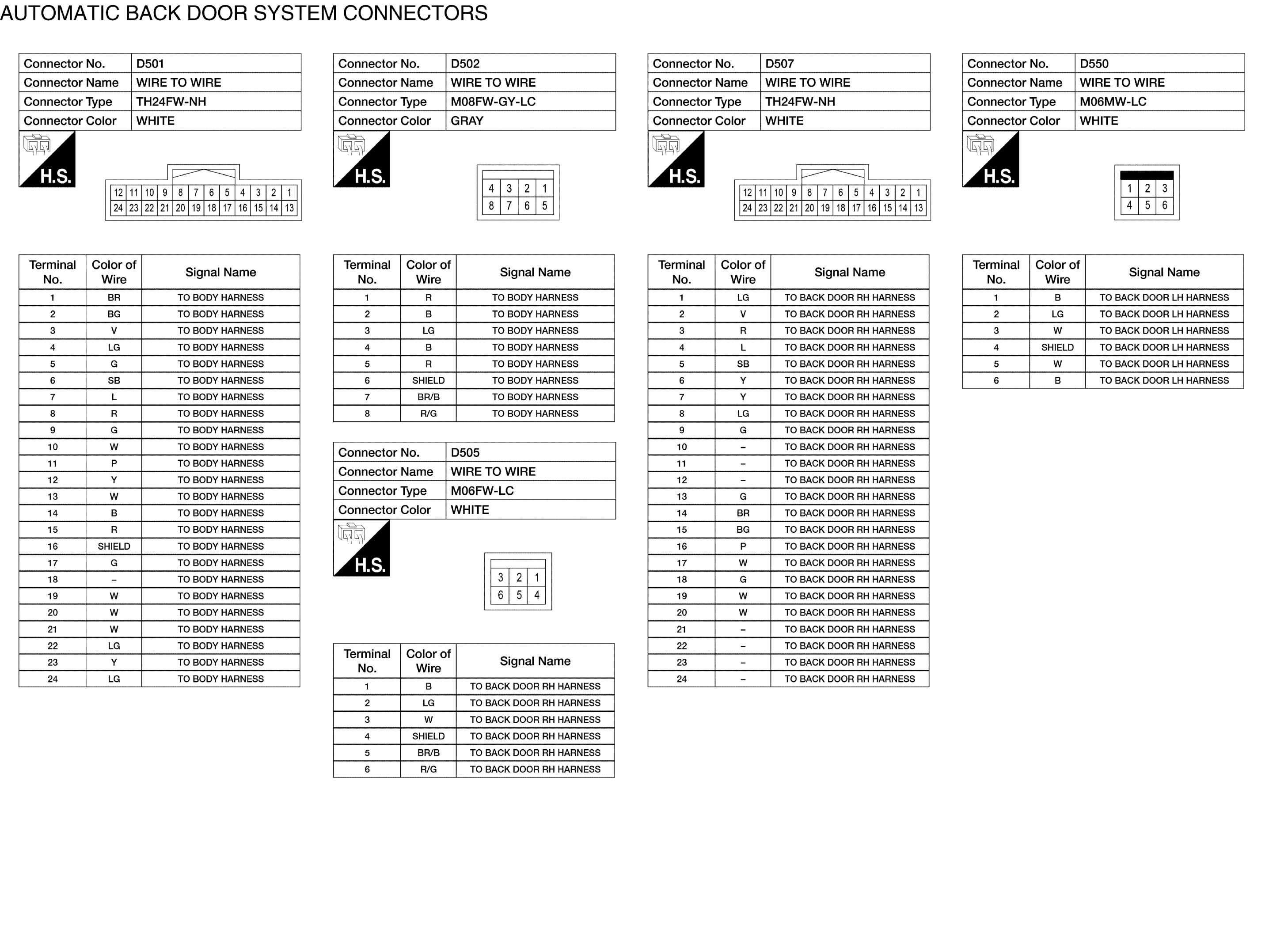

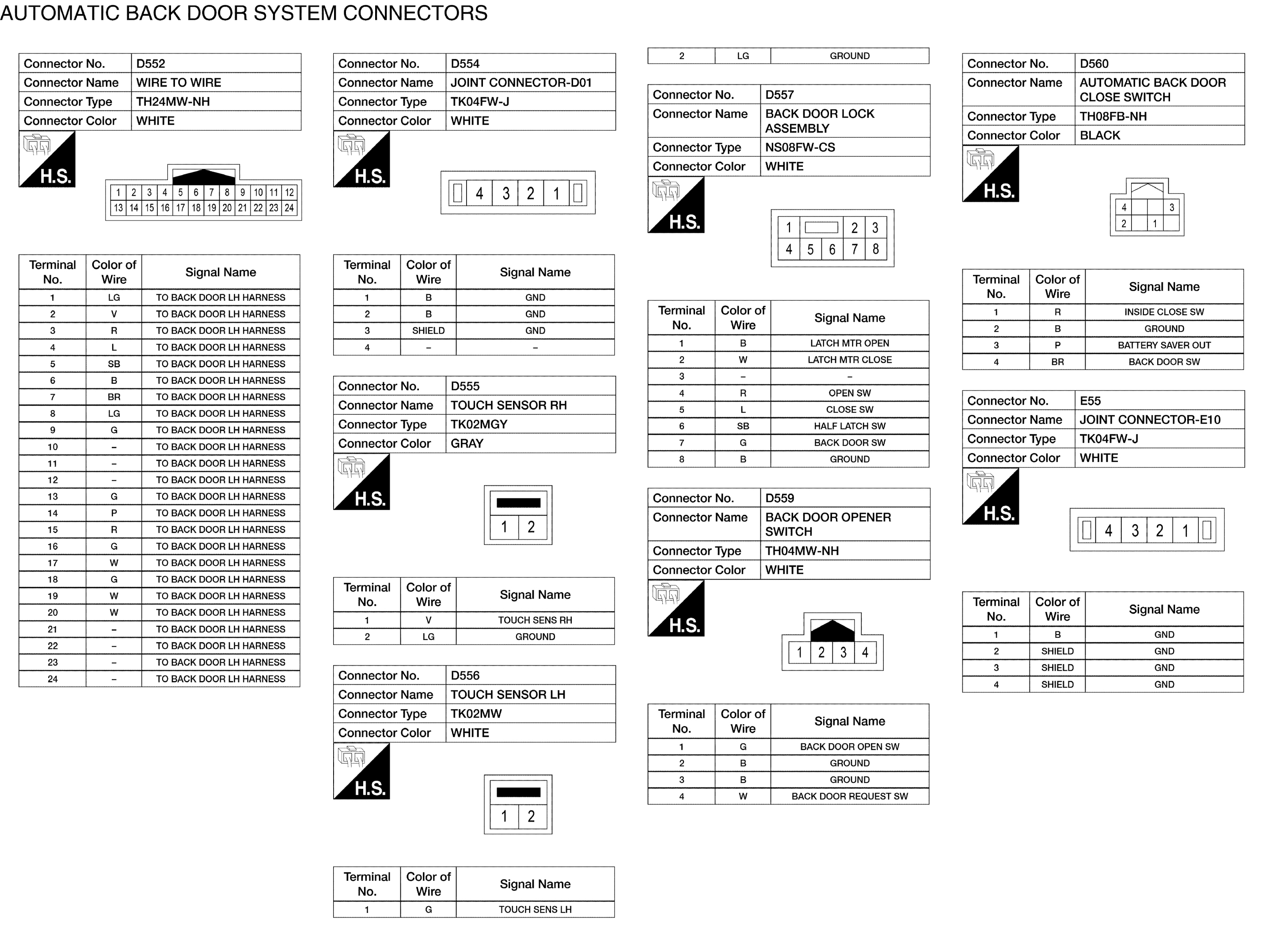

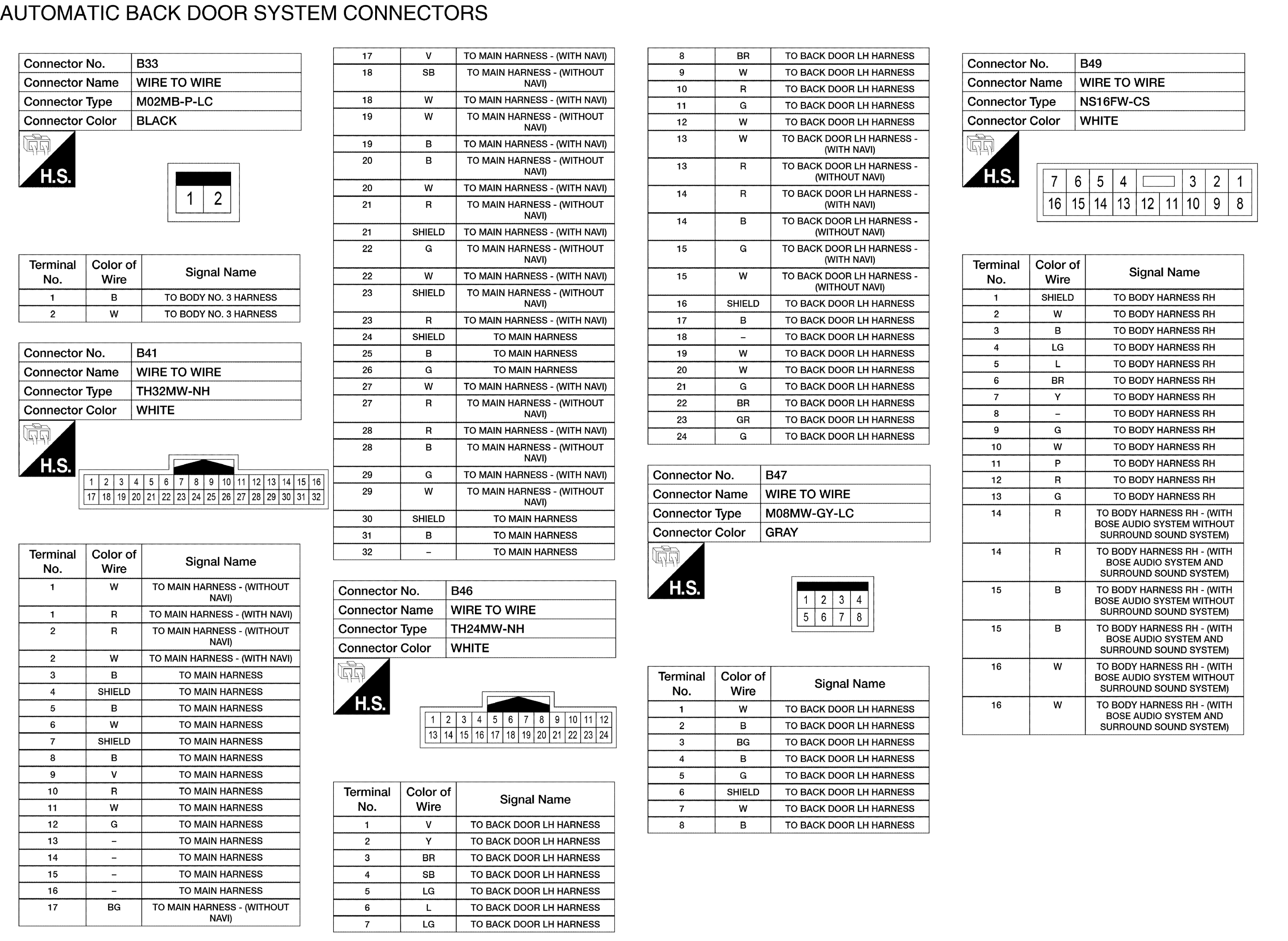

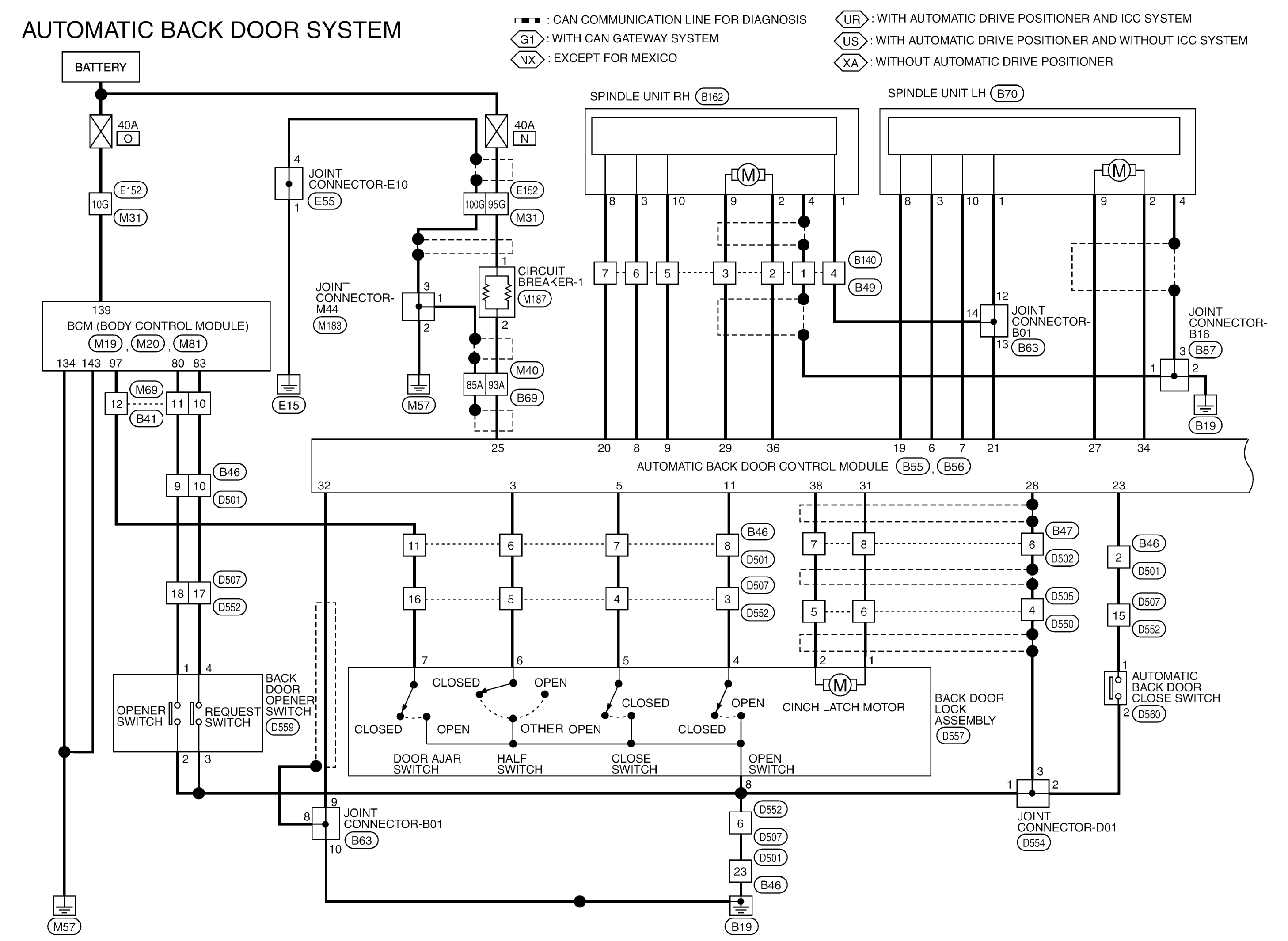

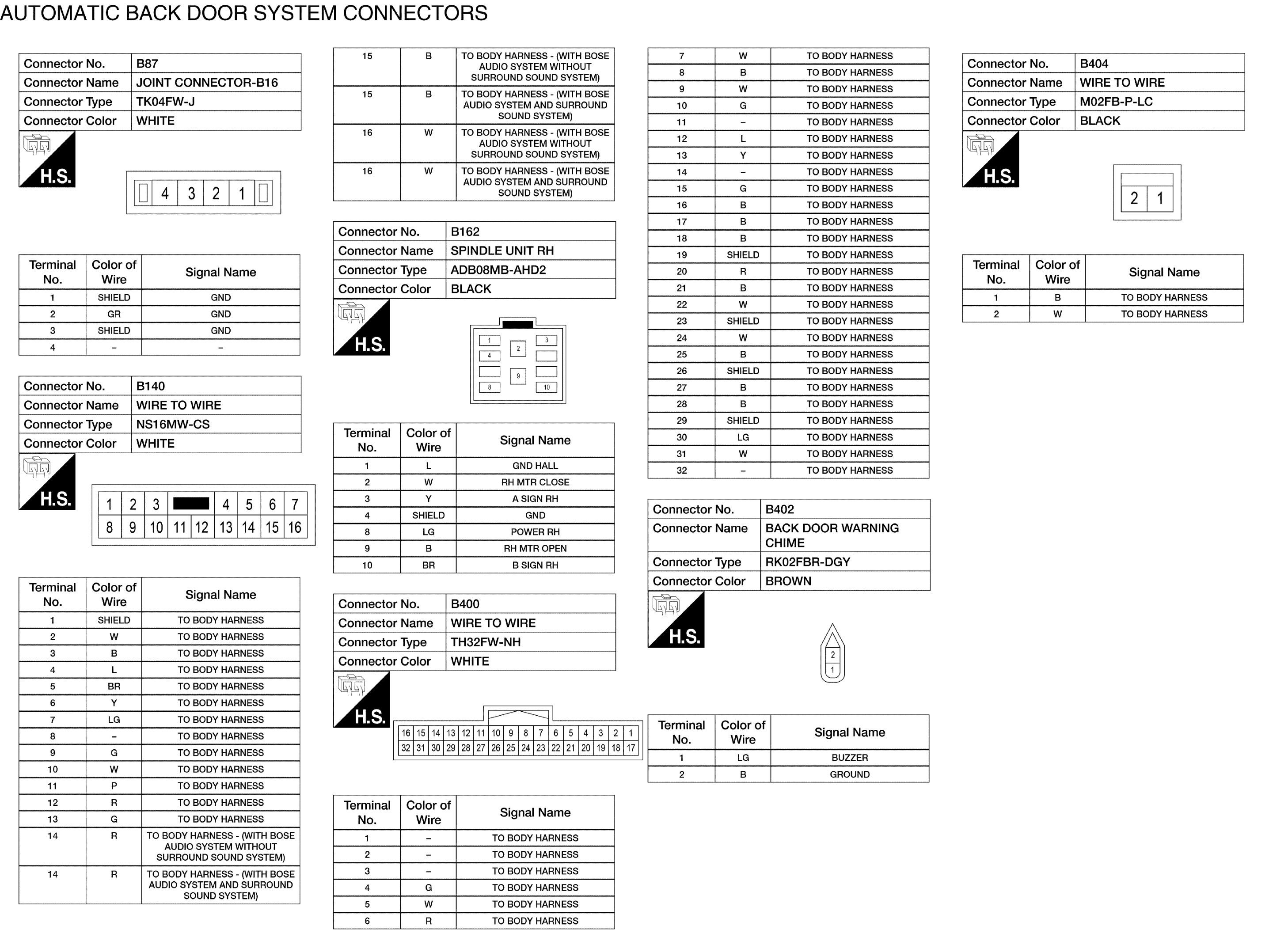

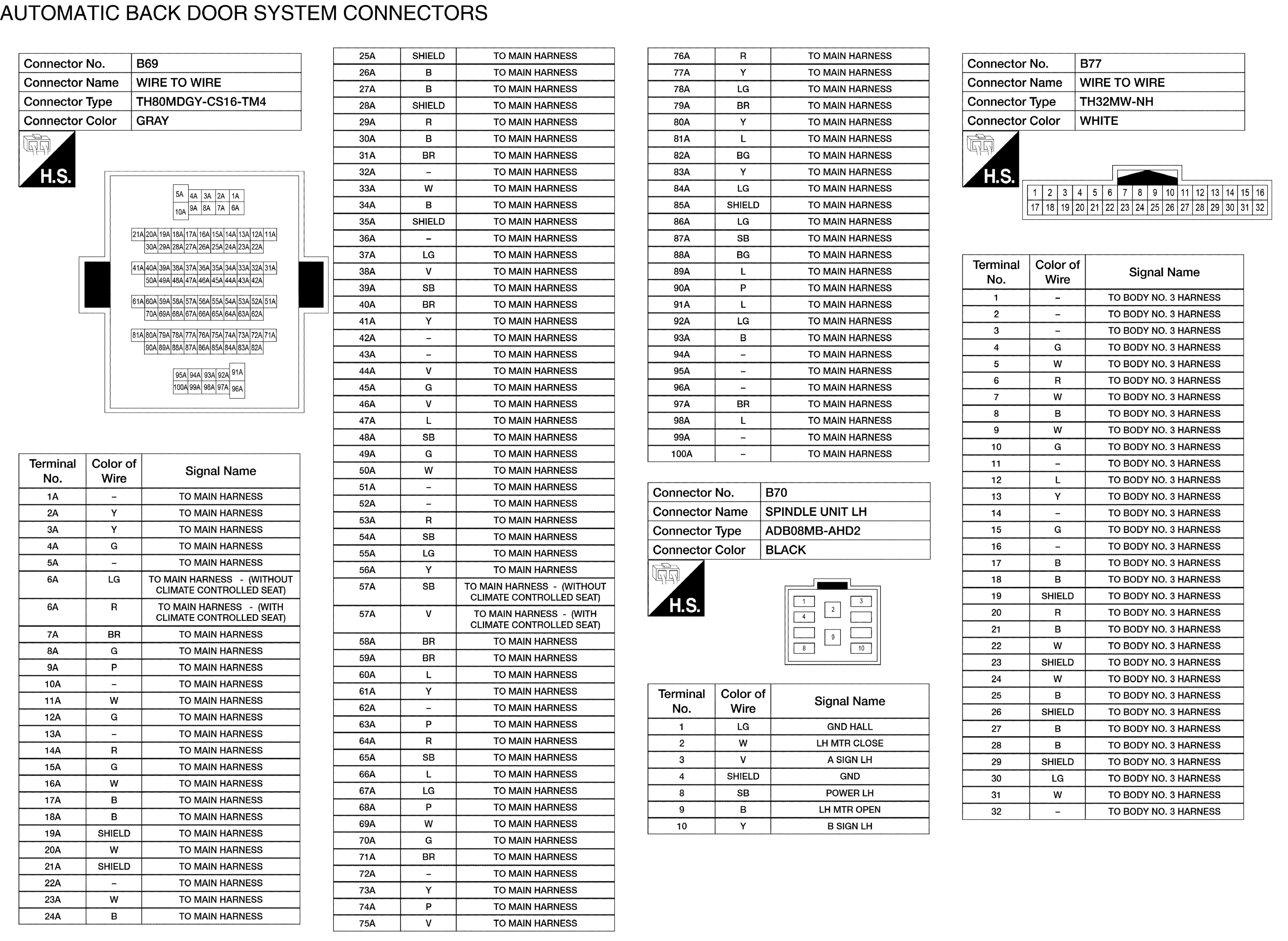

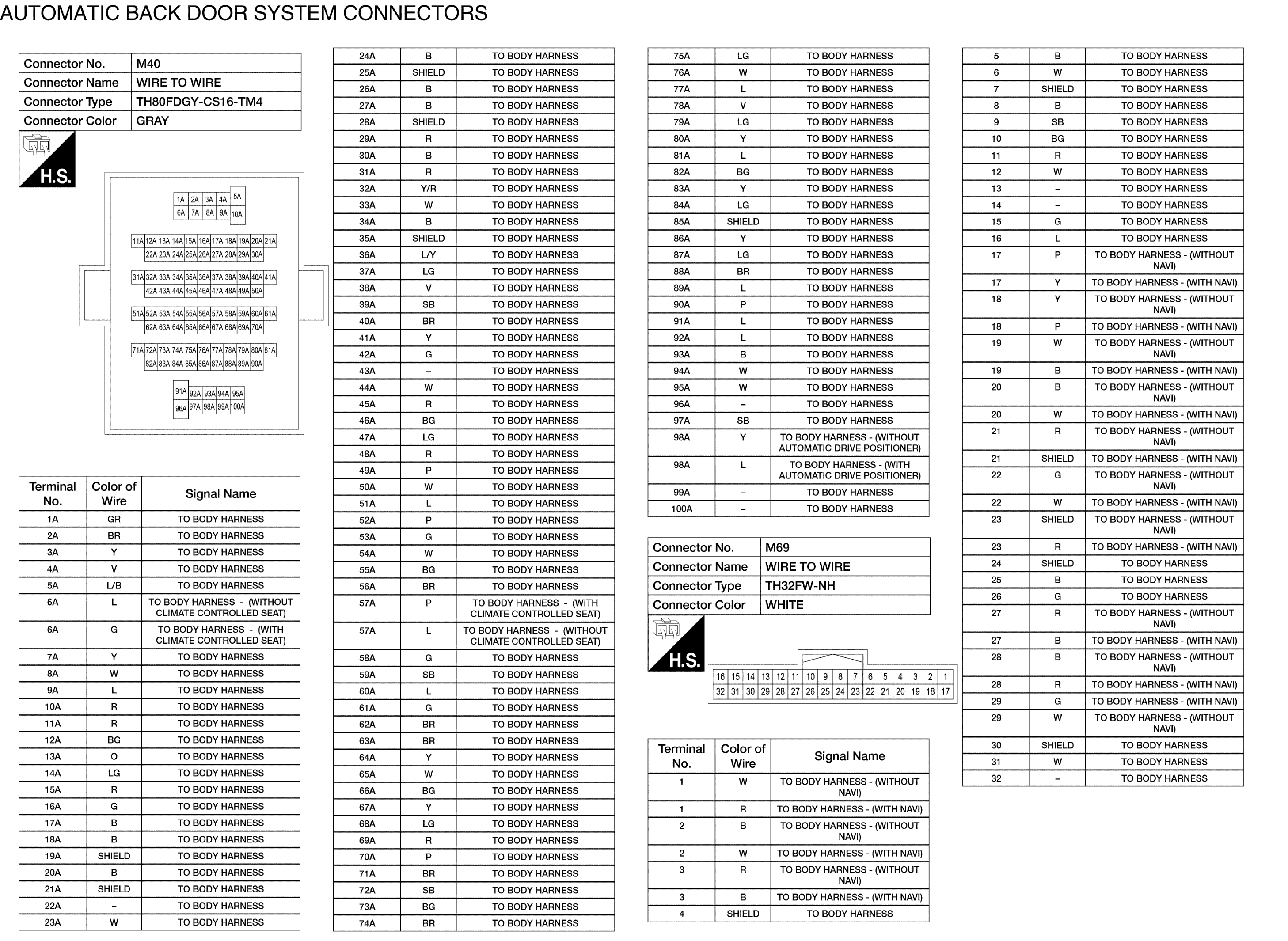

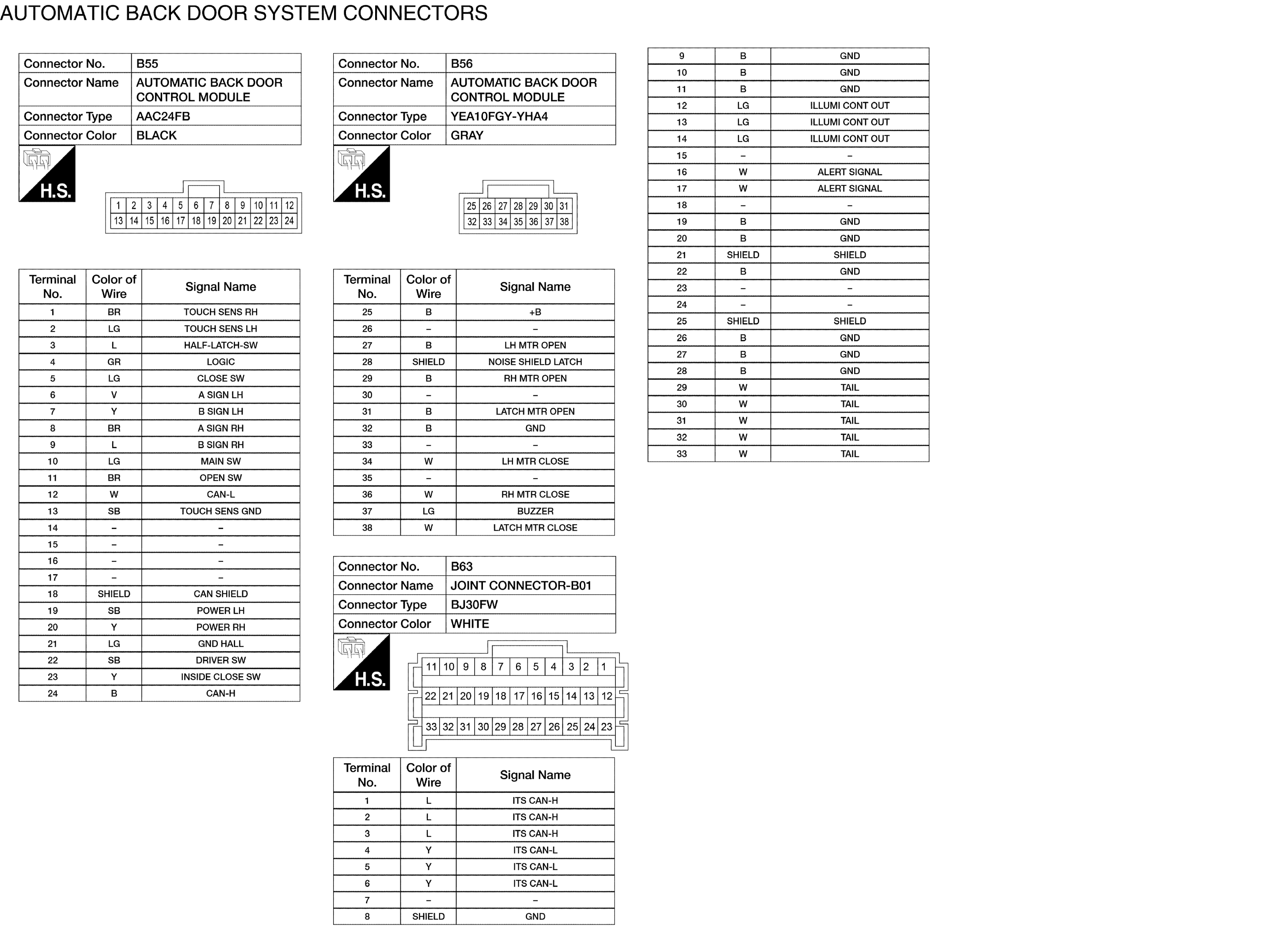

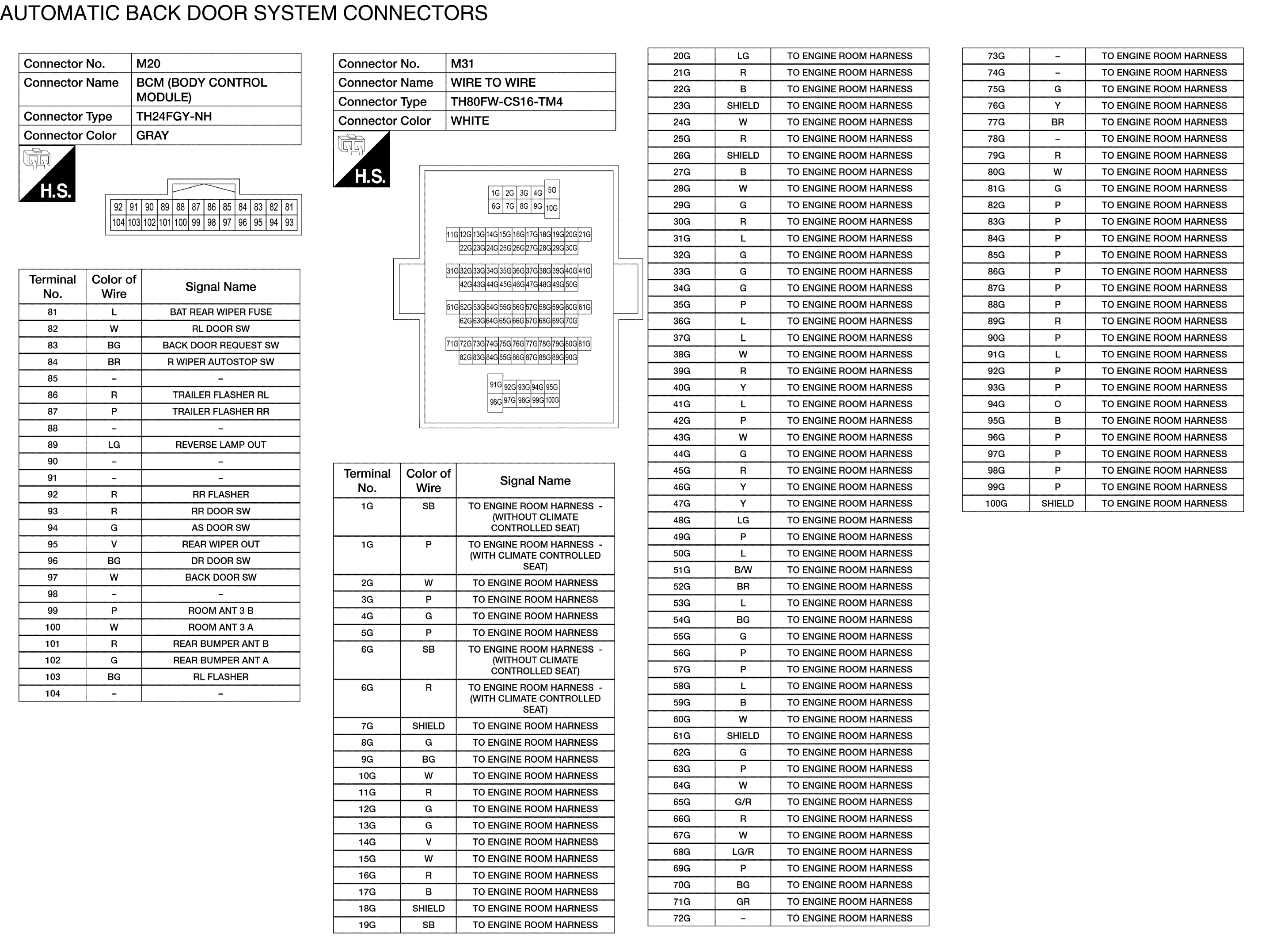

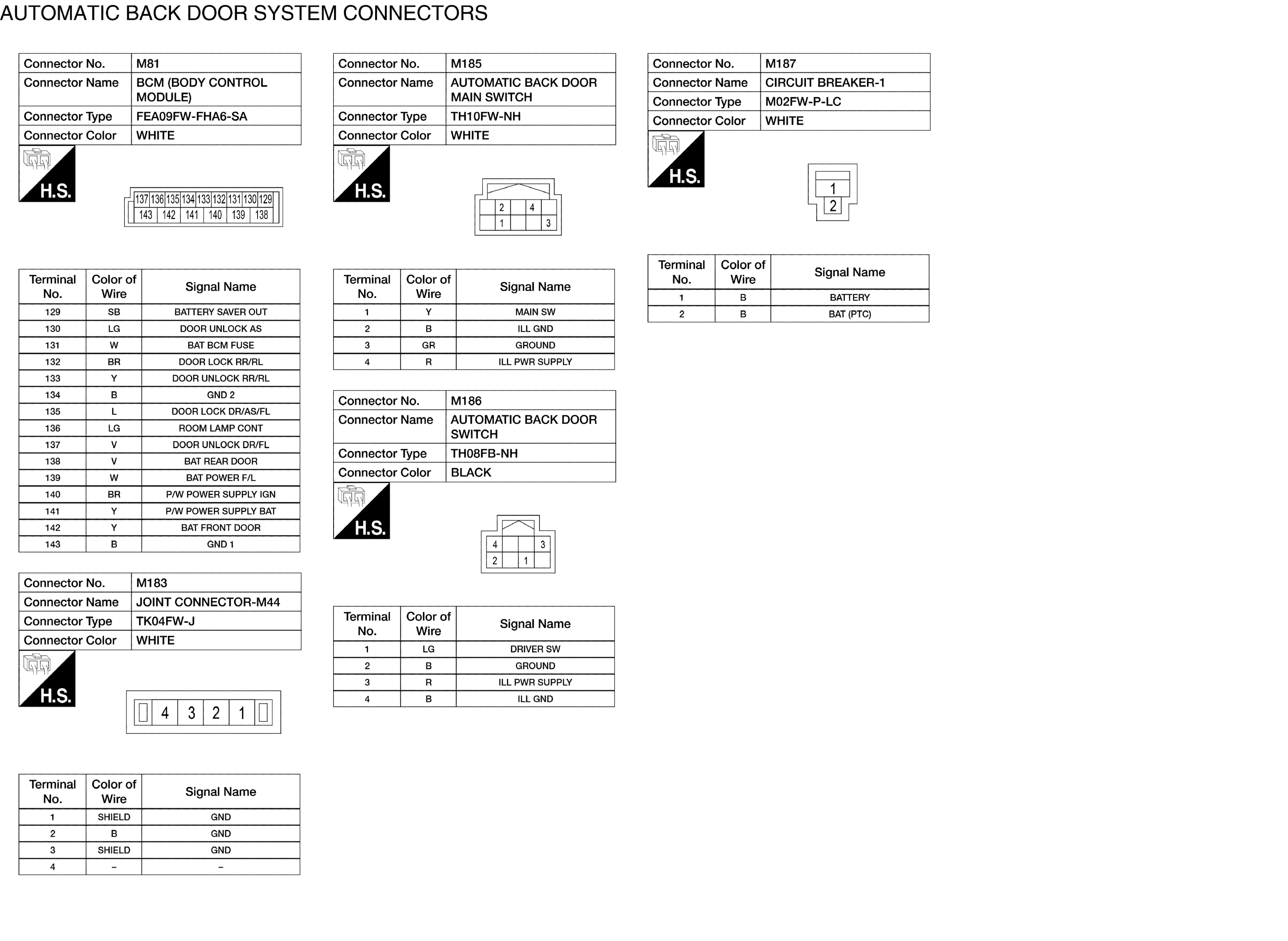

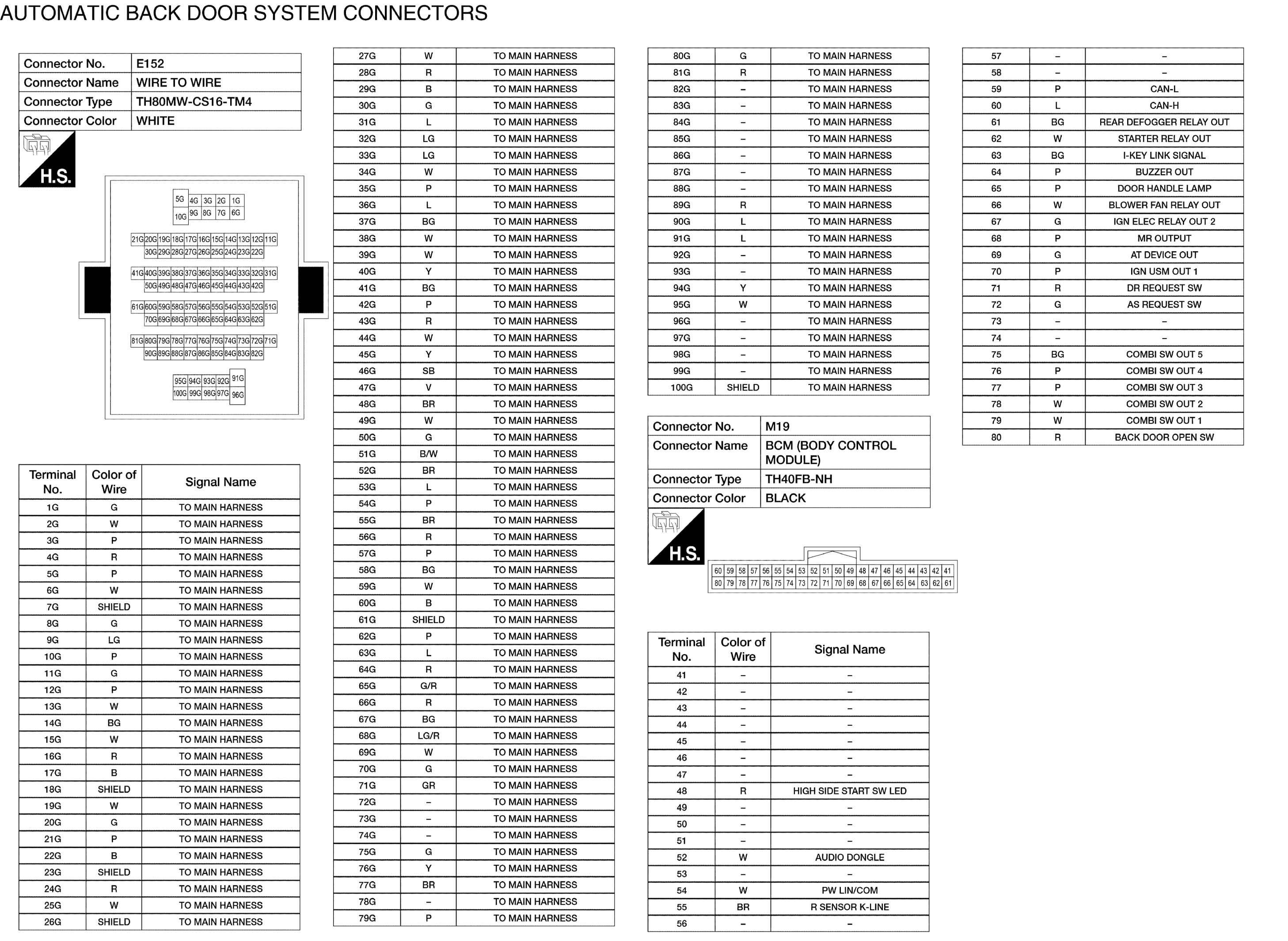

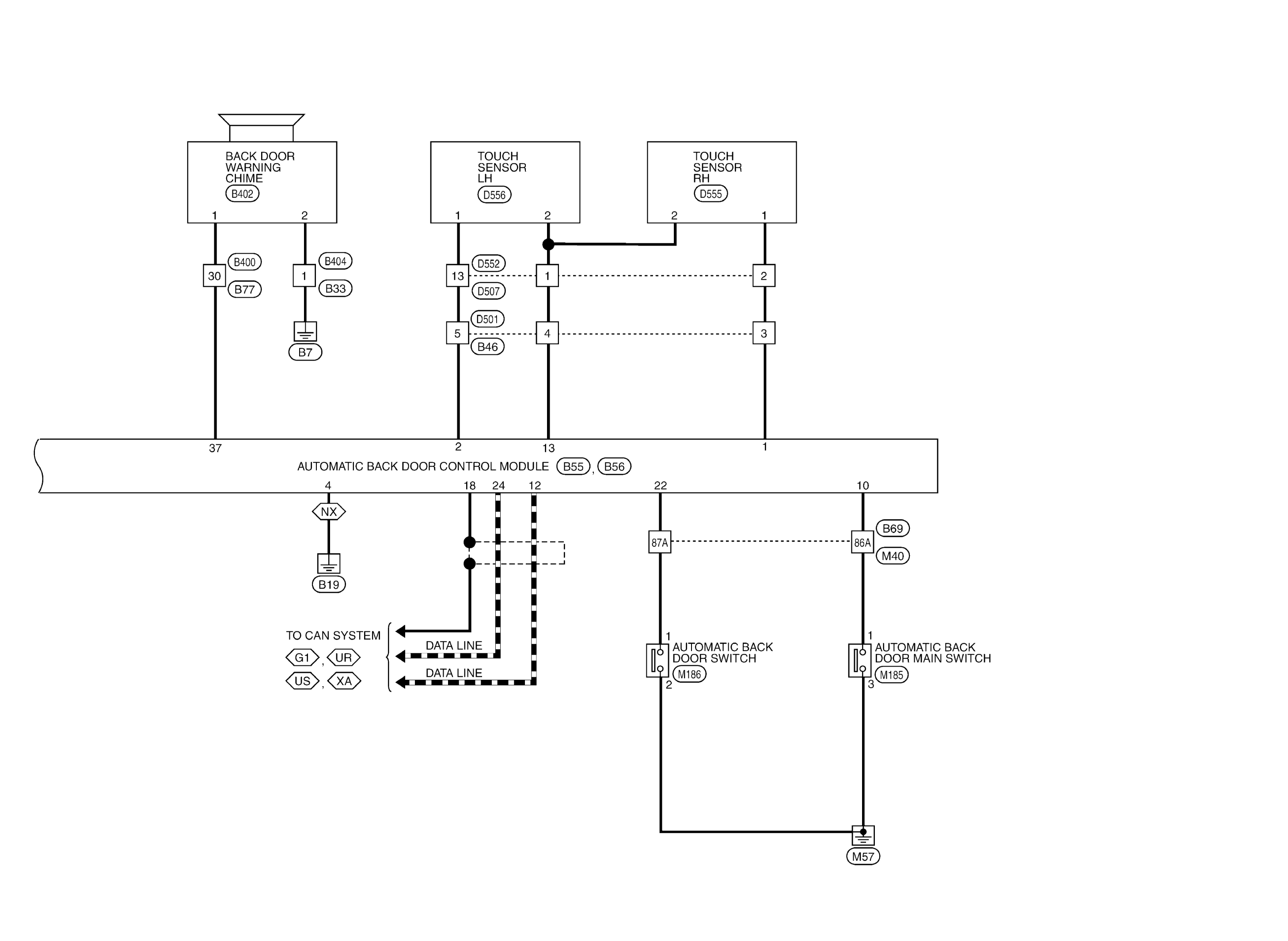

Automatic Back Door System: Wiring Diagram
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
