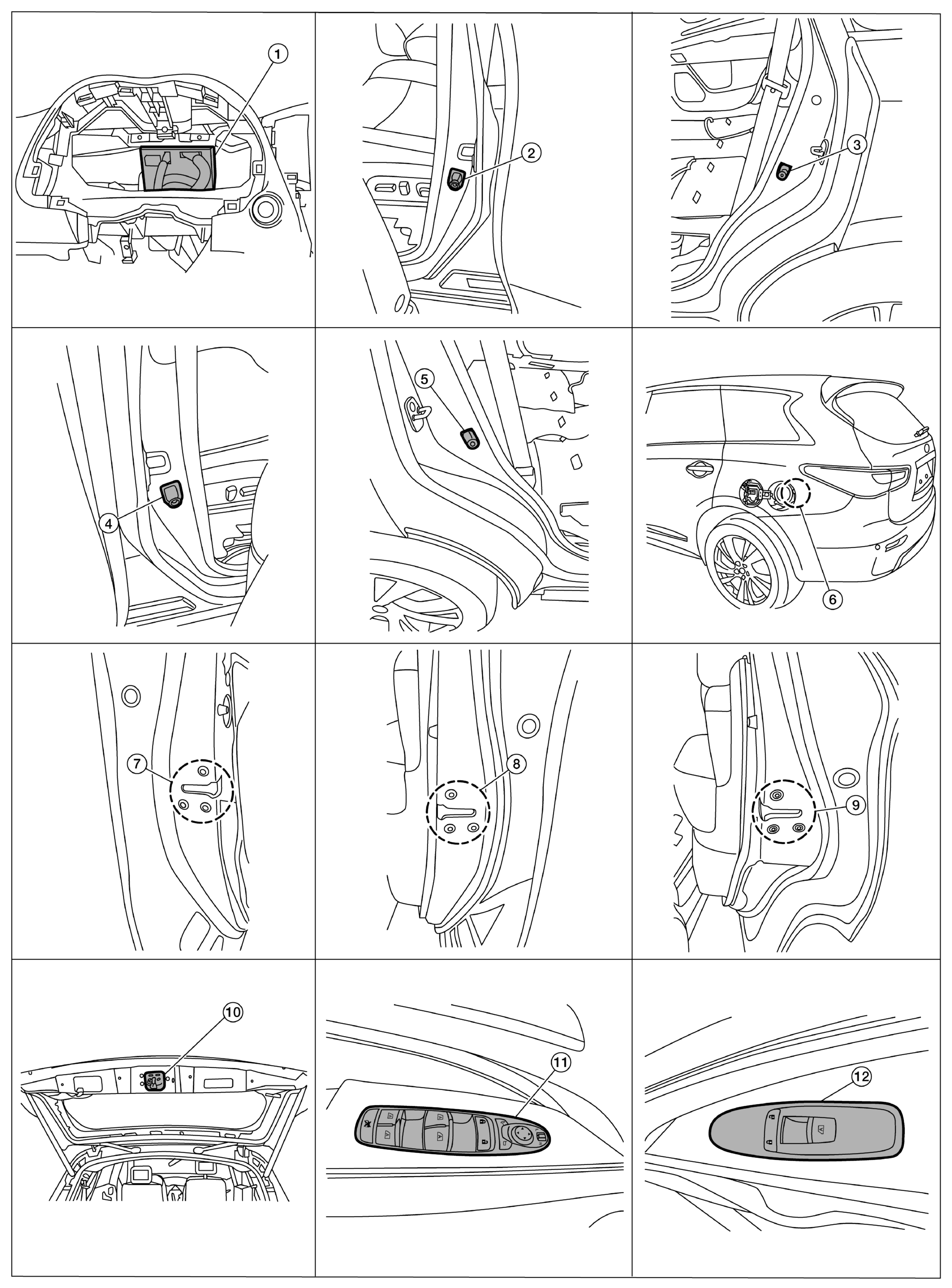

Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | BCM (view with combination meter removed) | 2. | Front door switch LH | 3. | Rear door switch LH |
| 4. | Front door switch RH | 5. | Rear door switch RH | 6. | Fuel lid door lock actuator (view with luggage side lower finisher LH removed) |
| 7. | Front door lock assembly LH | 8. | Front door lock actuator RH | 9. | Rear door lock actuator RH (LH similar) |
| 10. | Back door lock assembly | 11. | Main power window and door lock/unlock switch | 12. | Power window and door lock/unlock switch RH |
