Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|

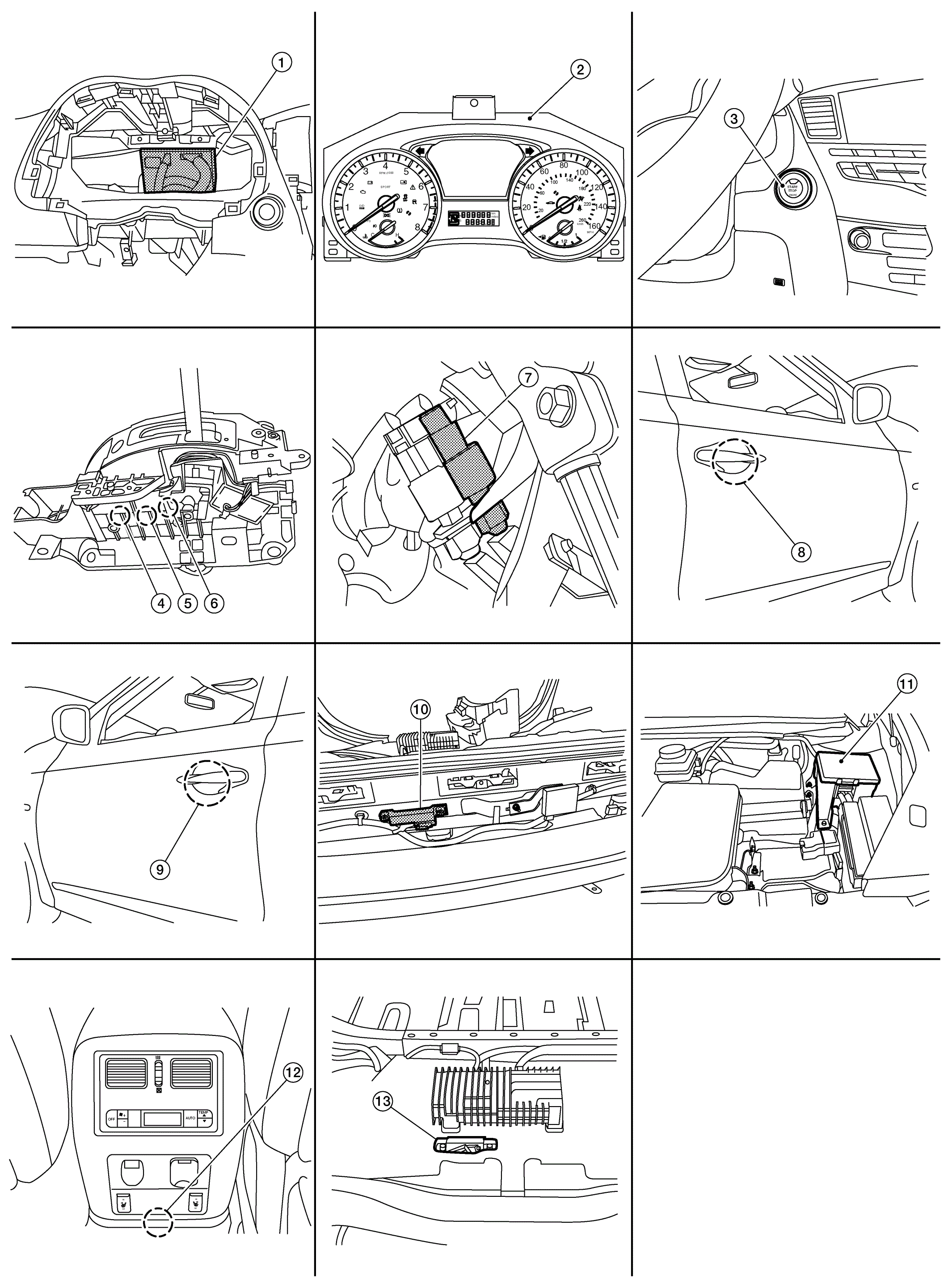

| 1. |
BCM (view with combination meter removed) |
2. |
Combination meter |
3. |
Push-button ignition switch |
| 4. |
CVT shift selector [park position switch (shift selector)] |
5. |
CVT shift selector (shift lock solenoid) |
6. |
CVT shift selector (park position switch) |
| 7. |
Stop lamp switch |
8. |
Front outside handle RH (RH request switch and outside key antenna passenger side) |
9. |
Front outside handle LH (LH request switch and outside key antenna drivers side) |
| 10. |
Outside key antenna (rear bumper) (view with rear bumper cover removed) |
11. |
IPDM E/R |
12. |
Inside key antenna (console) |
| 13. |
Inside key antenna (luggage room) (view with rear carpet removed) |
|
|
|
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|

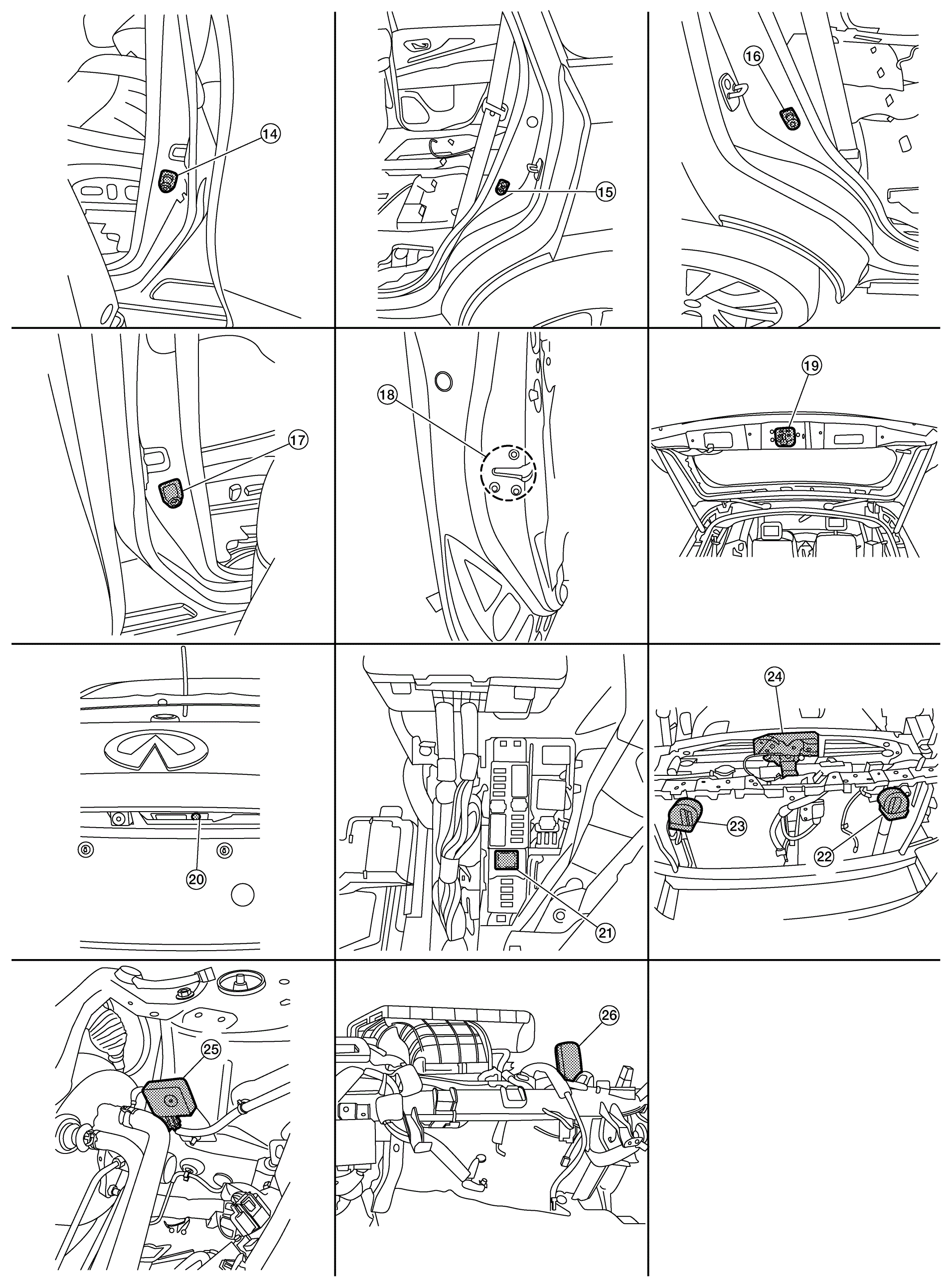

| 14. |
Front door switch LH |
15. |
Rear door switch LH |
16. |
Rear door switch RH |
| 17. |
Front door switch RH |
18. |
Front door lock assembly LH |
19. |
Back door lock assembly |
| 20. |
Back door opener switch |
21. |
Horn relay |
22. |
Horn (low) |
| 23. |
Horn (high) |
24. |
Hood switch |
25. |
Intelligent Key warning buzzer |
| 26. |
Remote keyless entry receiver (view with instrument panel removed) |
|
|
|
|
