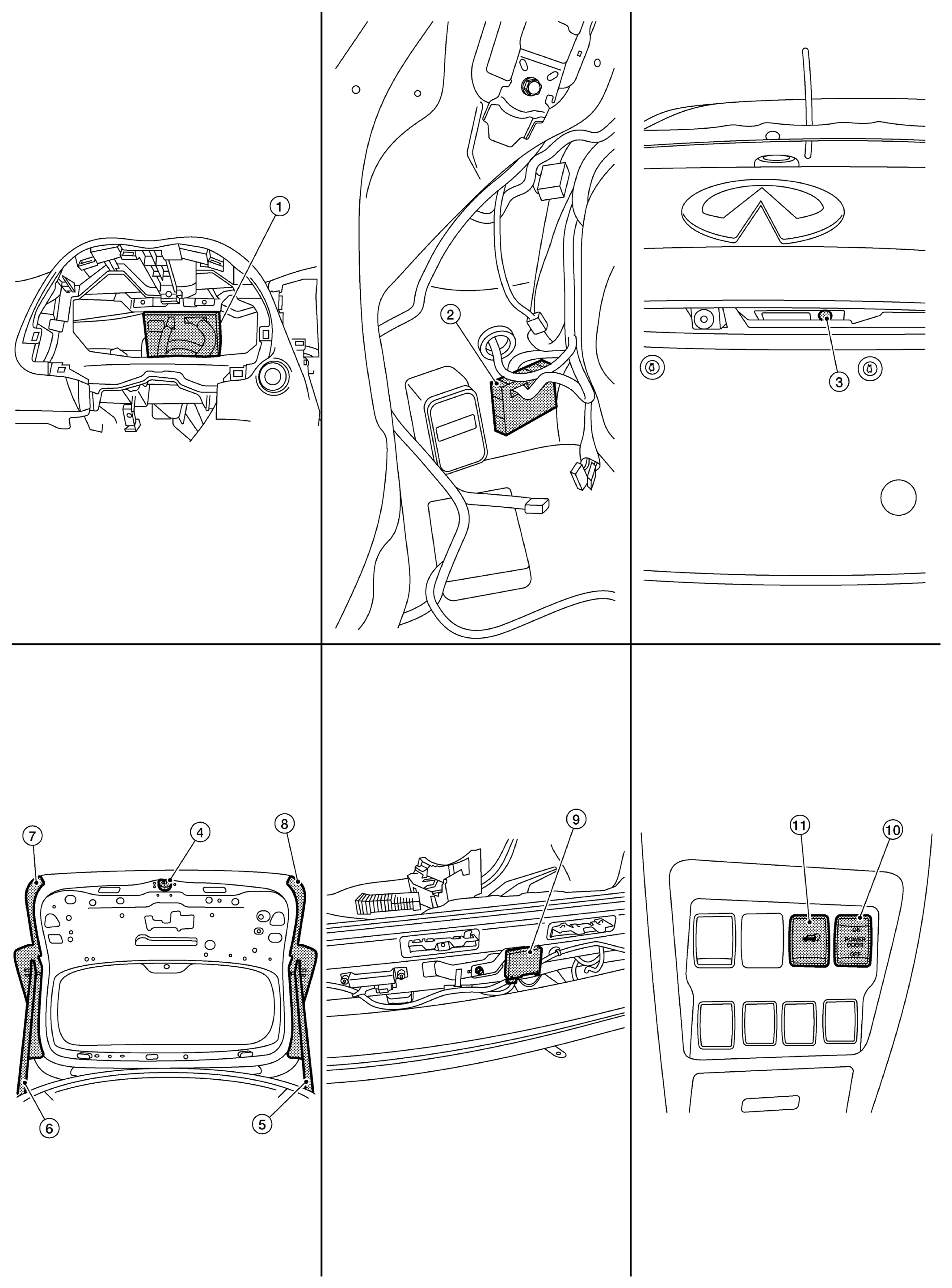

Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | BCM (view with combination meter removed) | 2. | Automatic back door control module (view with luggage side lower finisher removed) | 3. | Back door opener switch |
| 4. | Back door lock assembly | 5. | Spindle Unit RH | 6. | Spindle Unit LH |
| 7. | Touch sensor LH | 8. | Touch sensor RH | 9. | Back door warning chime (view with rear bumper cover removed) |
| 10. | Automatic back door main switch | 11. | Automatic back door switch |
