Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

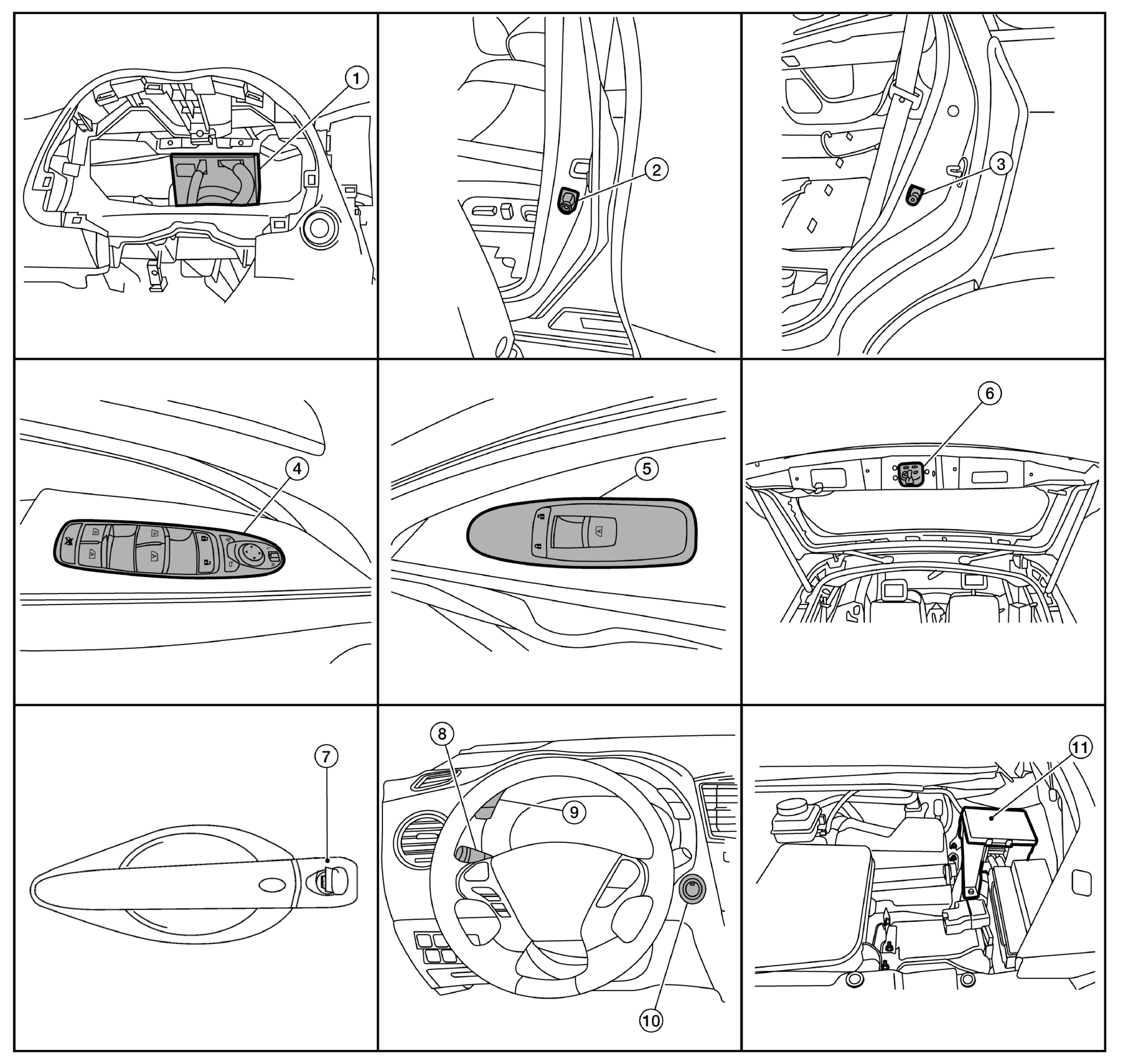

| 1. | BCM (view with combination meter removed) | 2. | Front door switch LH (RH similar) |
3. | Rear door switch LH (RH similar) |
| 4. | Main power window and door lock/unlock switch | 5. | Power window and door lock/unlock switch RH | 6. | Back door lock assembly (back door switch) |
| 7. | Front door lock assembly LH | 8. | Combination switch (lighting and turn signal switch) |
9. | Meter control switch (illumination control switch) |
| 10. | Push-button ignition switch | 11. | IPDM E/R |
