Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

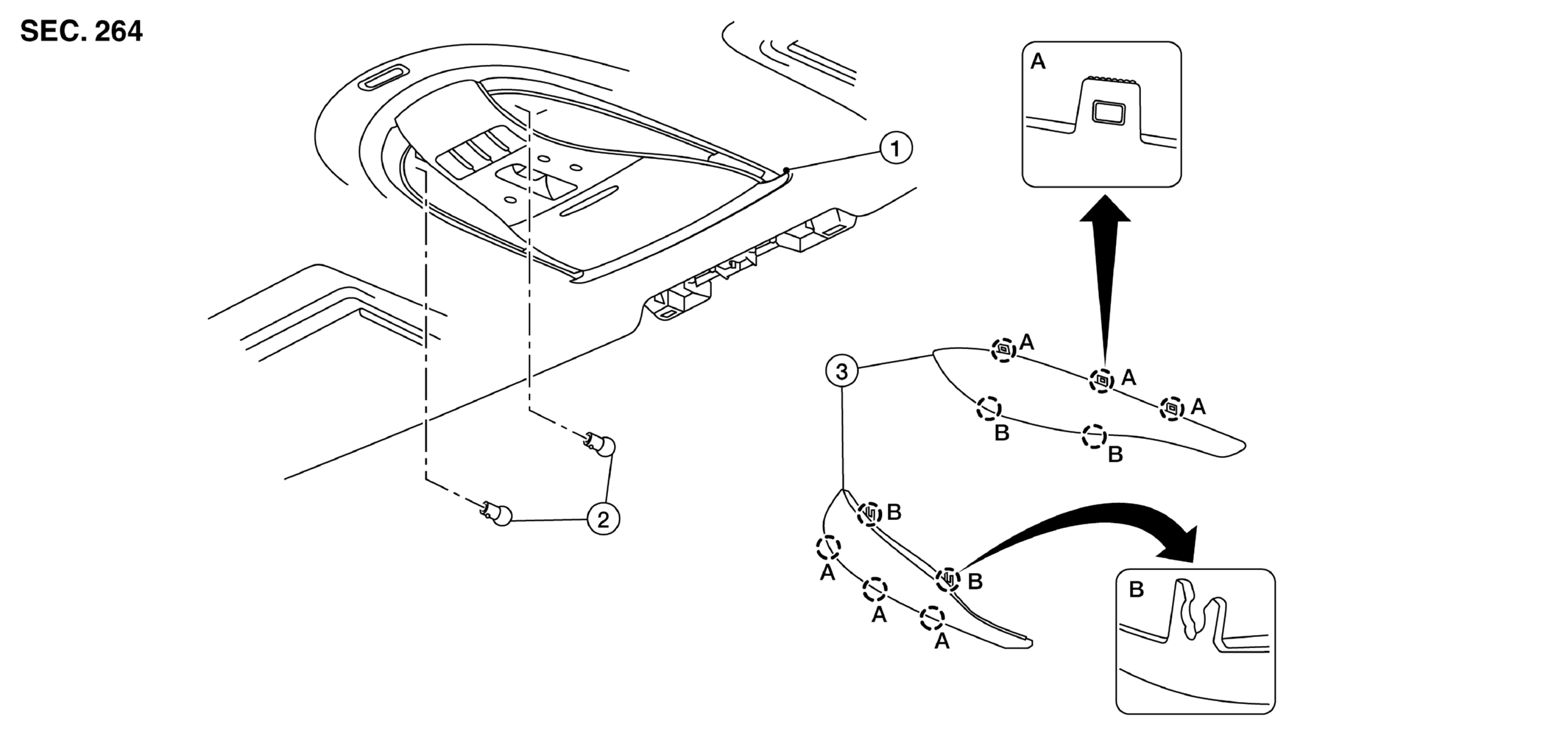

GNSALLIA1082ZZ-082Courtesy of NISSAN NORTH AMERICA, INC.
1. Front room/map lamp assembly 2. Bulb 3. Lens
MARU-H Pawl
