Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

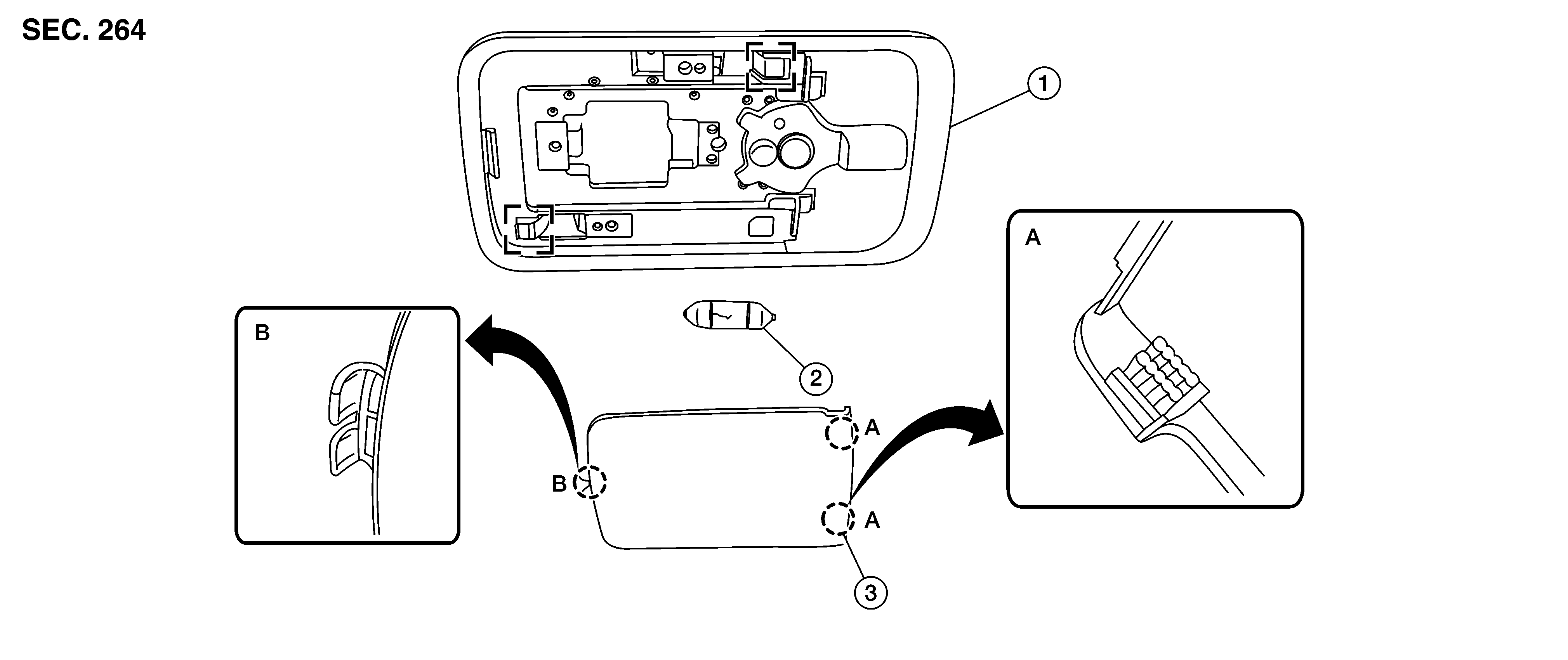

GNSAWLIA2174ZZ-174Courtesy of NISSAN NORTH AMERICA, INC.
1. Cargo lamp 2. Bulb 3. Lens
A. Pawls to release first for lens removal B. Pawl to install first for lens installation MARU-H Pawl
SHIKAKU-H Metal clip
