Display And Warning Lamp

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

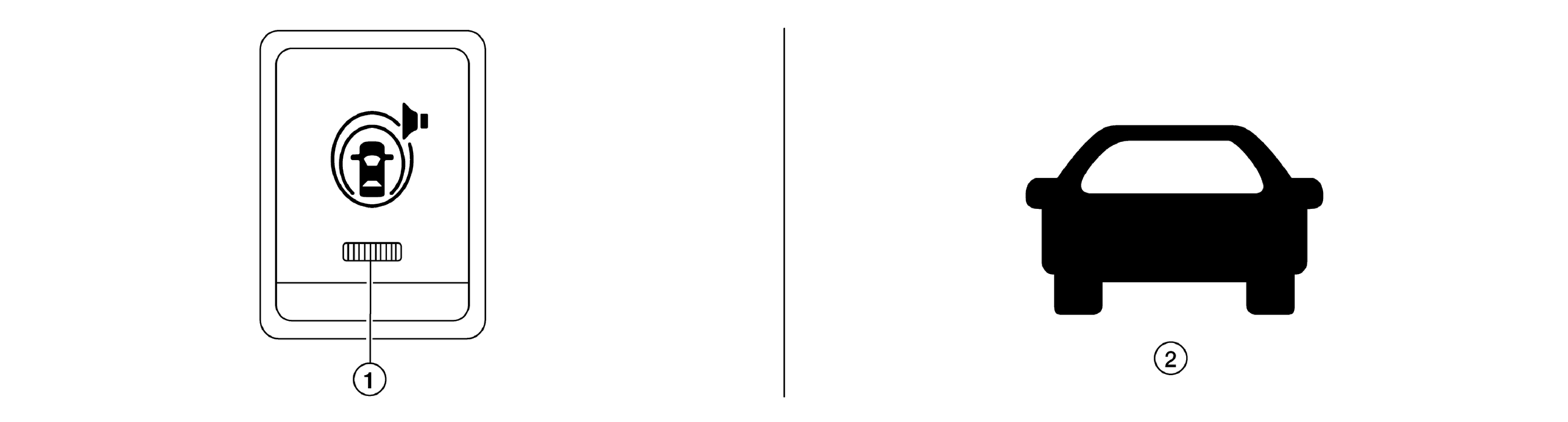

G08852489Courtesy of NISSAN NORTH AMERICA, INC.
No. Display item Description
1 Warning systems ON indicator
  • Indicates that the FCW system, LDW system, and/or BSW system is ON.
  • Blinks when the setting of LDW, FCW, and BSW are "OFF" and the warning systems switch is pressed.
2 Vehicle ahead detection indicator Vehicle ahead detection indicator blinks when the FCW system is activated
