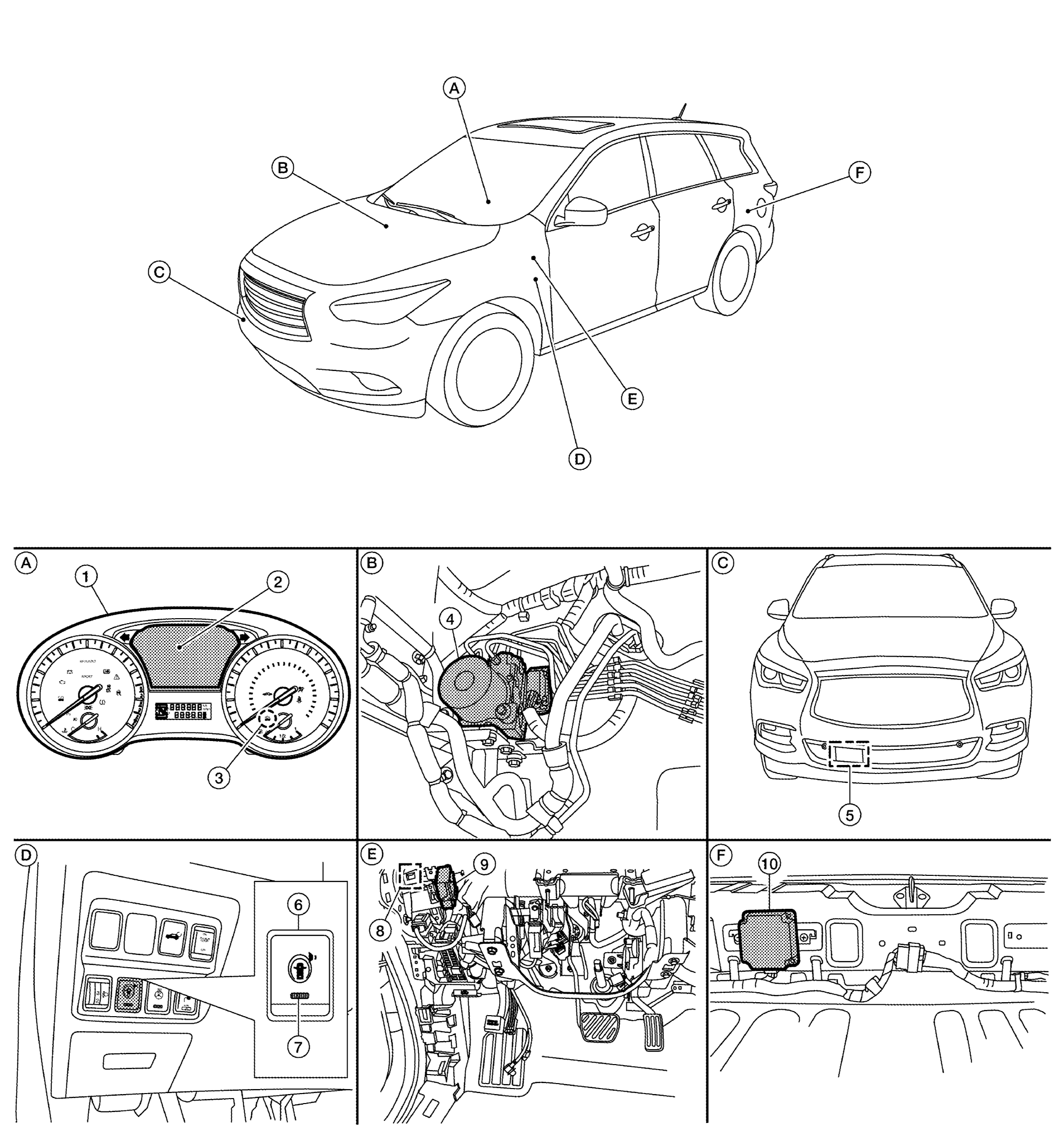

Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Combination meter Refer to COMPONENT DESCRIPTION . |
2. | Vehicle information display (On the combination meter) | 3. | IBA OFF indicator lamp |
| 4. | ABS actuator and electric unit (control unit) Refer to COMPONENT DESCRIPTION . |
5. | ICC sensor Refer to COMPONENT DESCRIPTION . |
6. | Warning system switch |
| 7. | Warning system ON indicator | 8. | Warning buzzer | 9. | Driver Assistance Buzzer Control Module |
| 10. | ADAS control unit (view of rear luggage room area with rear panel assembly removed) Refer to COMPONENT DESCRIPTION . |
