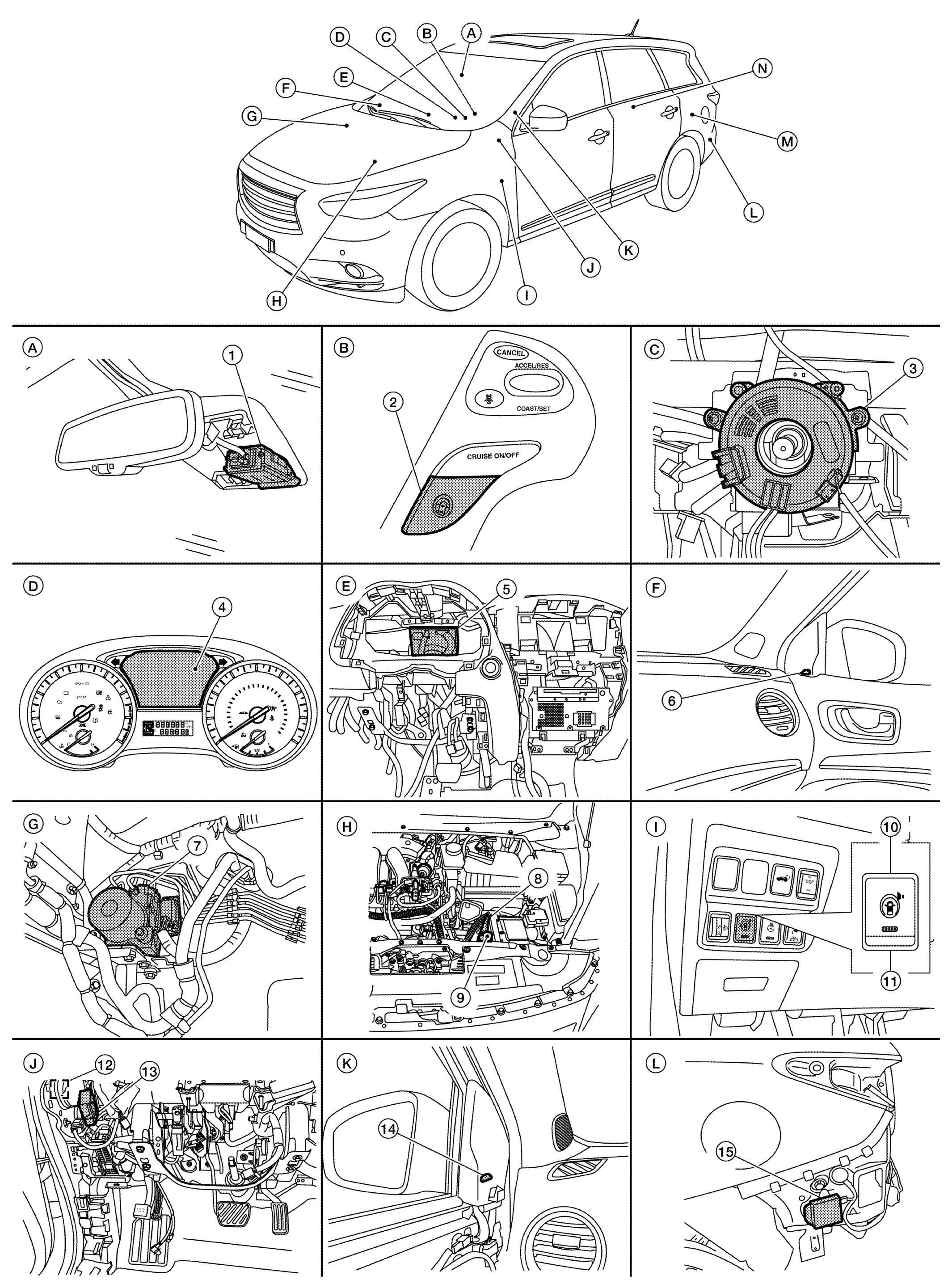

Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Lane camera unit | 2. | ICC steering switch | 3. | Steering angle sensor (view with steering wheel removed) |
| 4. | Vehicle information display | 5. | BCM (with the combination meter removed) | 6. | Blind Spot Warning/Blind Spot Intervention indicator RH |
| 7. | ABS actuator and electric unit (control unit) | 8. | ECM | 9. | TCM |
| 10. | Warning systems switch | 11. | Warning systems ON indicator | 12. | Warning buzzer (view with instrument lower panel LH removed) |
| 13. | Driver Assistance Buzzer Control Module | 14. | Blind Spot Warning/Blind Spot Intervention indicator LH | 15. | Side radar LH (view with rear bumper cover removed) |

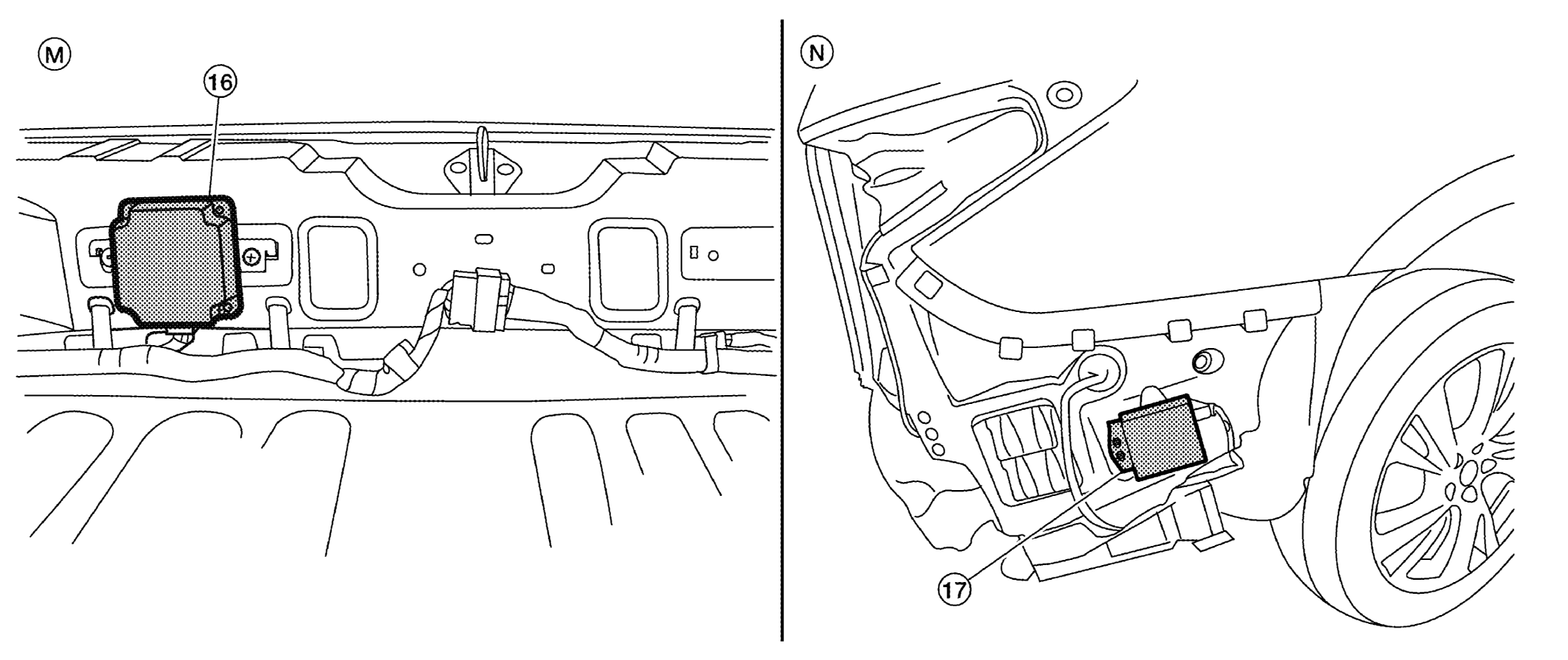

| 16. | ADAS control unit (view of rear luggage room area with rear panel assembly removed) |
17. | Side radar RH (view with rear bumper cover removed) |
