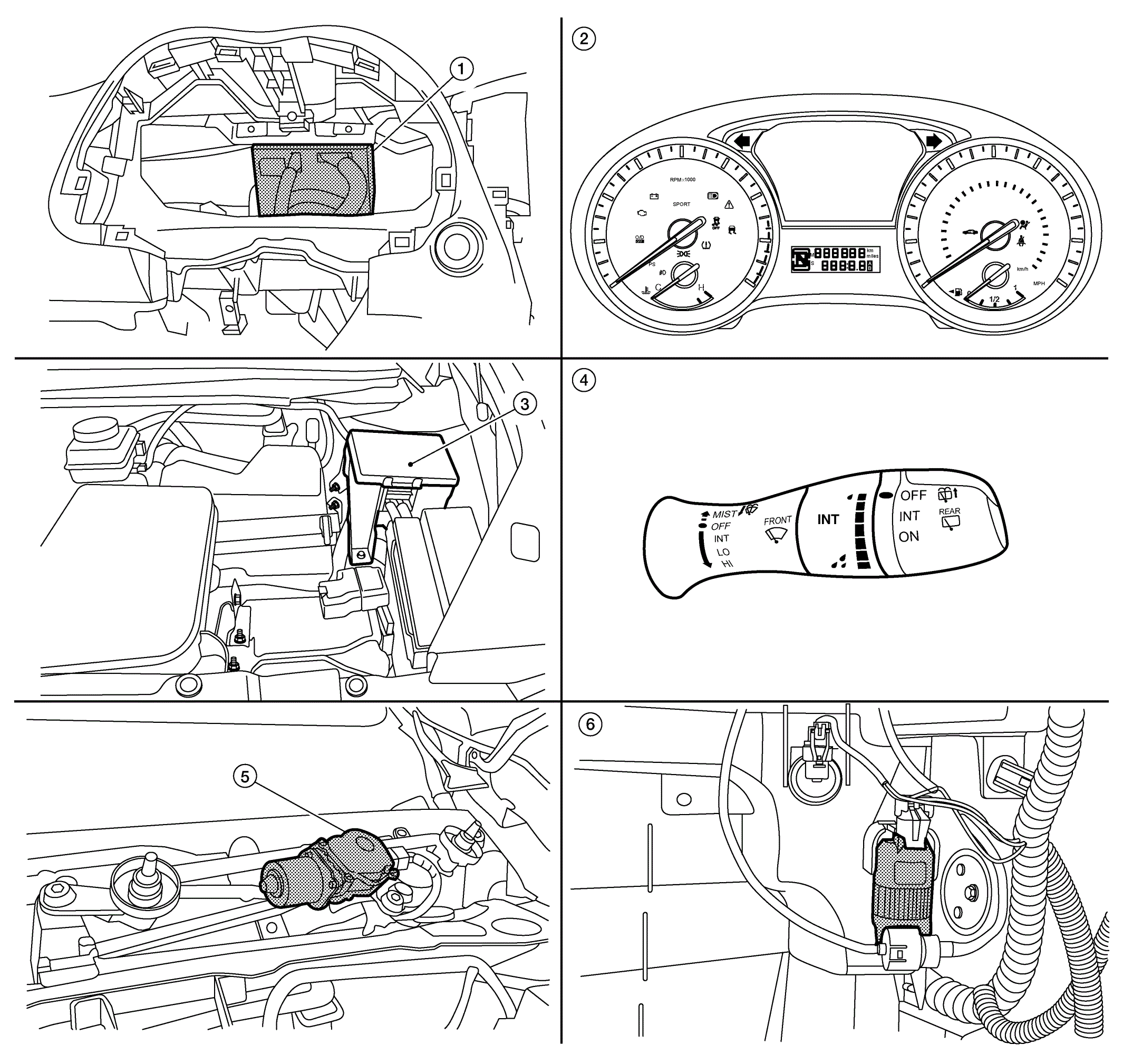

Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of
|
| 1. |
BCM (with the combination meter removed) |
2. |
Combination meter |
3. |
IPDM E/R |
| 4. |
Combination switch |
5. |
Front wiper motor (with the wiper cowl removed) |
6. |
Front and rear washer motor |
