Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

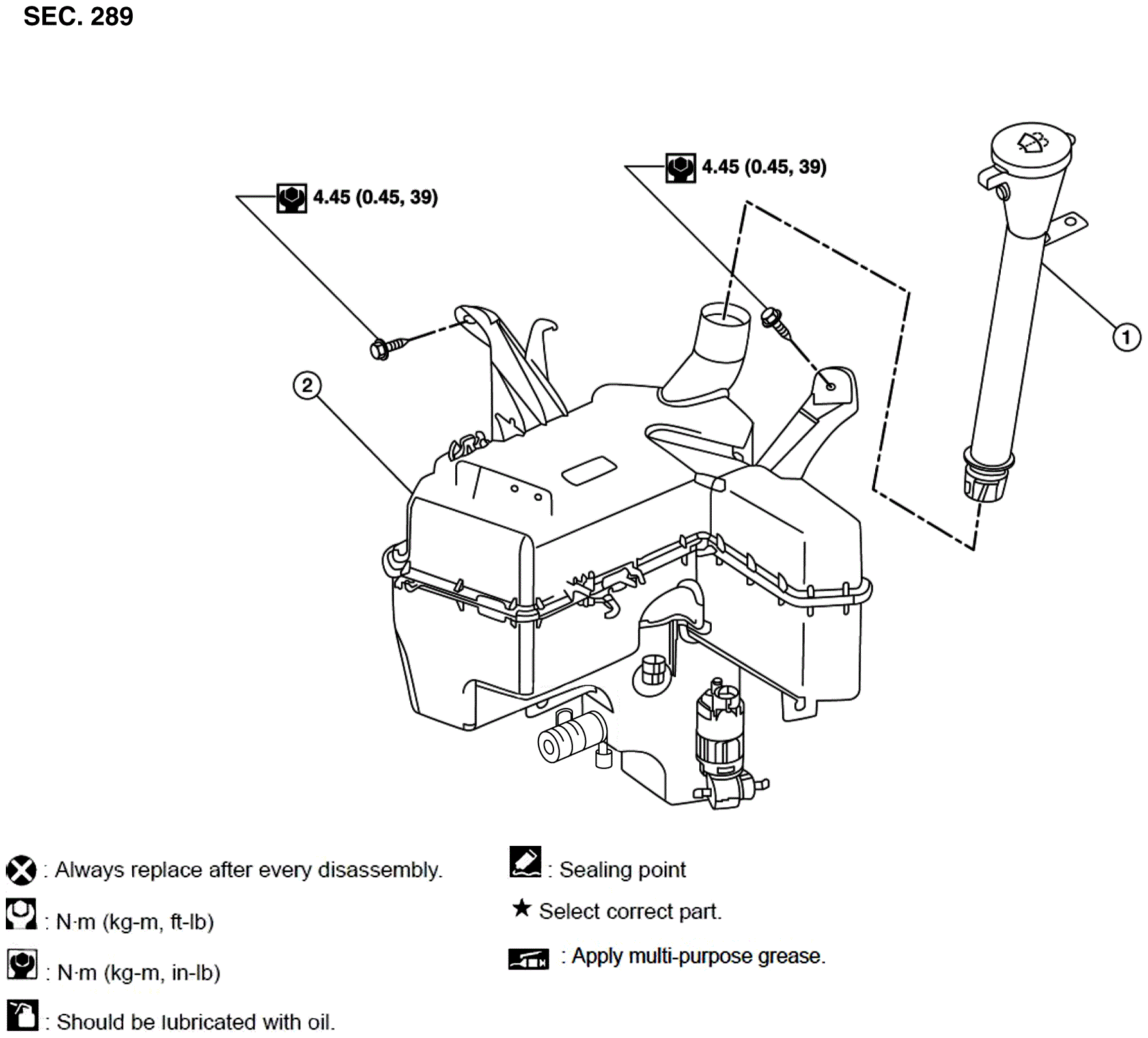

Fig 1: Washer Tank With Torque Specifications
GNSALLIA1125GB-125Courtesy of NISSAN NORTH AMERICA, INC.
1. Washer tank inlet 2. Washer tank
