Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

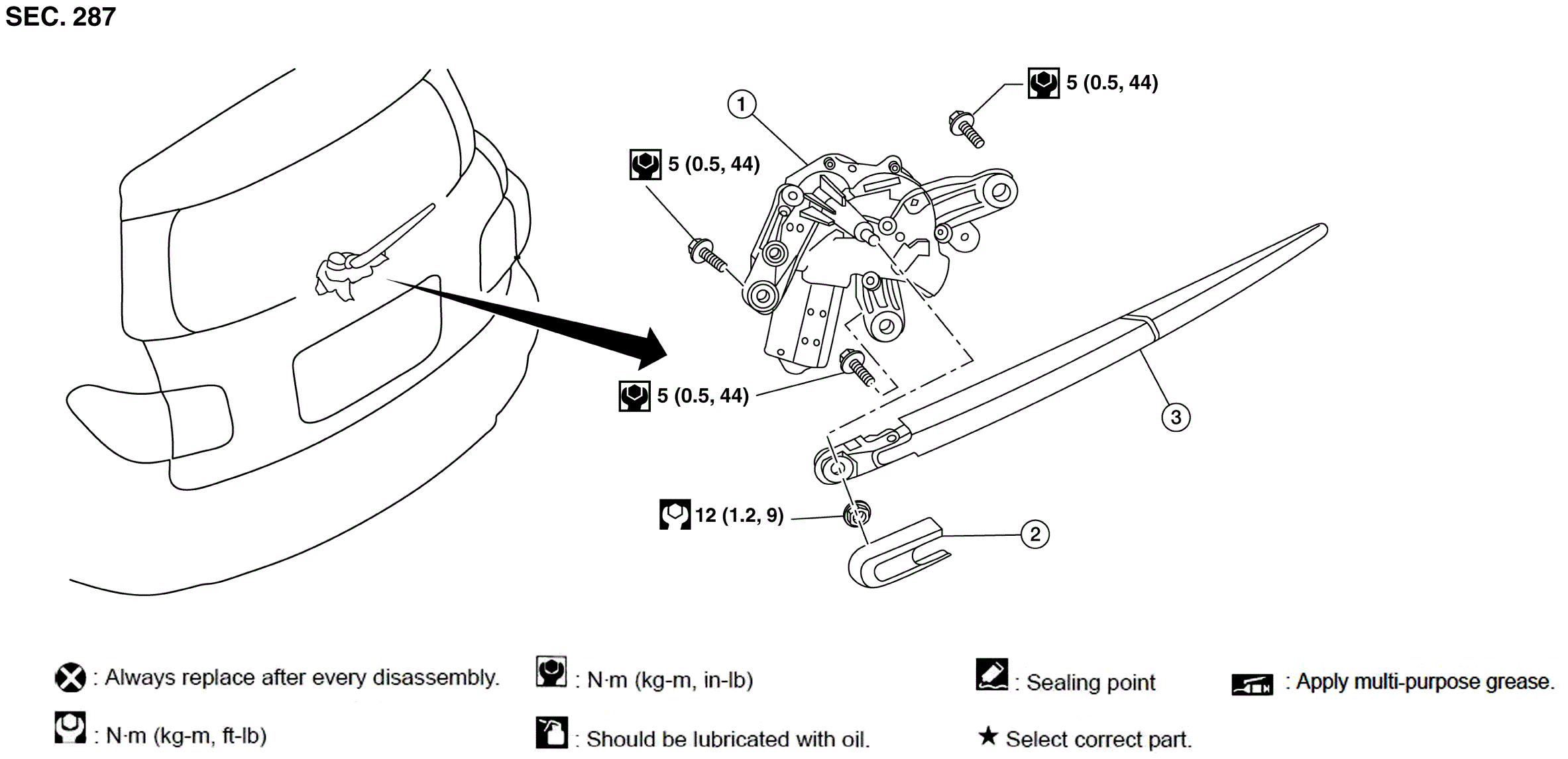

Fig 1: Rear Wiper Motor With Torque Specifications
GNSAWLIA1953GB-953Courtesy of NISSAN NORTH AMERICA, INC.
1. Rear wiper motor 2. Rear wiper arm cover 3. Rear wiper arm
