Rear Wiper Arm: Adjustment

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

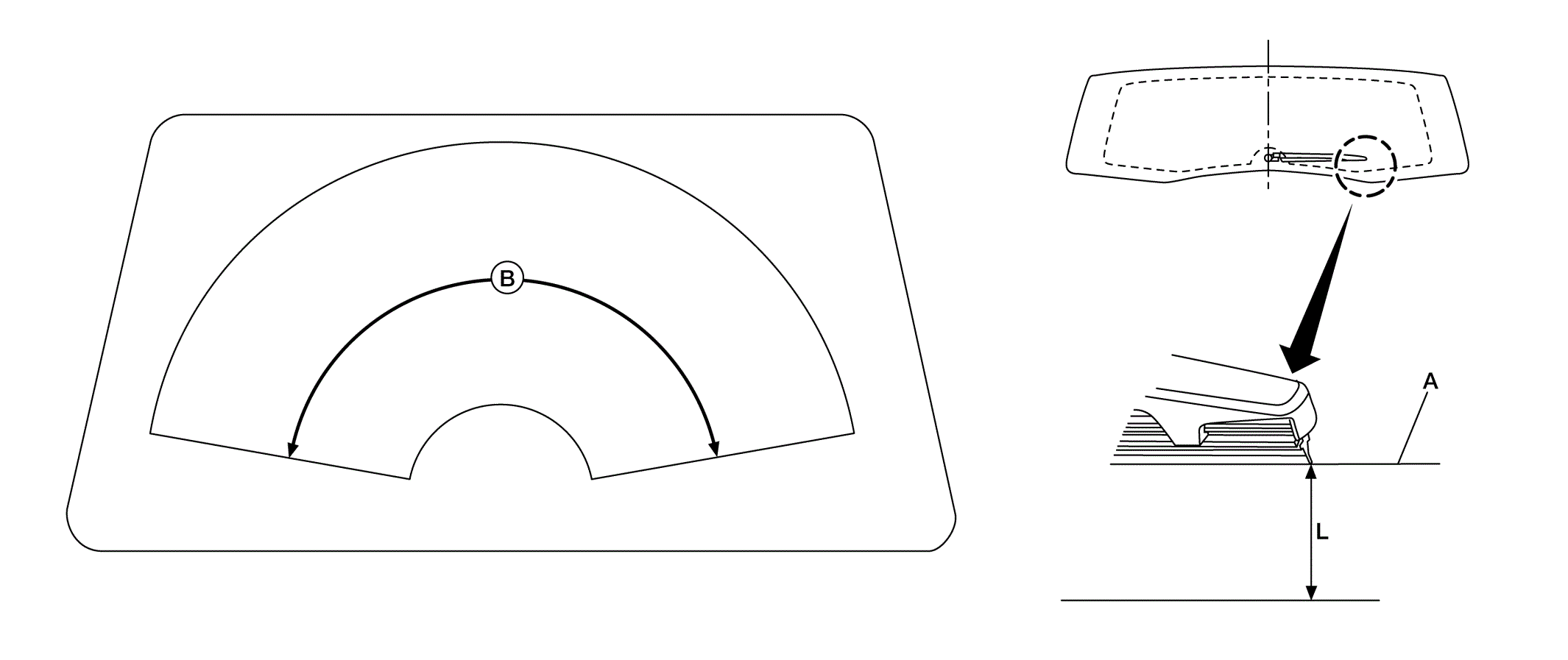

GNSAWLIA1952ZZ-952Courtesy of
A. Defrosting wire B. 163°+- 3°

Position the wiper blade on top of the defrosting wire (A).

L: 50 +- 7.5 mm (1.968 +- 0.295 in)
