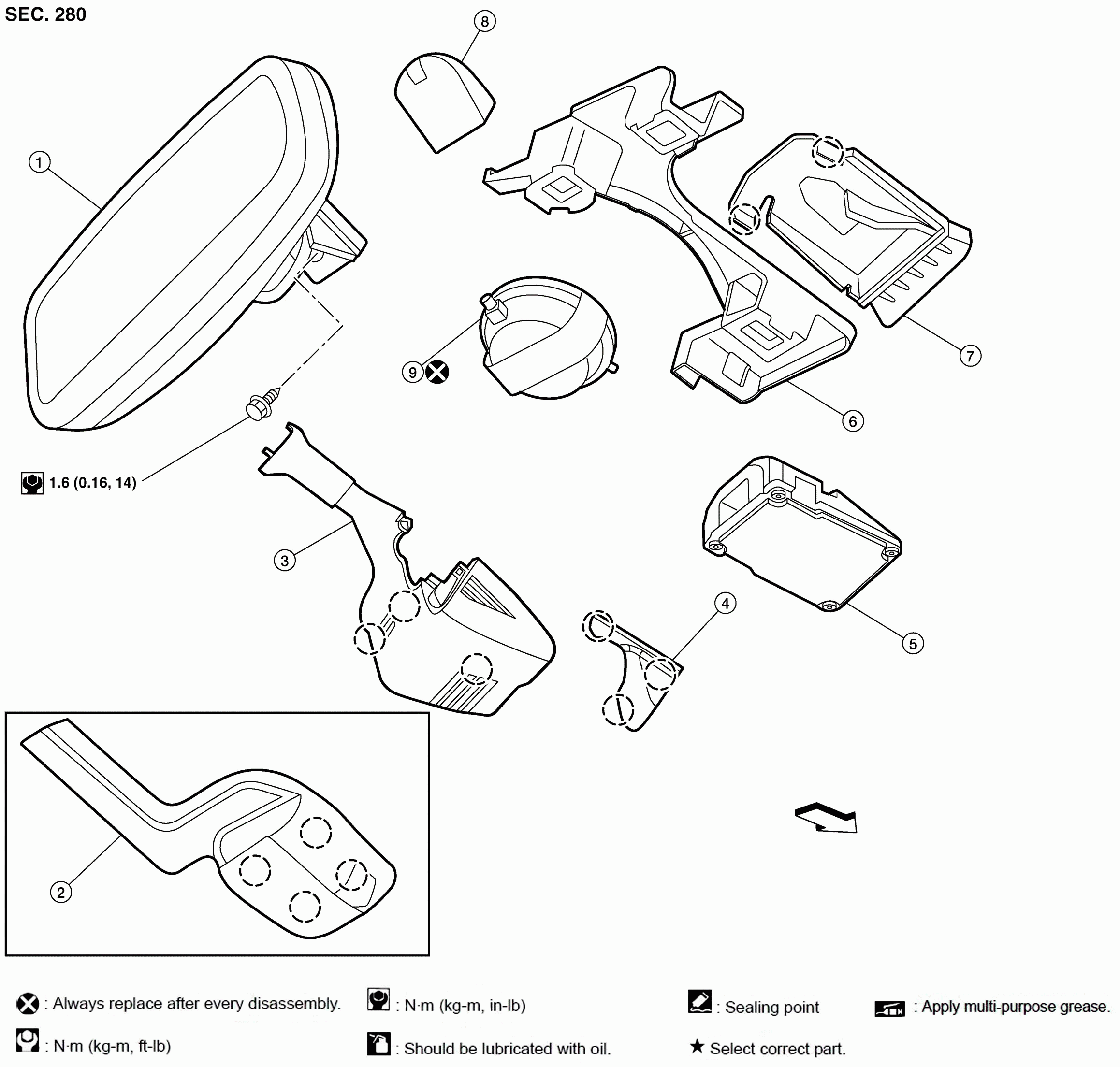

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Inside mirror | 2. | Rain sensor cover (without lane departure warning) | 3. | Lane camera cover [RH (with lane departure warning)] |
| 4. | Lane camera cover [LH (with lane departure warning)] | 5. | Lane camera (if equipped) | 6. | Lane camera cover bracket (if equipped) |
| 7. | Lane camera bracket (if equipped) | 8. | Mirror base | 9. | Rain sensor |
| Pawl | Front |
