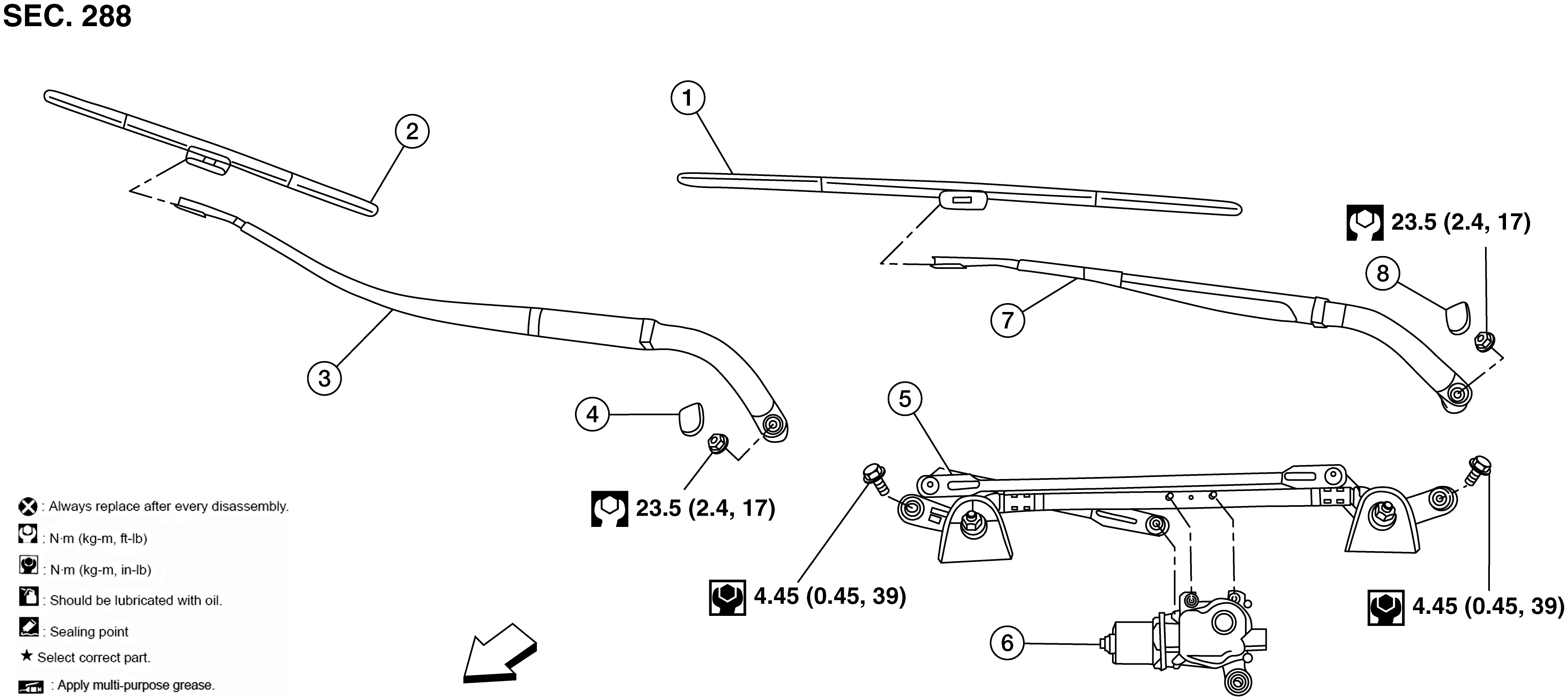

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Front wiper blade (LH) |
2. |
Front wiper blade (RH) |
3. |
Front wiper arm (RH) |
| 4. |
Front wiper arm cap (RH) |
5. |
Front wiper drive assembly |
6. |
Front wiper motor |
| 7. |
Front wiper arm (LH) |
8. |
Front wiper arm cap (LH) |
 |
Front |
