Wiper Blade Position Adjustment
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

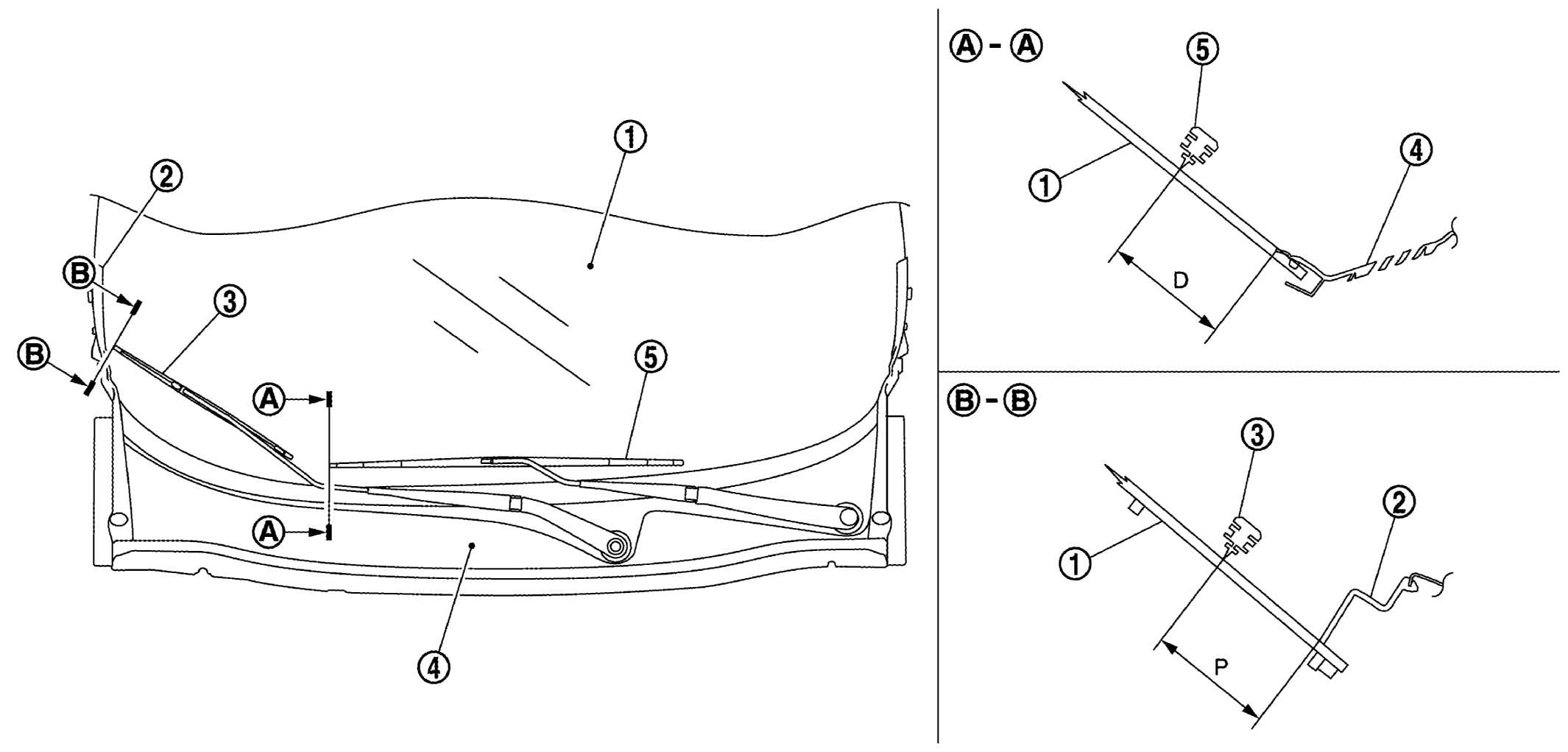

Clearance between the end of cowl top cover/ front fender cover and the top of front wiper blade center.
| 1. | Windshield glass | 2. | Front fender cover | 3. | Front wiper blade (RH) |
| 4. | Cowl top cover | 5. | Front wiper blade (LH) |
STANDARD CLEARANCE
| D | : 72.0 +- 7.5 mm (2.05 +- 0.30 in) |
| P | : 52.0 +- 7.5 mm (2.83 +- 0.30 in) |
