Washer Tube Layout

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

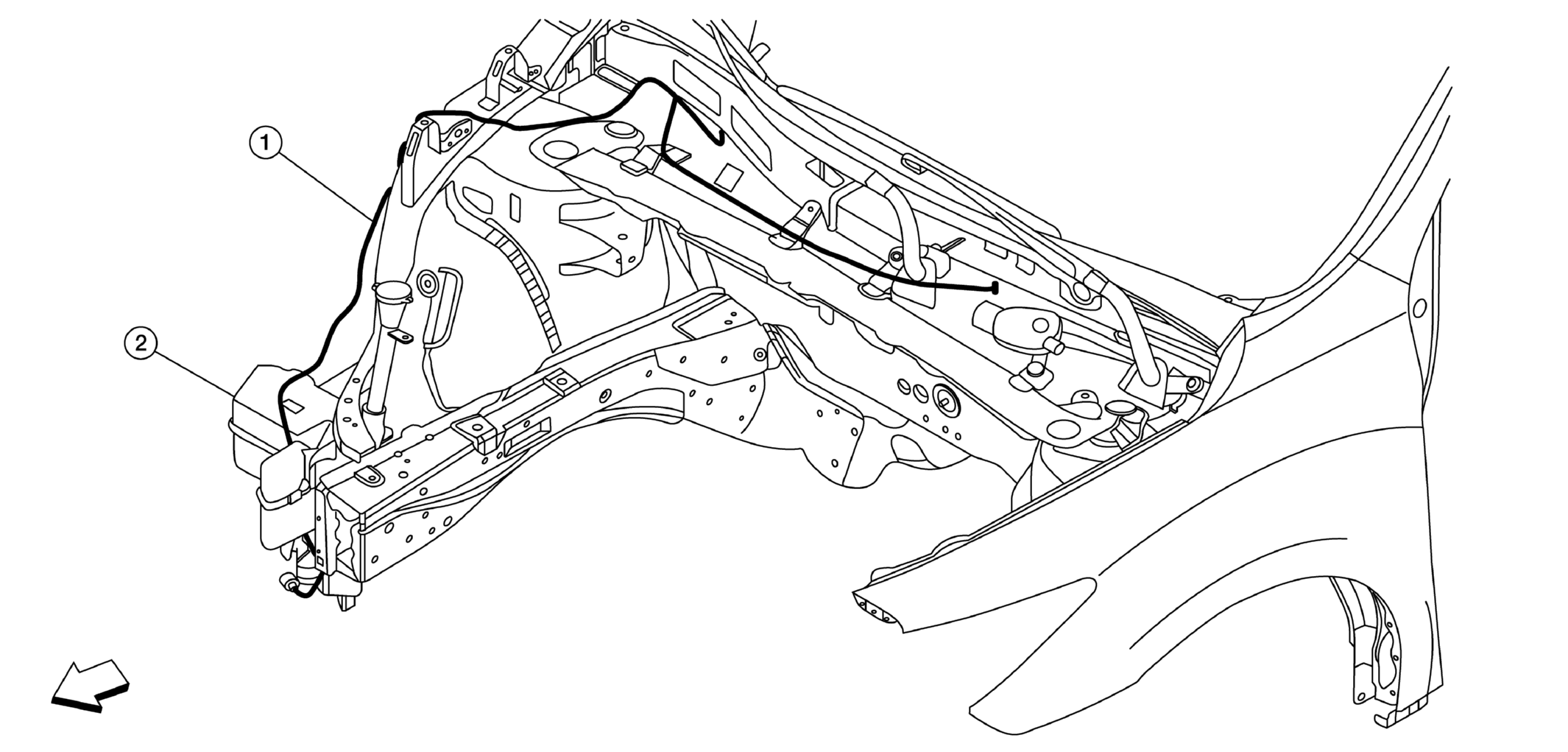

GNSALLIA1098ZZ-098Courtesy of
1. Front washer tube 2. Washer tank ARROW Front
