Removal And Installation - Front Washer Nozzle: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cowl top cover. Refer to REMOVAL AND INSTALLATION .
  2. Disconnect the front washer tube from the front washer nozzle.
  3. While releasing the pawls on the sides of the front washer nozzle (1), remove front washer nozzle from cowl top cover.

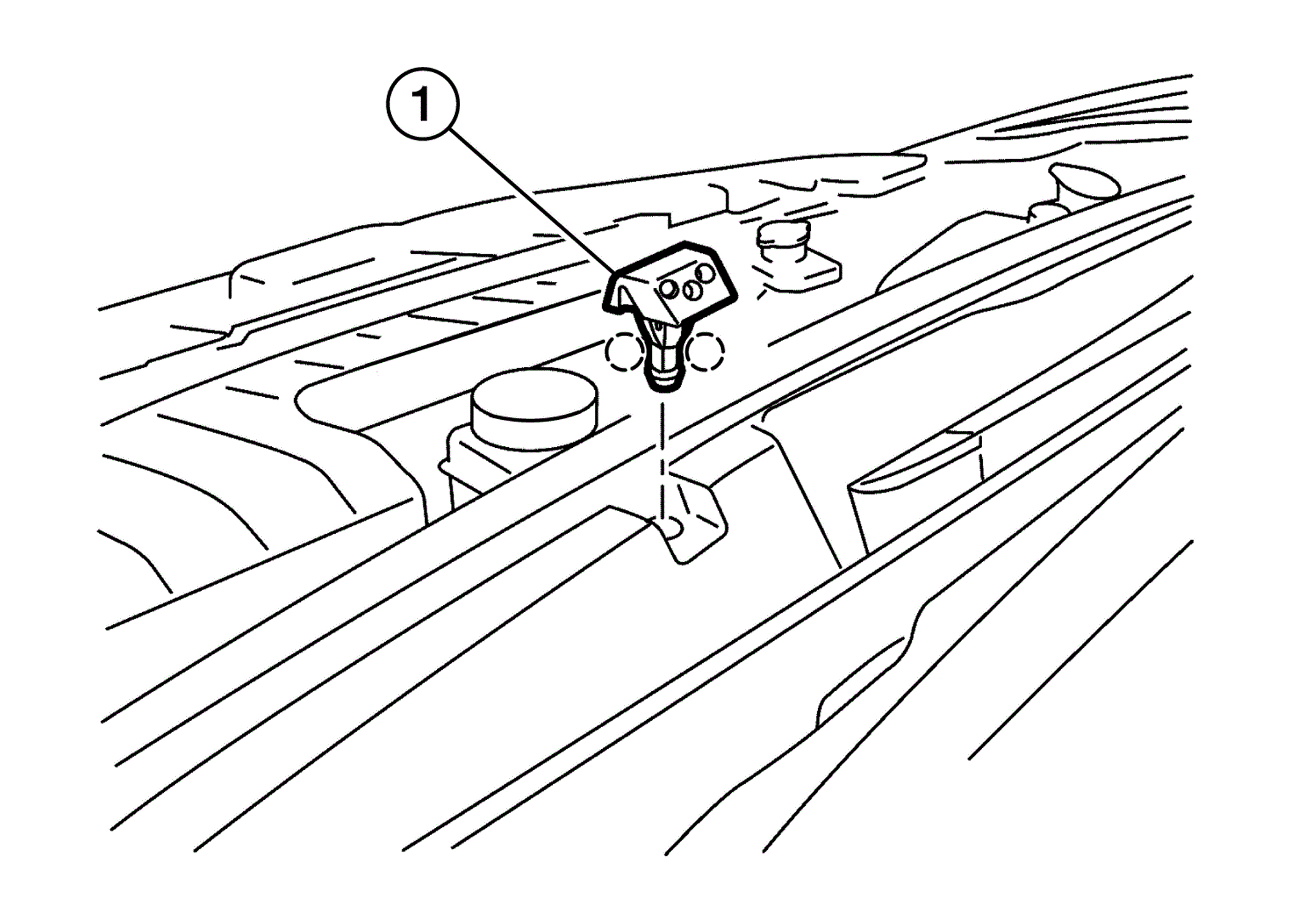

    GNSAWLIA1950ZZ-950Courtesy of

    MARU-H : Pawl
