Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

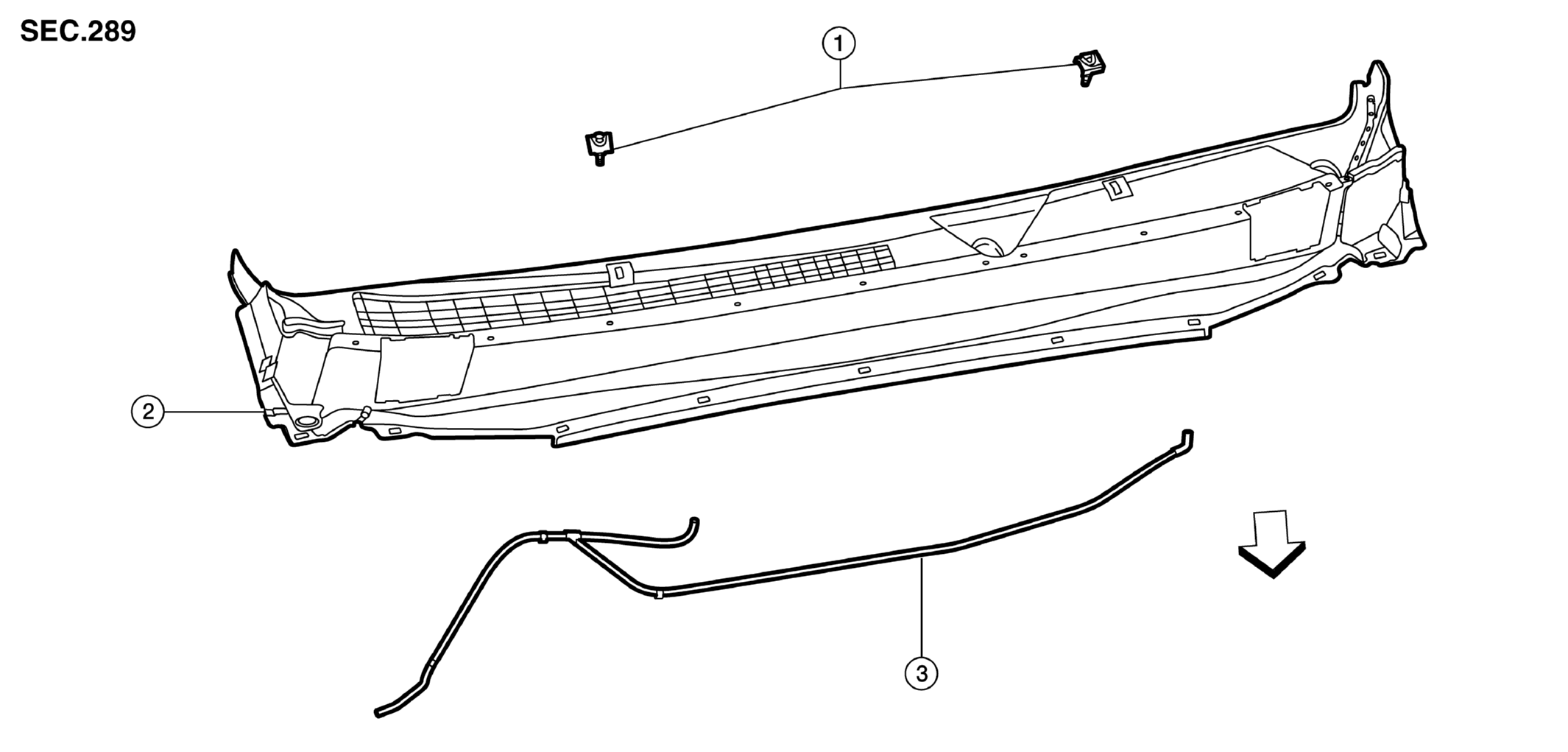

GNSALLIA1110ZZ-110Courtesy of
1. Front washer nozzle 2. Cowl top cover 3. Front washer tube
ARROW Front
