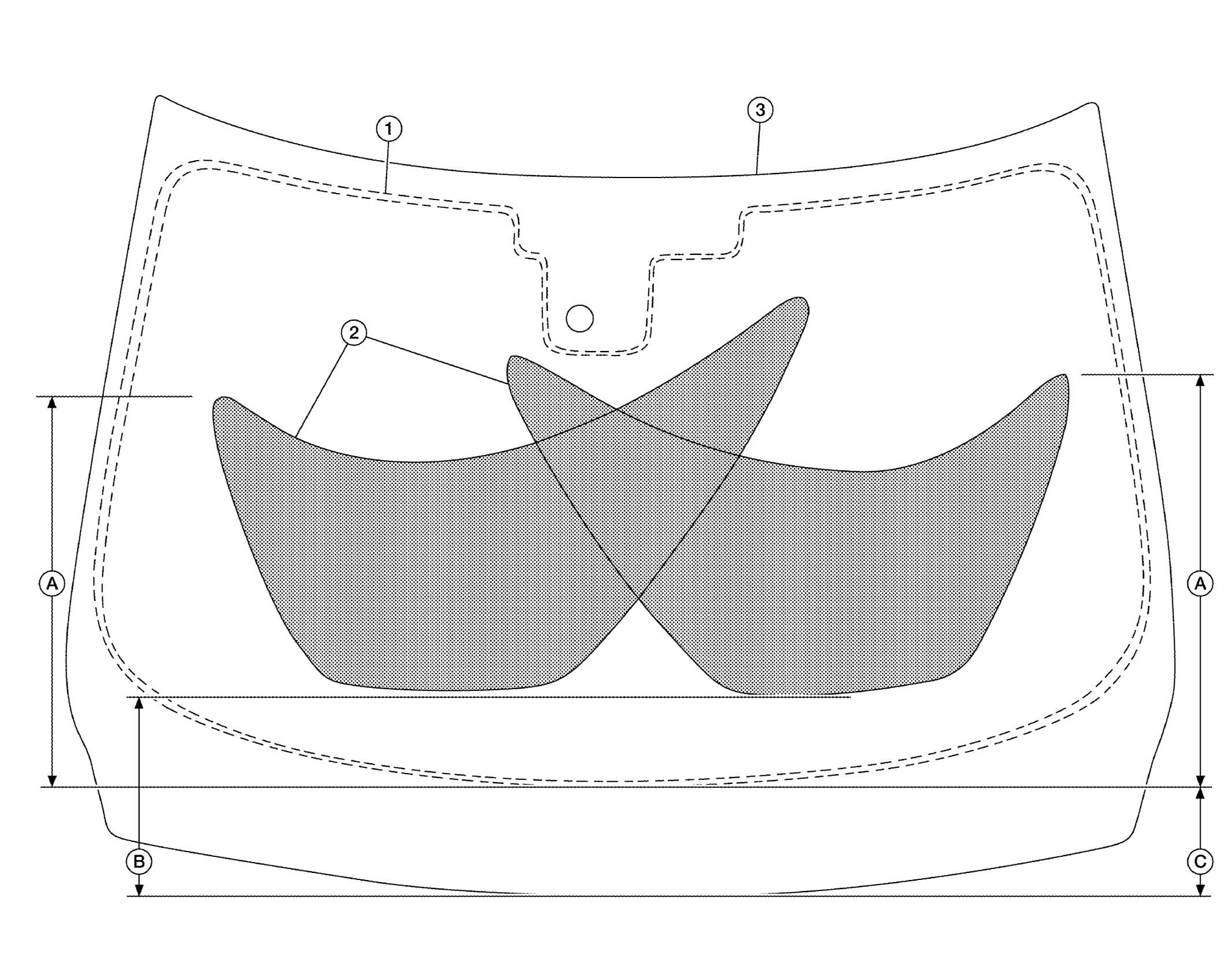

Washer Nozzle Spray Pattern

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of

1.	Black print area	2.	Washer fluid spray pattern	3.	Windshield glass
A.	445.0 mm (17.5 in)	B.	274 mm (10.8 in)	C.	148 mm (5.8 in)
