Washer Nozzle Adjustment
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of
|

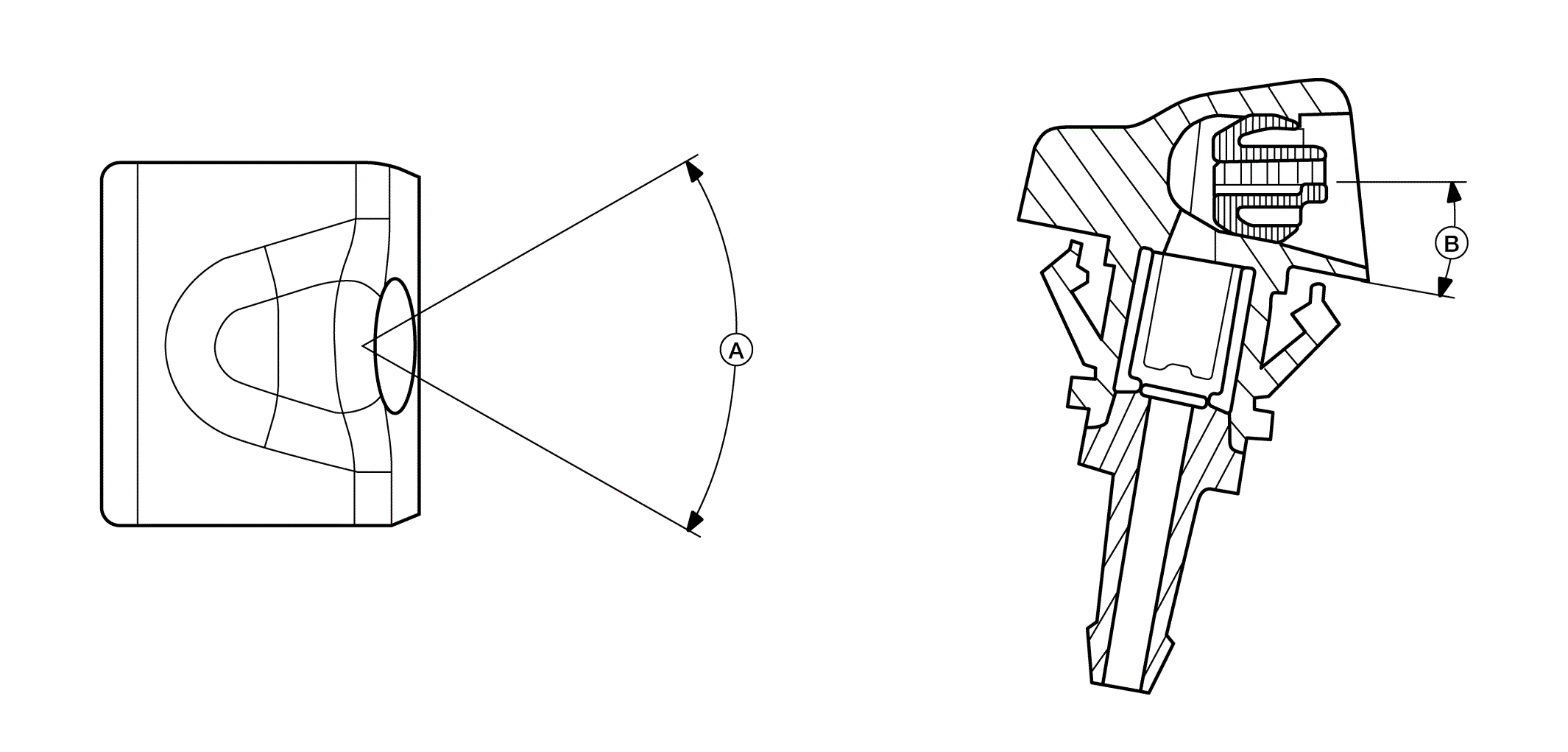

| A. |
60°+- 7.5° |
B. |
11.0°+- 1.0° |
- Insert a suitable tool (A) into the spray opening (1) and move up/down and left/right to adjust the spray position.
 Courtesy of
|
NOTE:
If wax or dust gets into the nozzle, remove wax or dust with a suitable tool (A).
