Wiring Diagram - Ignition Power Supply -

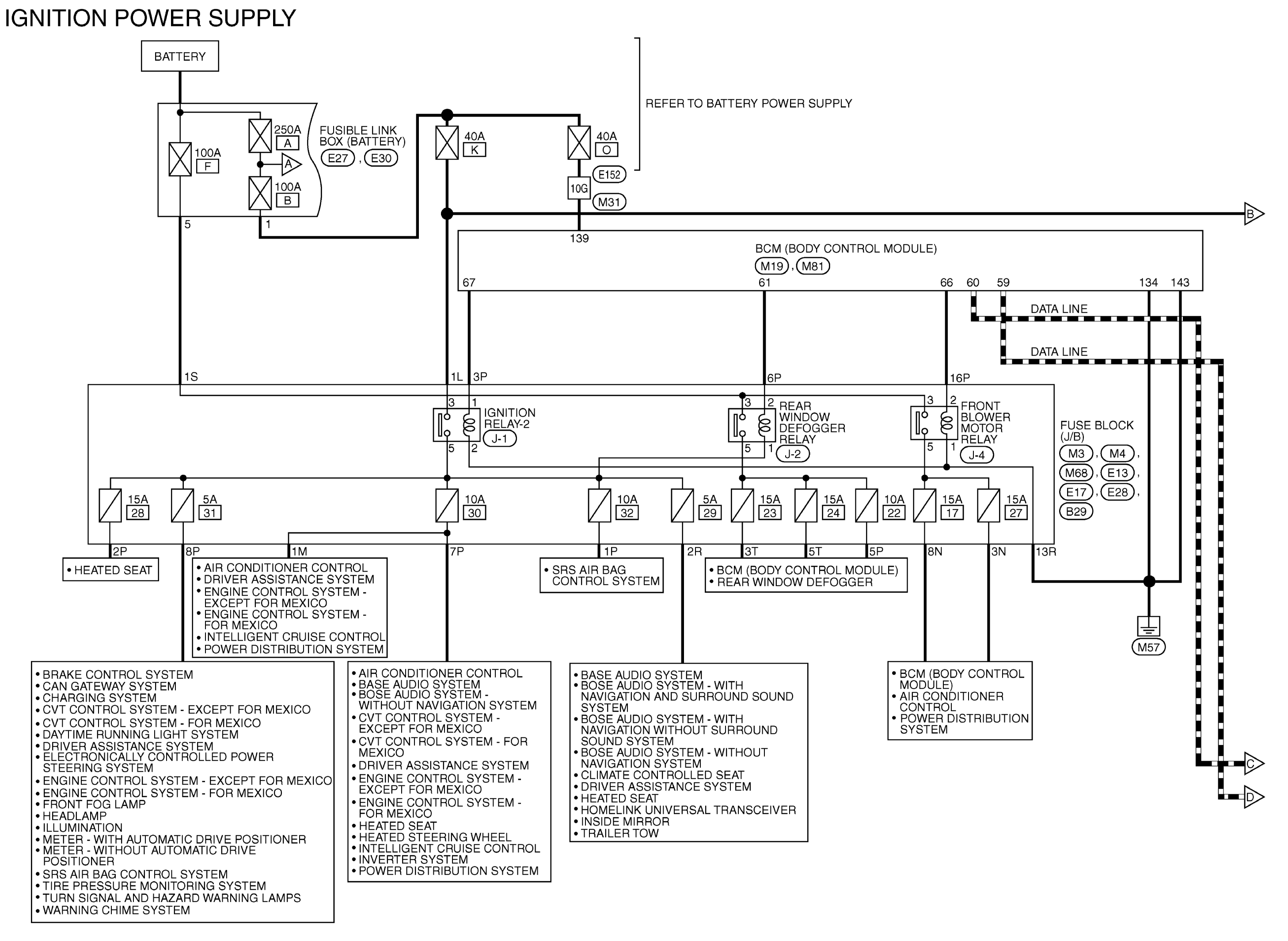

Fig 1: Ignition Power Supply Wiring Diagram (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

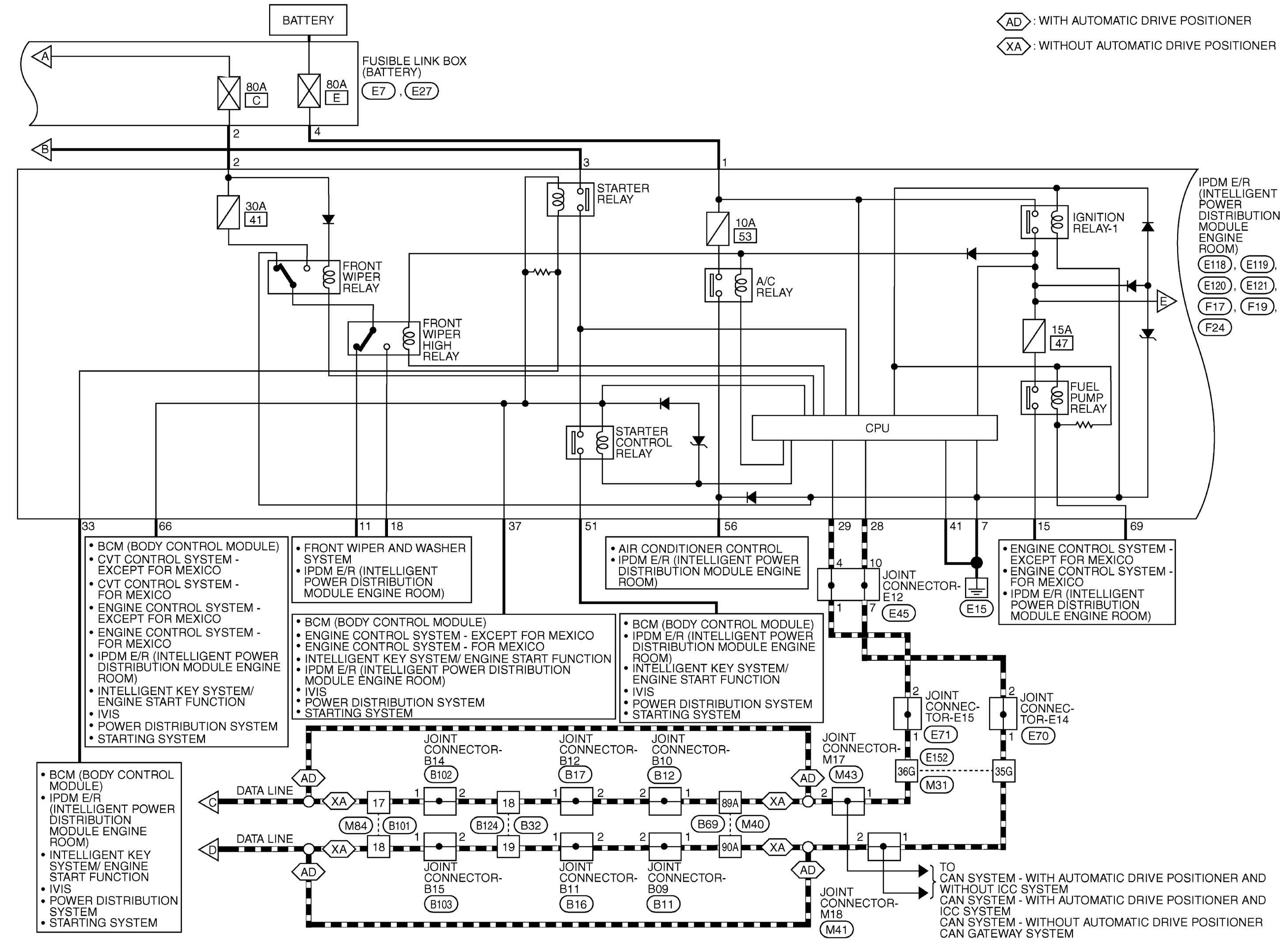

Fig 2: Ignition Power Supply Wiring Diagram (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

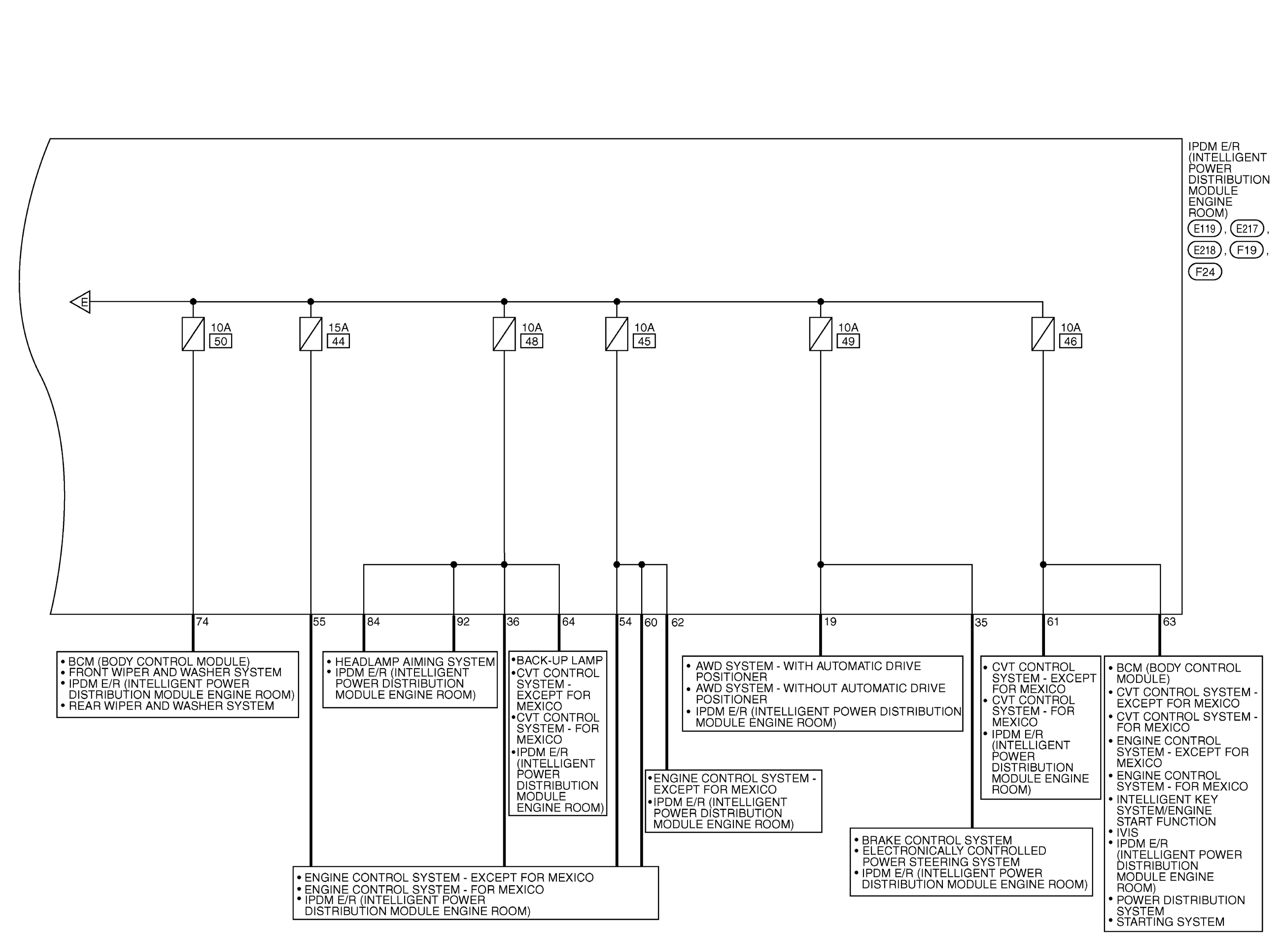

Fig 3: Ignition Power Supply Wiring Diagram (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Ignition Power Supply Connector End Views (1 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Ignition Power Supply Connector End Views (2 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Ignition Power Supply Connector End Views (3 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Ignition Power Supply Connector End Views (4 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

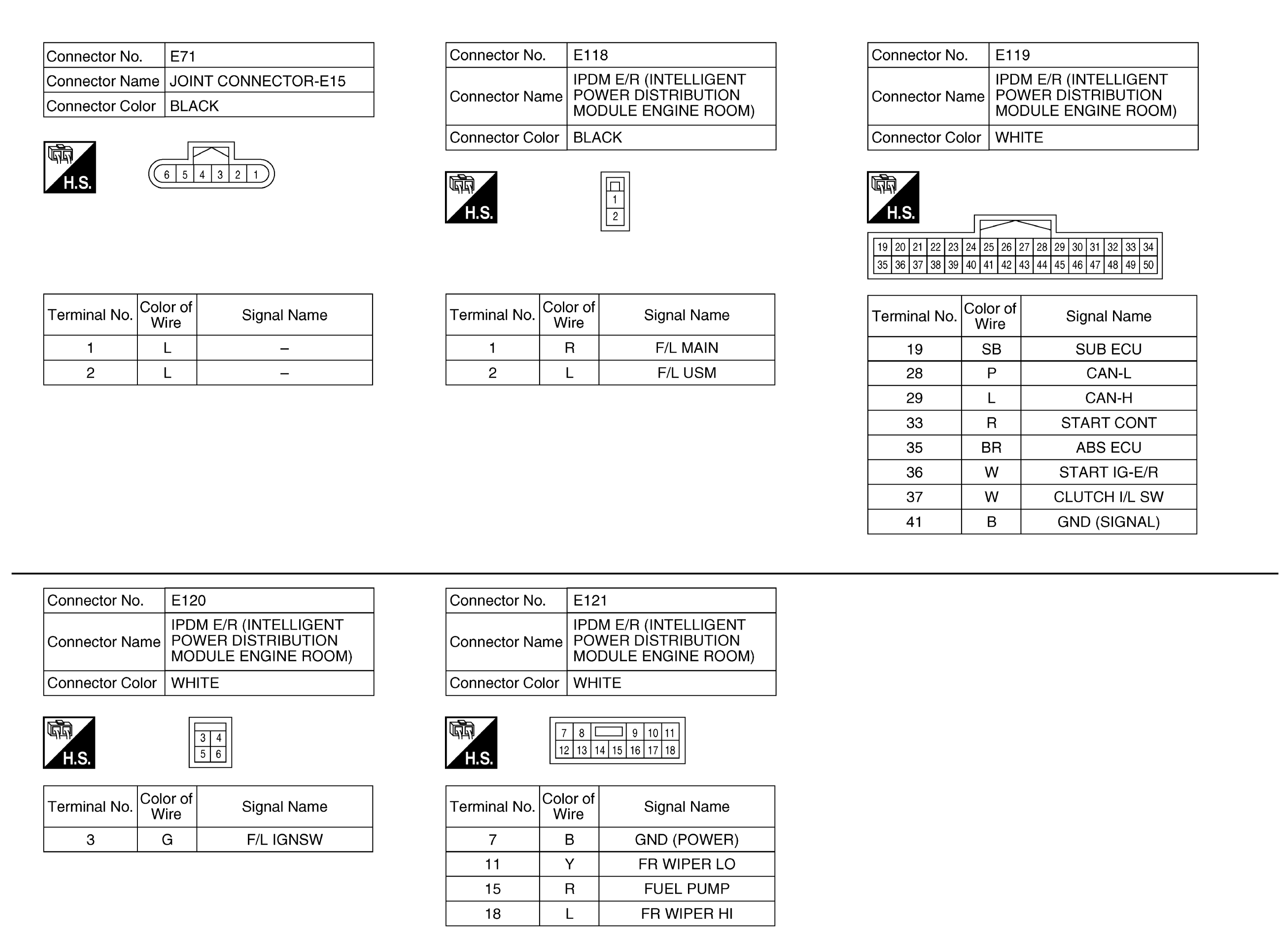

Fig 8: Ignition Power Supply Connector End Views (5 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

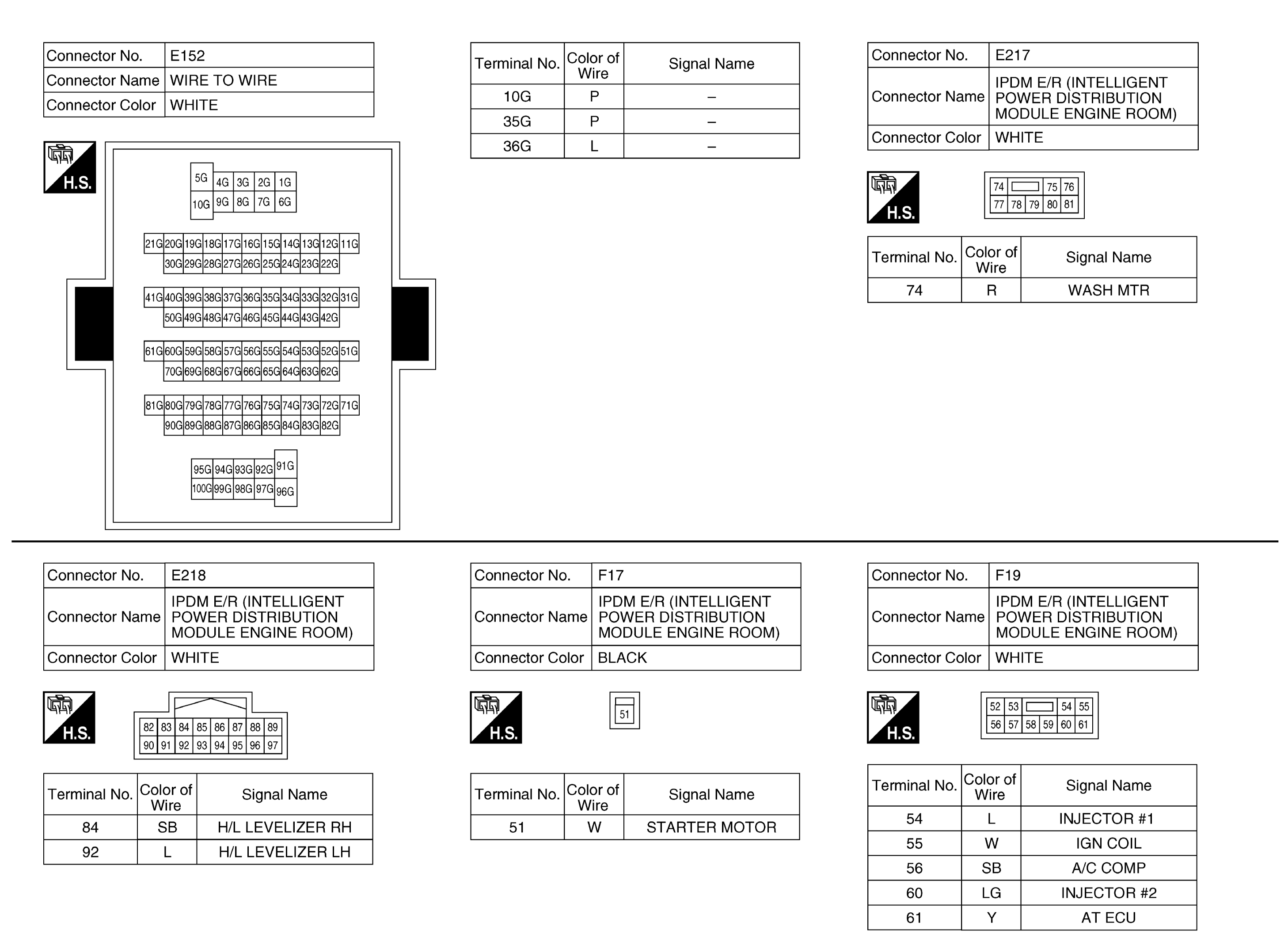

Fig 9: Ignition Power Supply Connector End Views (6 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

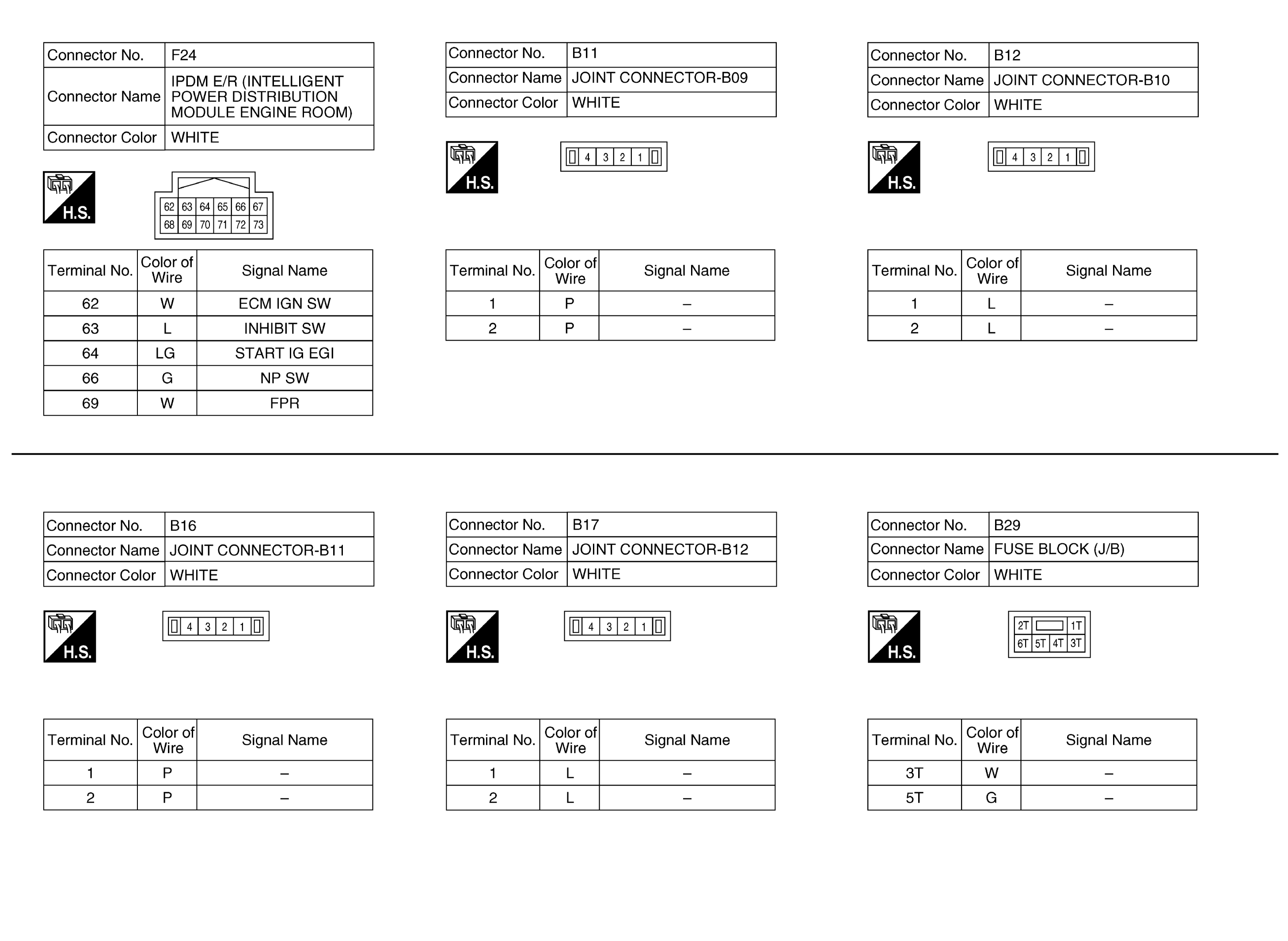

Fig 10: Ignition Power Supply Connector End Views (7 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

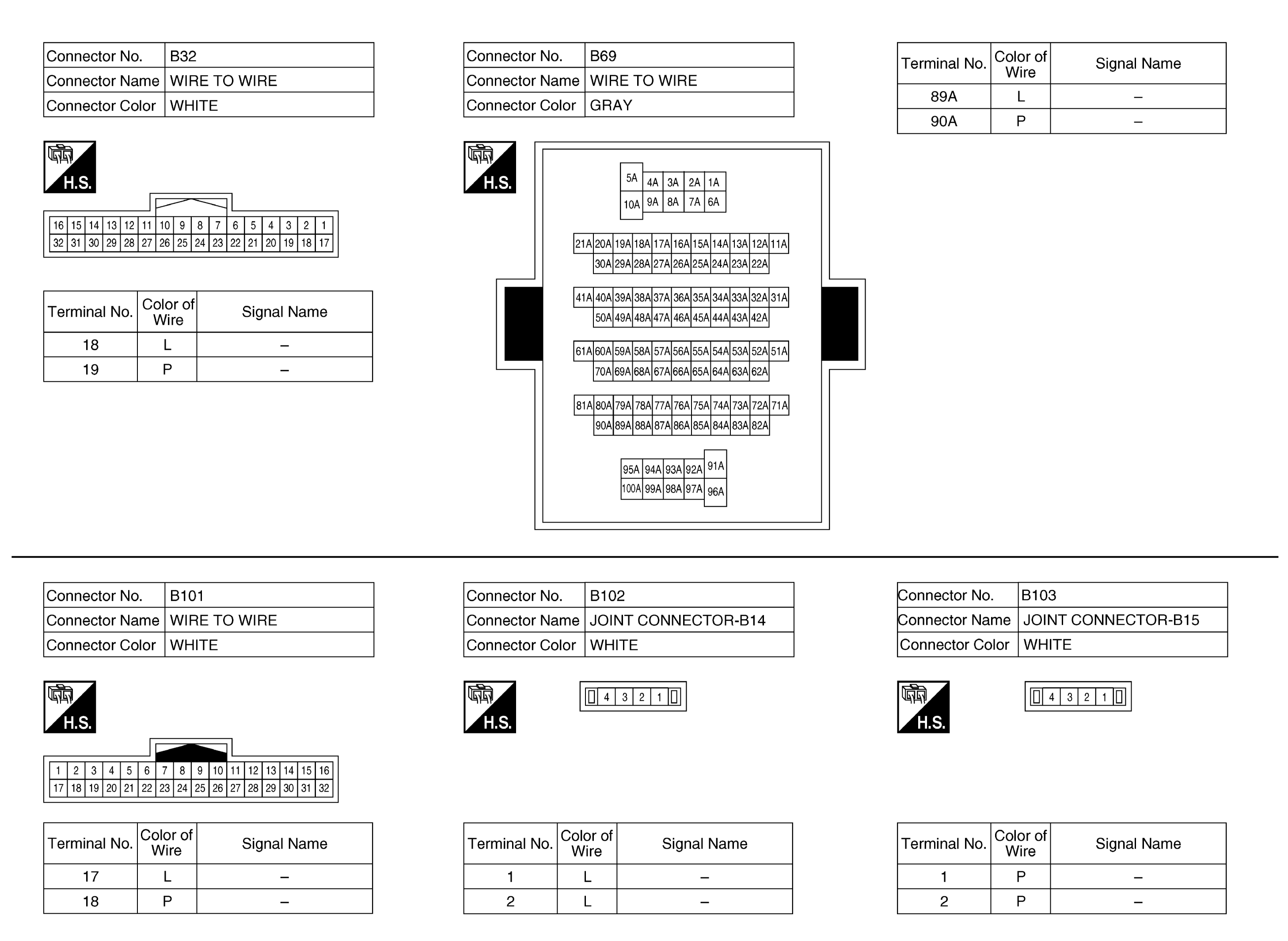

Fig 11: Ignition Power Supply Connector End Views (8 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

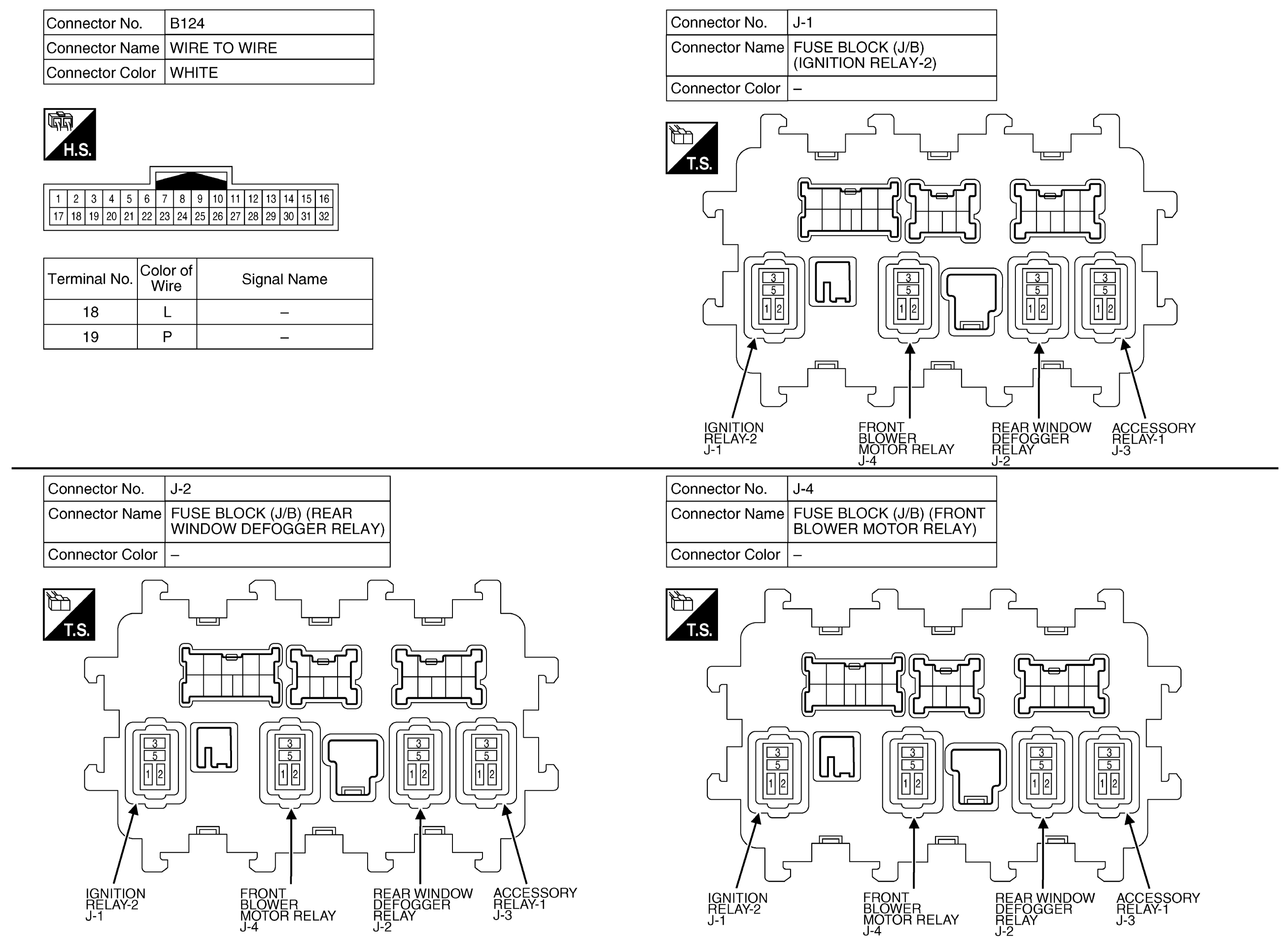

Fig 12: Ignition Power Supply Connector End Views (9 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.
