Wiring Diagram - Battery Power Supply -

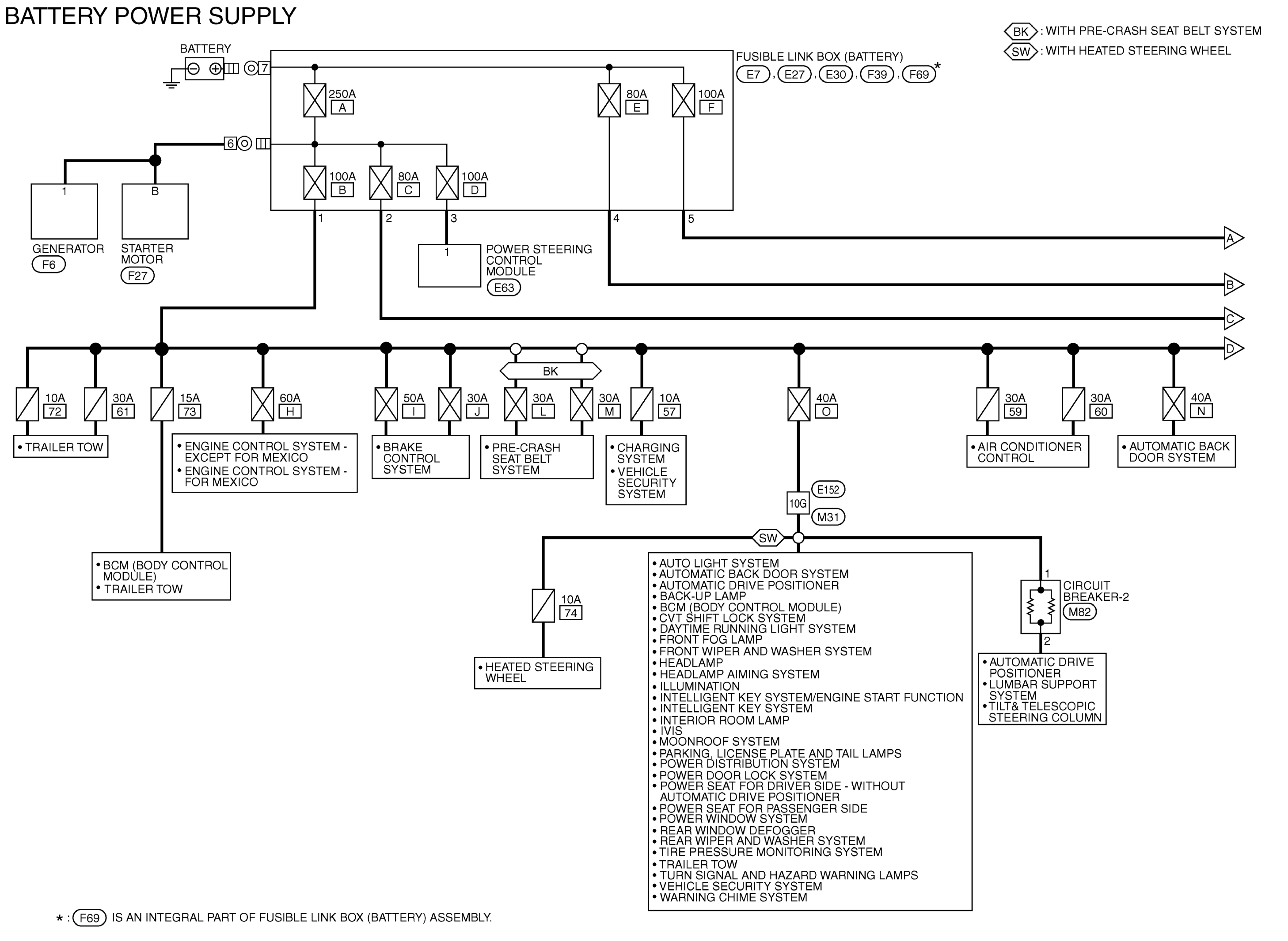

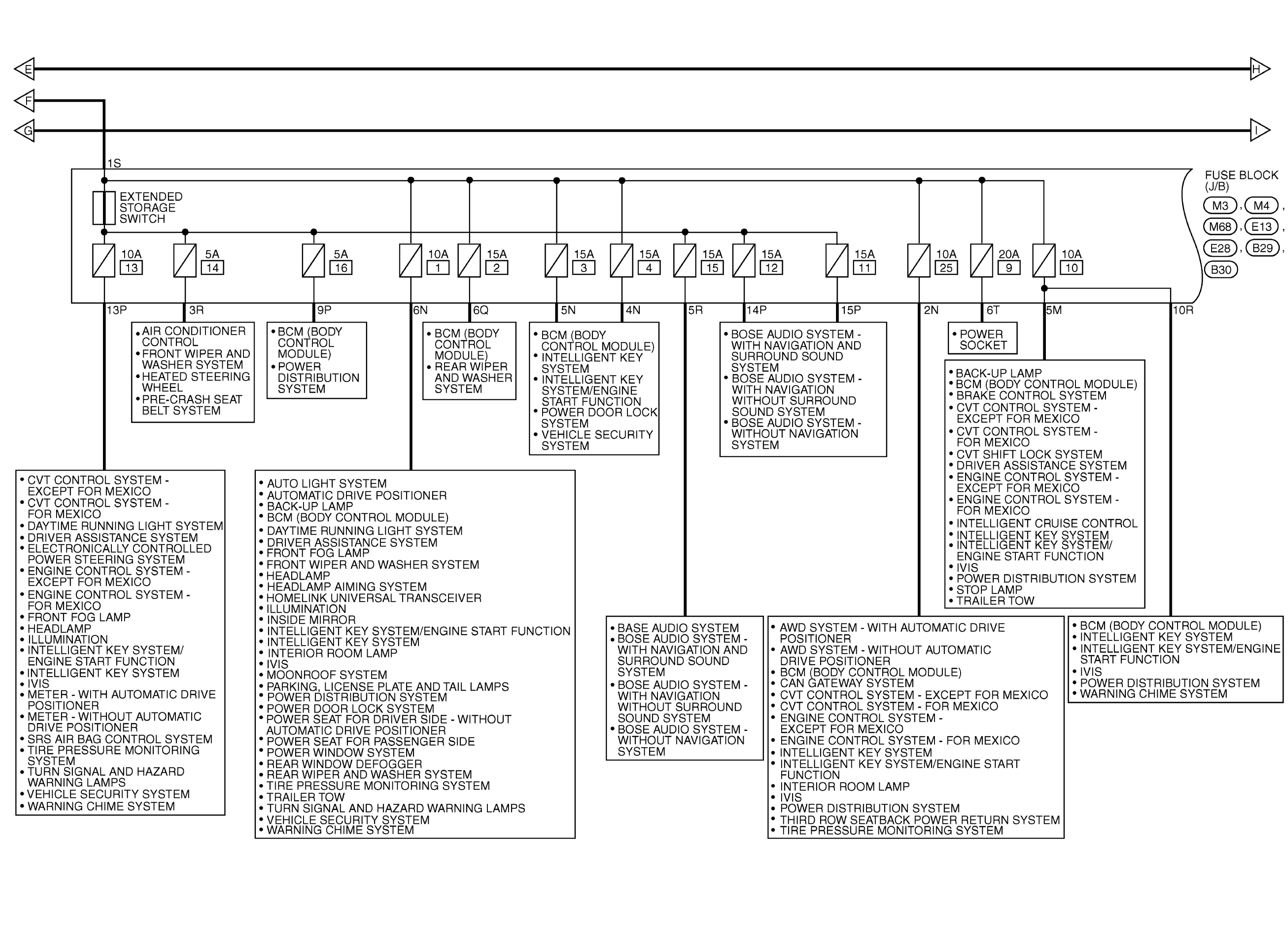

Fig 1: Battery Power Supply Wiring Diagram (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

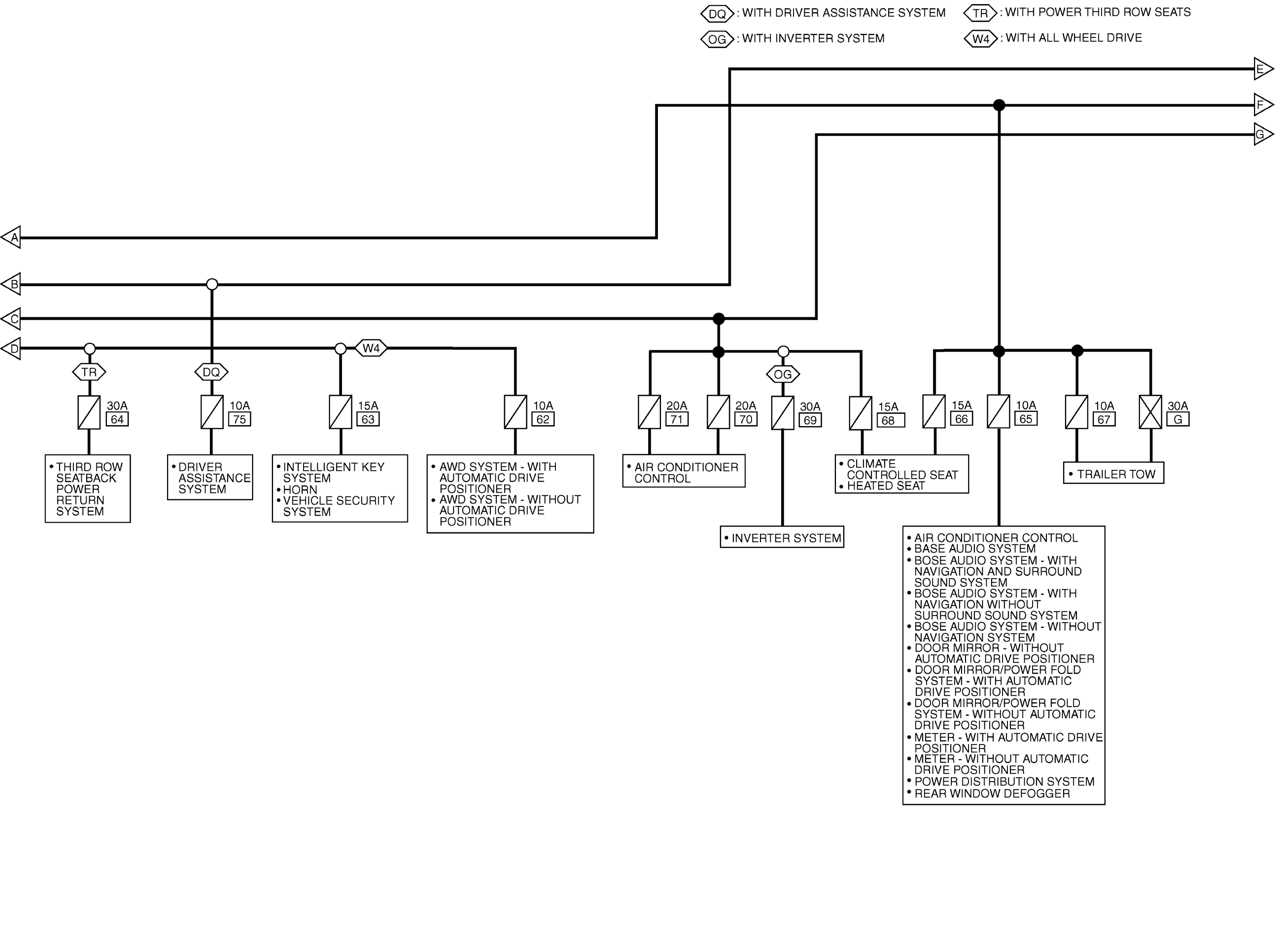

Fig 2: Battery Power Supply Wiring Diagram (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

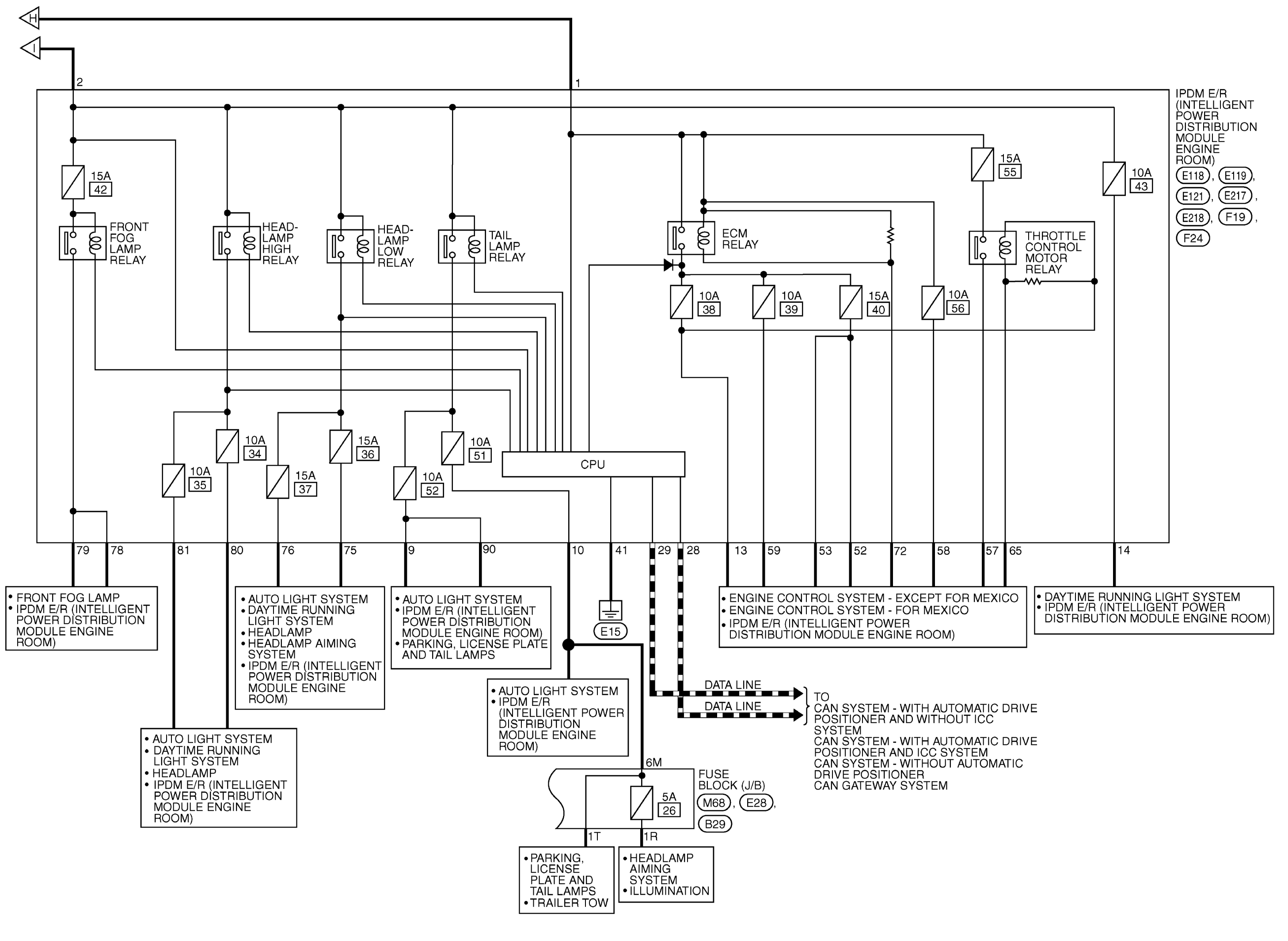

Fig 3: Battery Power Supply Wiring Diagram (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Battery Power Supply Wiring Diagram (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

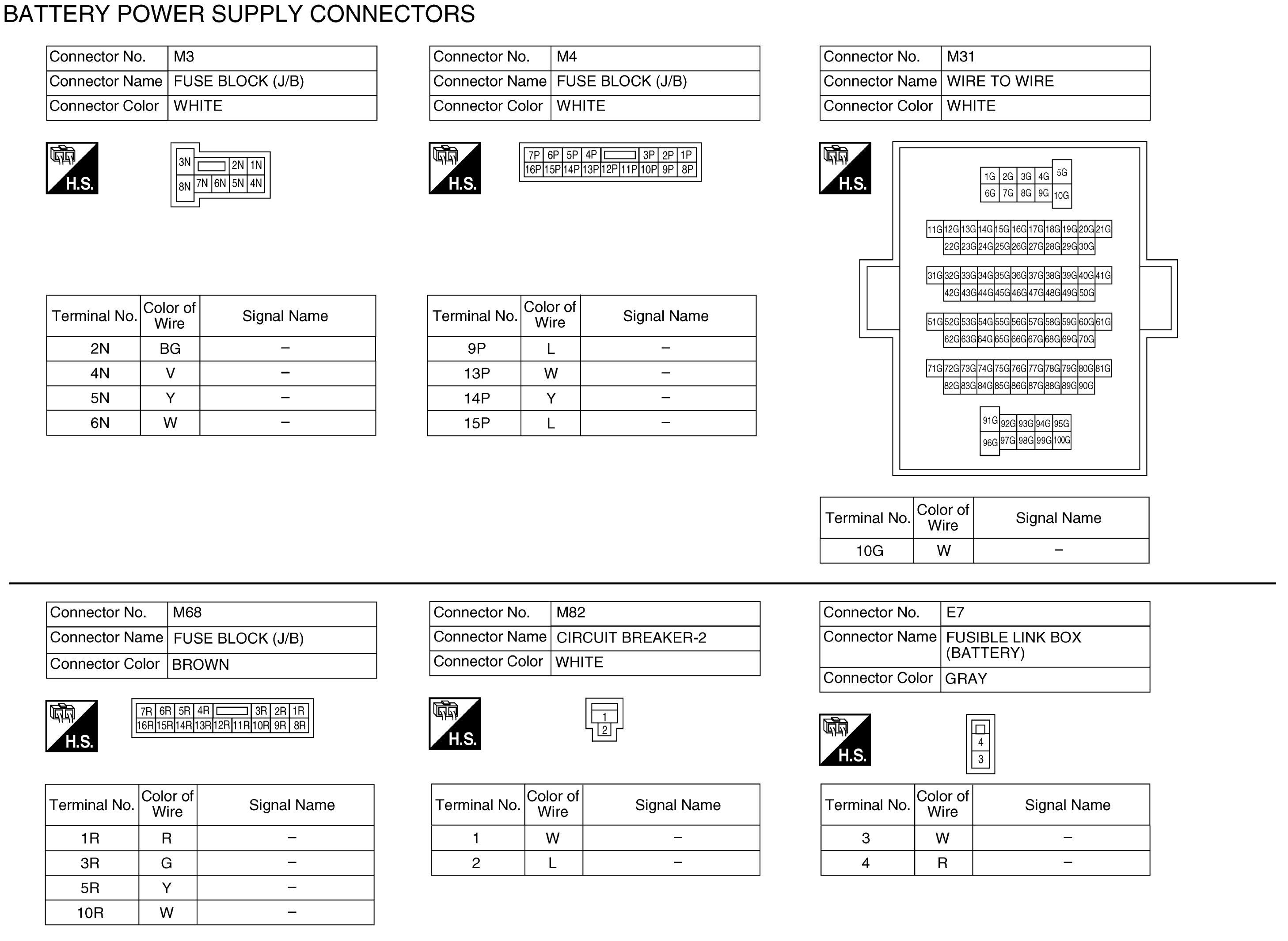

Fig 5: Battery Power Supply Connector End Views (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

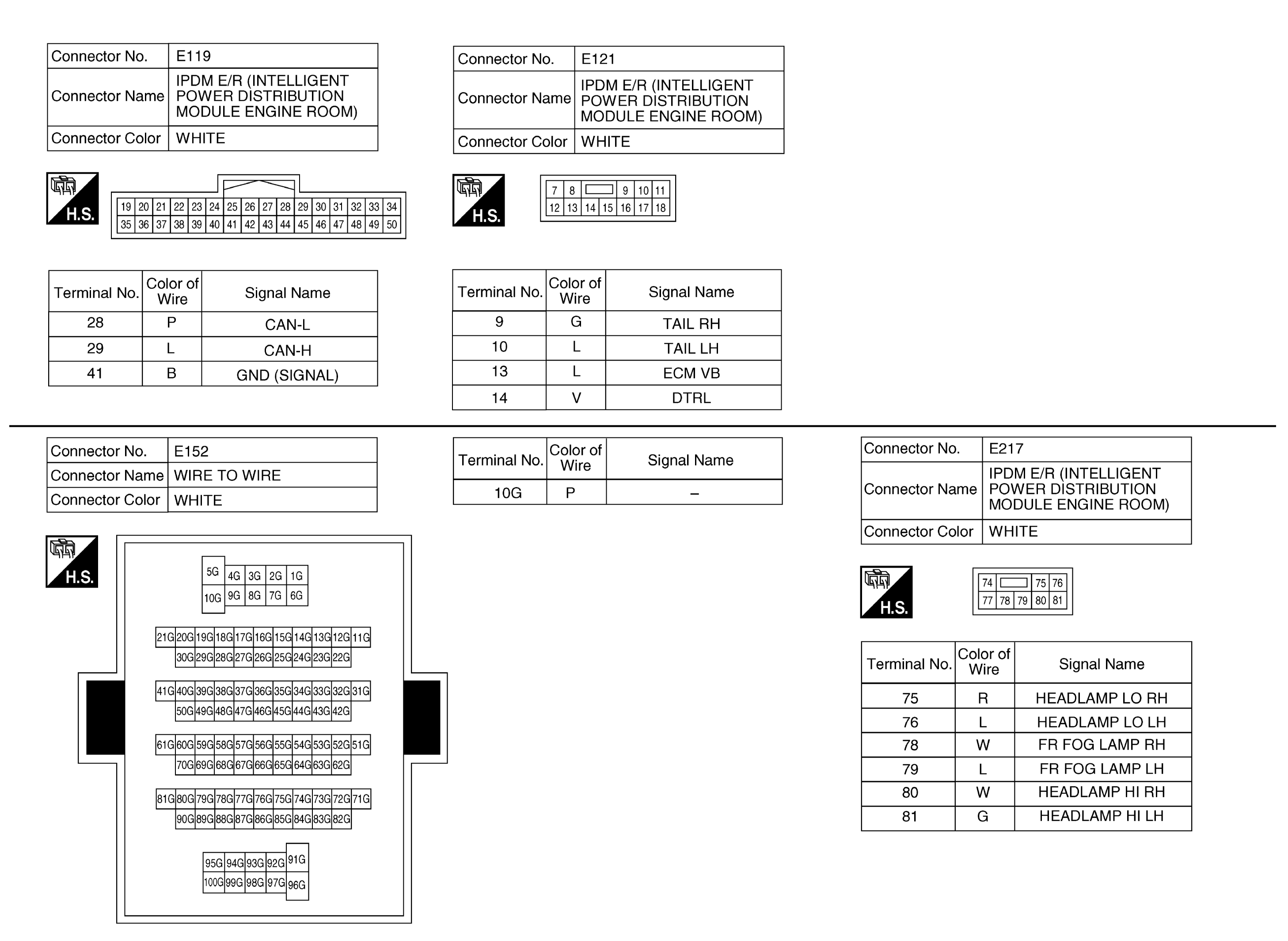

Fig 6: Battery Power Supply Connector End Views (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

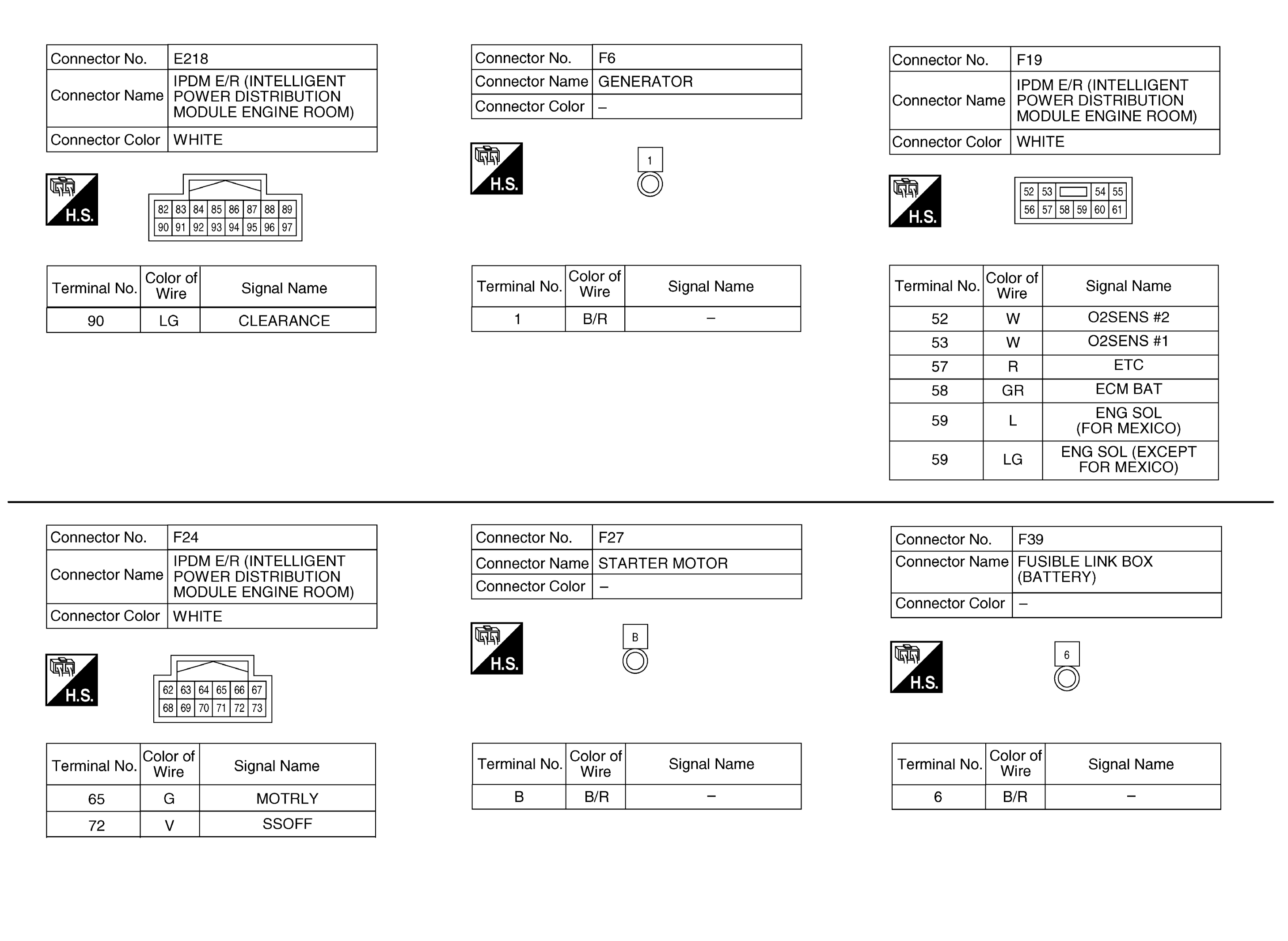

Fig 7: Battery Power Supply Connector End Views (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

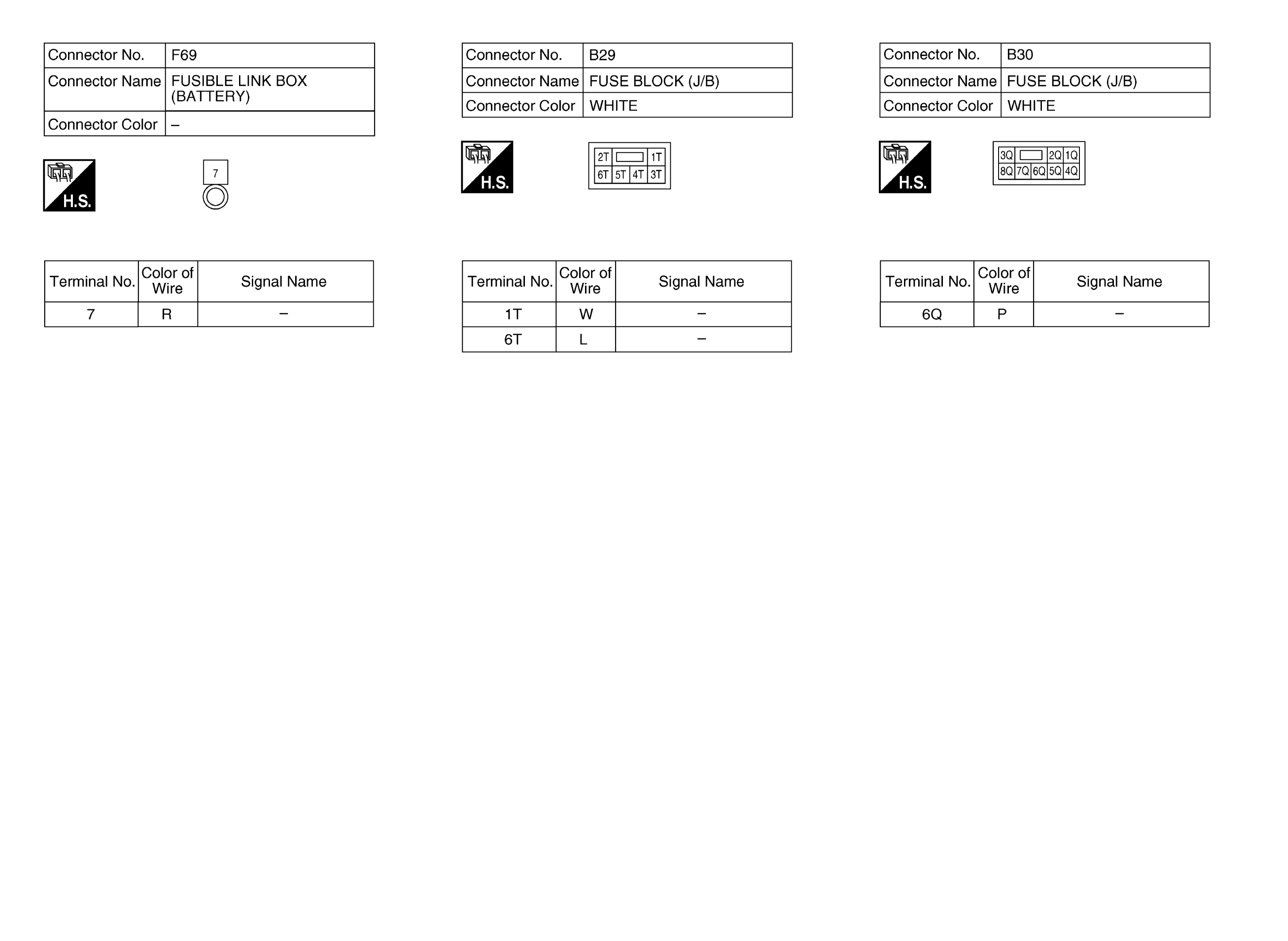

Fig 8: Battery Power Supply Connector End Views (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

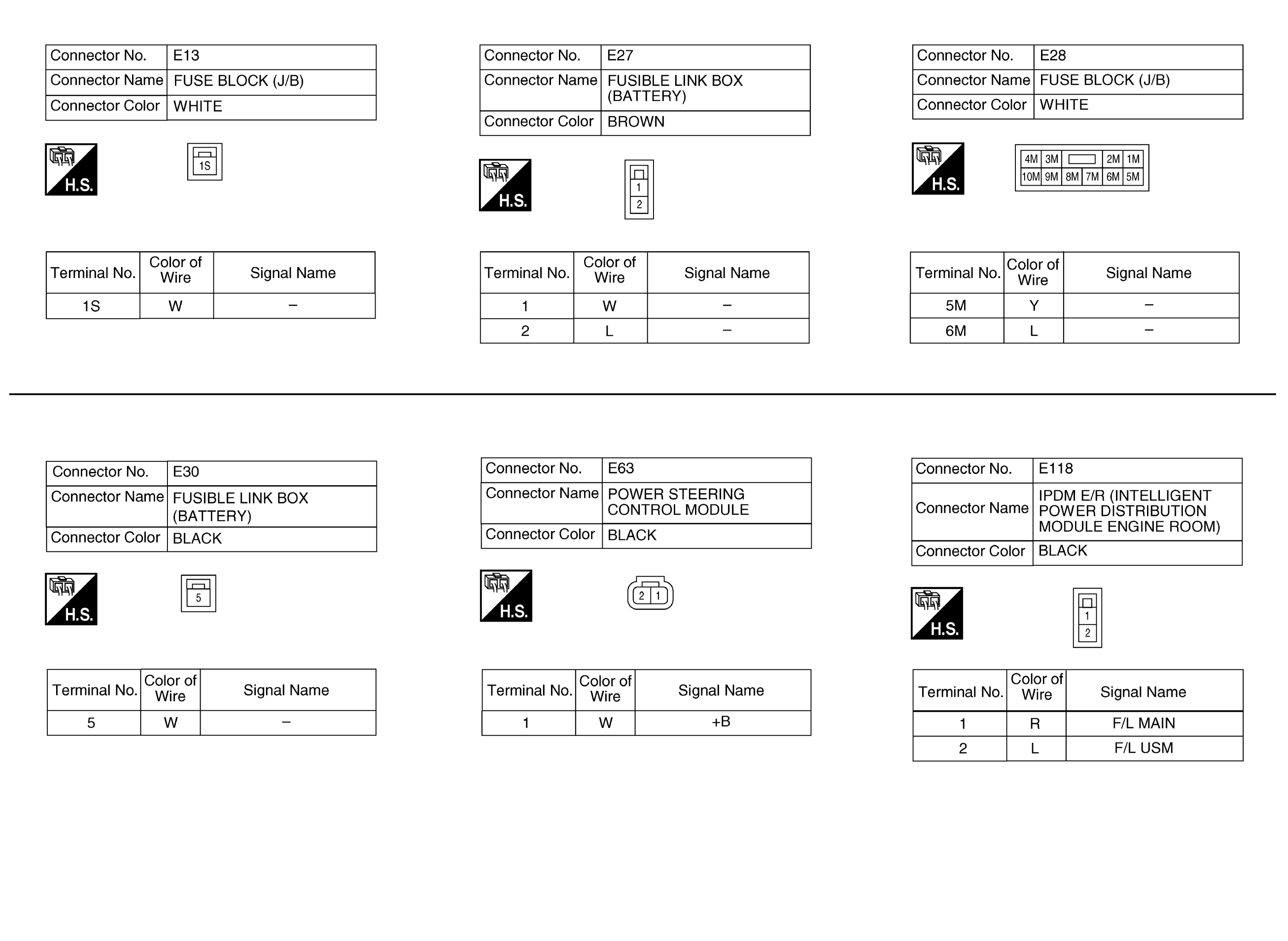

Fig 9: Battery Power Supply Connector End Views (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
